2.15

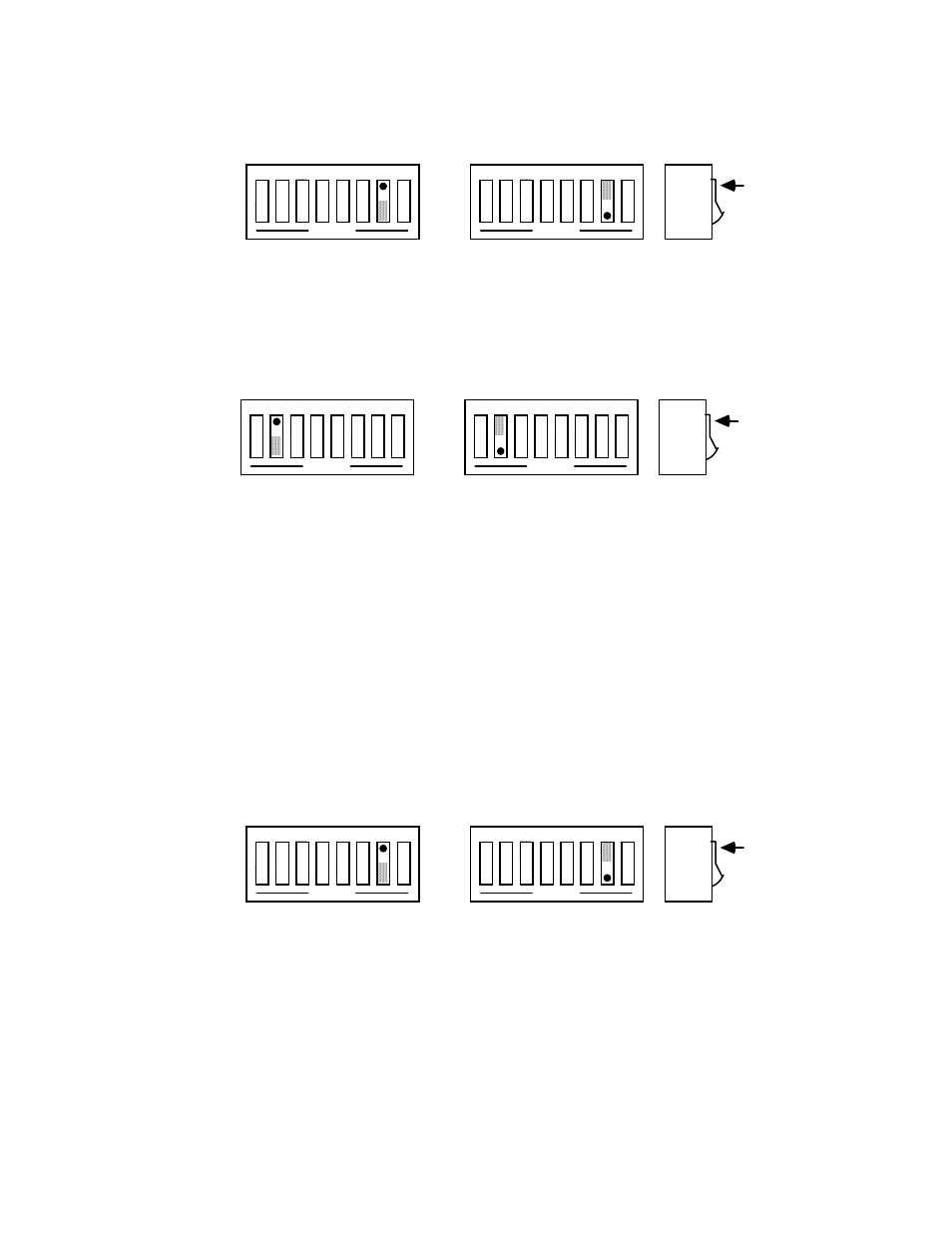

SW1 View for Controller Talk-Back on Terminator Selection
OPEN
1 2 3 4 5 6 7 8 DOT
Switch
Side
View
OPEN
1 2 3 4 5 6 7 8
Talk Back on
Terminator Disabled
Talk Back on
Terminator Enabled
SW2 View for Controller Talk-Back on Time-Out Selection
OPEN
1 2 3 4 5 6 7 8 DOT
Switch
Side
View
OPEN
1 2 3 4 5 6 7 8
Talk Back on
Time Out Disabled
Talk Back on
Time Out Enabled
2.7.2 Peripheral Features
In the IEEE Peripheral (IEEE 488 to RS-232 converter) mode, SW1-7
enables the interface to assert the SRQ IEEE bus interface line to indicate
that it has received the last switch selected serial terminator character from
the serial device.
SW1 View for Peripheral SRQ on Last Serial Terminator
OPEN
1 2 3 4 5 6 7 8 DOT
Switch
Side
View
OPEN
1 2 3 4 5 6 7 8
SRQ on Last
Terminator Disabled
SRQ on Last
Terminator Enabled
