To access WBK14’s programmable features:

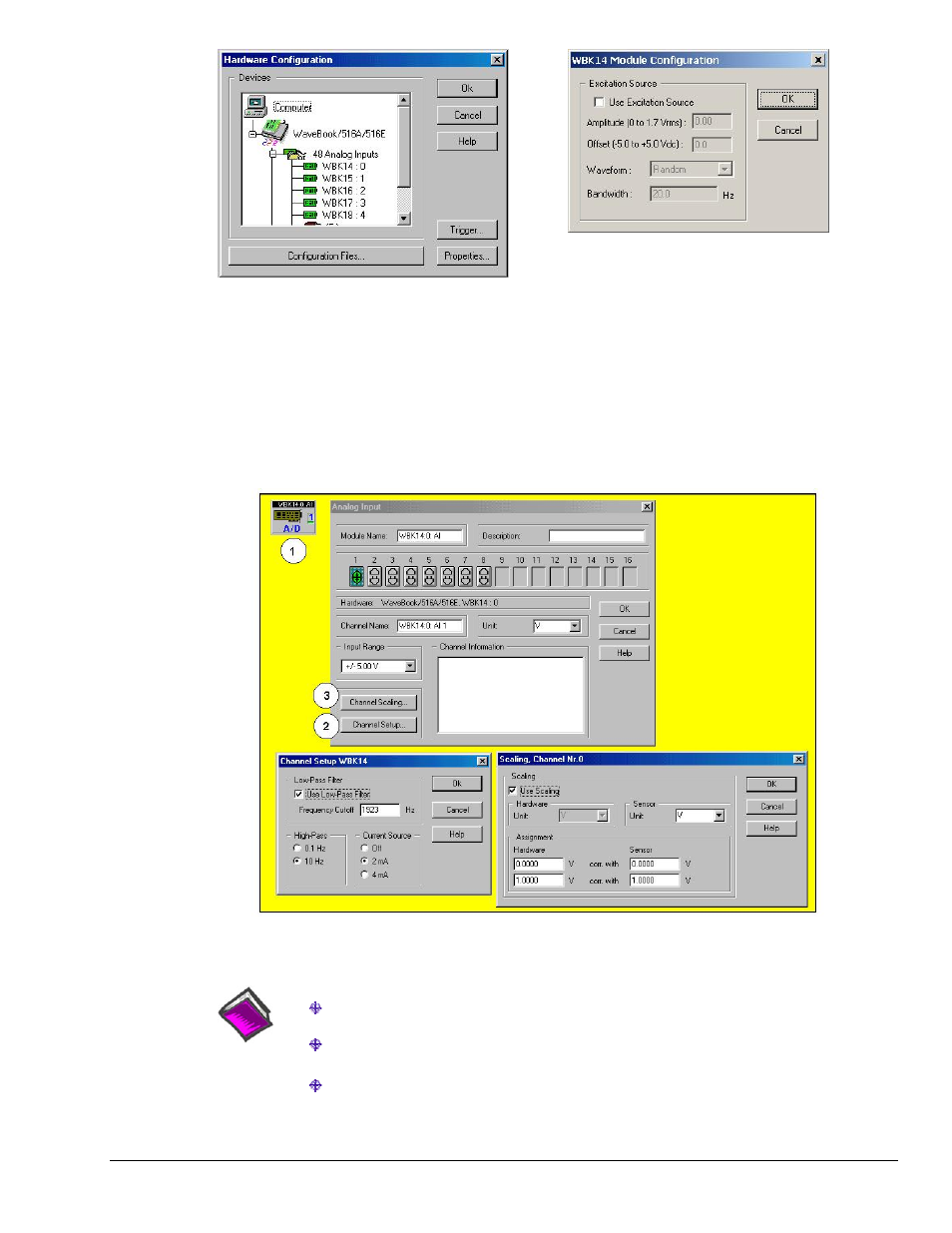

1. Double-click on the worksheet’s WBK14 icon. The Analog Input dialog box will appear.
2. On the Analog Input dialog box, click the <Channel Setup> button. A Channel Setup dialog box will
appear with Filter and Current Source options.
3. If you desire to set a hardware-to-sensor scaling factor, click the <Channel Scaling> button. This
feature provides a means of converting the incoming voltages to desired engineering units. Note that
this function can also be accomplished using DASYLab’s scaling module.
Configuration of the waveform output is handled in hardware setup.
Setting Analog Input Parameters for WBK14
Reference Notes:
The DASYLab Manual (p/n 472-0901) and DASYLab Help menu provide additional
information on DASYLAb.
The WBK Options Manual (p/n 489-0902) contains details on that module and should
be reviewed by all WBK14 users.
The WaveView PDF document includes software information that may be of benefit to
your DASYLab application. The WaveView document can be accessed via the <View
PDFs> button on the IOtech data acquisition CD.
