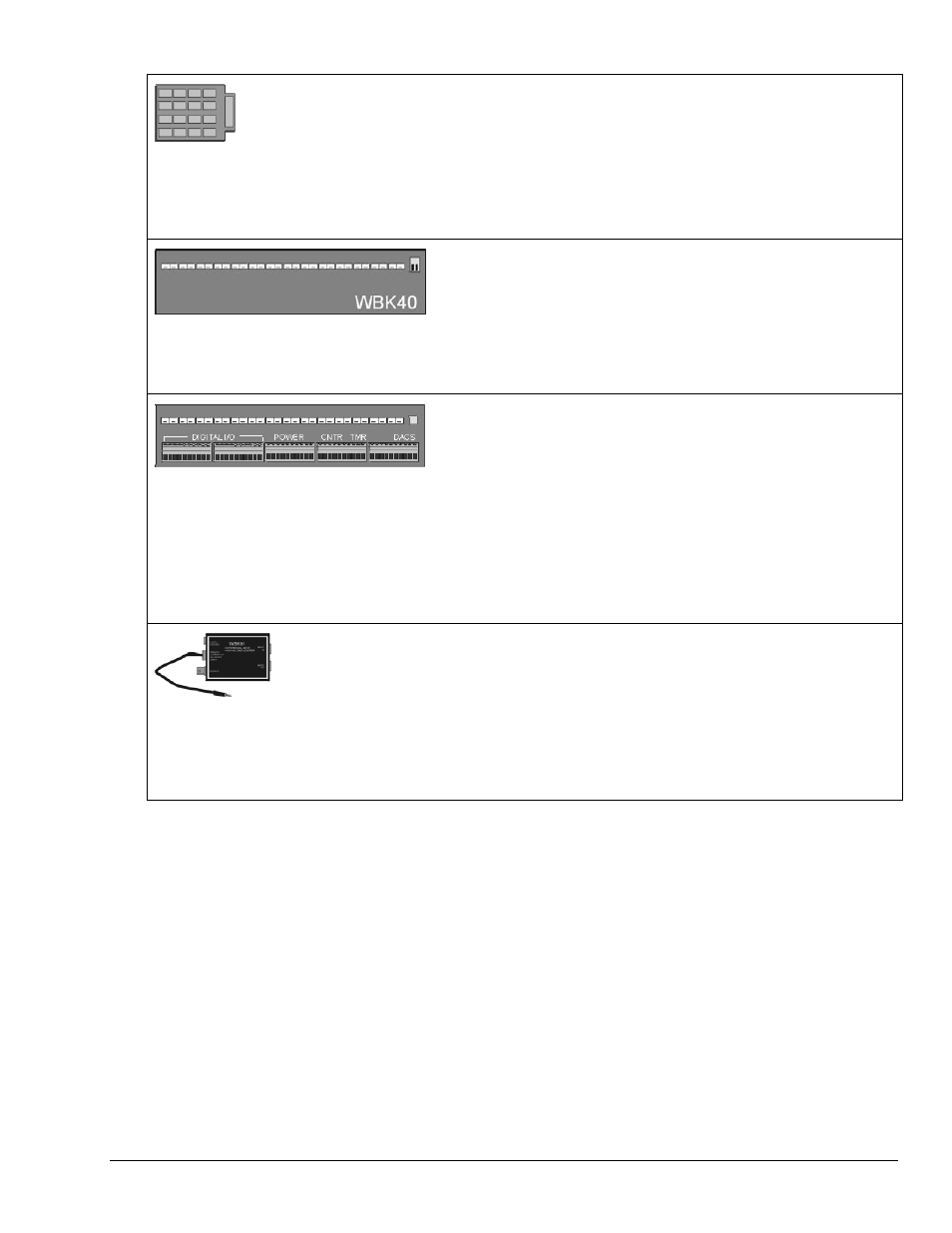

WBK30
WaveBook Memory Options
WBK30 is a DRAM-based memory board that installs inside a
WaveBook. There are three models of WBK30 available; each
significantly increases the capacity of a WaveBook's standard data
buffer of 64 K samples. Capacities are as follows:
WBK30/16 — 16 MB
WBK30/64 — 64 MB
WBK30/128 — 128 MB
Note: For WaveBook/516E the WBK30 option, if selected, must be
factory installed.
WBK40
Thermocouple Input Module
14 channels via Mini-T/C Connectors
The WBK40 attaches to any one of the three expansion ports on the
WaveBook/516E or the WBK25, and provides 14 thermocouple input
channels. The 14 built-in TC channels accept any type of
thermocouple, including types J, K, S, T, E, B, R, and N. Mini-TC
connections make it quick and easy to attach thermocouples. The
WBK40 can be expanded in 14 channel increments using the DBK84
TC expansion module. A total of 15 DBK84s can be attached to one
WBK40, for a total TC channel capacity of 224 channels.
WBK41
Multi-Function I/O Module
14 Thermocouple channels via Mini-T/C Connectors
40 Digital I/O Lines
4 Counter Inputs
2 Timer Outputs
(Optional) 4 Analog Channel Outputs
The WBK41 attaches to any one of the three expansion ports on the
WaveBook/516E or WBK25 and provides 14 thermocouple inputs, 40
digital I/O lines, 4 counter inputs, and 2 timer outputs. The WBK41
can also be supplied with an internal, 4-channel, 16-bit,
100-kHz analog output option.
The built-in TC channels on the WBK41 are accessed via mini-TC
connectors on the front panel. The counter/timer functions and 16
bits of digital I/O are accessed via removable front panel screw-
terminal connectors. Additional digital I/O and expansion connectors
are located at the rear of the WBK41.
The WBK41 can be easily expanded beyond its built-in channel
capacity. A maximum WBK41 system can include up to 224 TC input
channels, 272 digital I/O channels, 4 analog output channels,
4 counter input channels and 2 timer output channels.
WBK61 and WBK62
WBK61: High-Voltage Adapter with 200:1 Voltage
Divider (1 channel)
WBK62: High-Voltage Adapter with 20:1 Voltage
Divider (1 channel)
WBK61 and WBK62 are single-channel high-voltage adapters that
can be used with the WaveBook or with a WBK10A expansion
module. In addition, WBK61 and WBK62 can be used in conjunction
with WBK11A, WBK12A, and WBK13A cards.
WBK61 and WBK62 include safety-style banana-jacks for the high
and low inputs, and 60-inch (152 cm) cables with probe tips and
alligator clips for easy input connection.
WaveBook/512A, /516, /516A, /516E 897995 An Introduction to WaveBooks & WBKs 1-5
