Attaching Your Flatscreen TV
to the TV Mounting Plate
Do not lay your TV face down when attaching
the TV mounting plate. This can cause permanent
damage to your screen. Lean it against a wall or
other solid surface so it remains vertically upright.
The television should be unplugged before
threading any bolt or screw into the back panel.
Your mounting system features two sets of screws, M4x15
and M5x15. The M5x15 is the thicker of the two.
Locate the threaded inserts on your TV’s back panel.
1)
Note the two sets of mounting holes on your TV
2)
mounting plate. Determine which set aligns perfectly
with the four threaded inserts on your TV’s back panel.
Determine which set of screws is the correct length for
3)
your TV’s inserts. Test one of the screws to ensure it’s
the correct choice.
By hand, thread the screws through the mounting
4)
plate’s mounting holes into the four TV inserts.
With a Phillips screwdriver, tighten down the screws so
5)
the TV mounting plate is securely attached to the TV.
DO NOT over tighten bolts. This can damage
the wall plate or the surface of your wall.

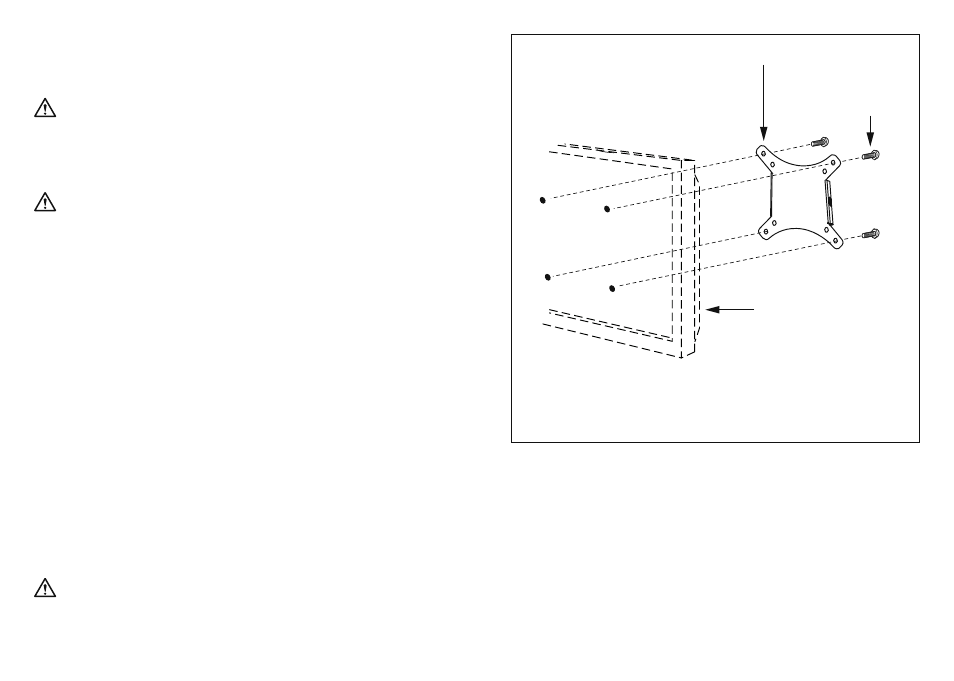

Flatscreen TV
Small Screws
Flatscreen Mounting Plate
WARNING
DO NOT OVER TIGHTEN SCREWS.
