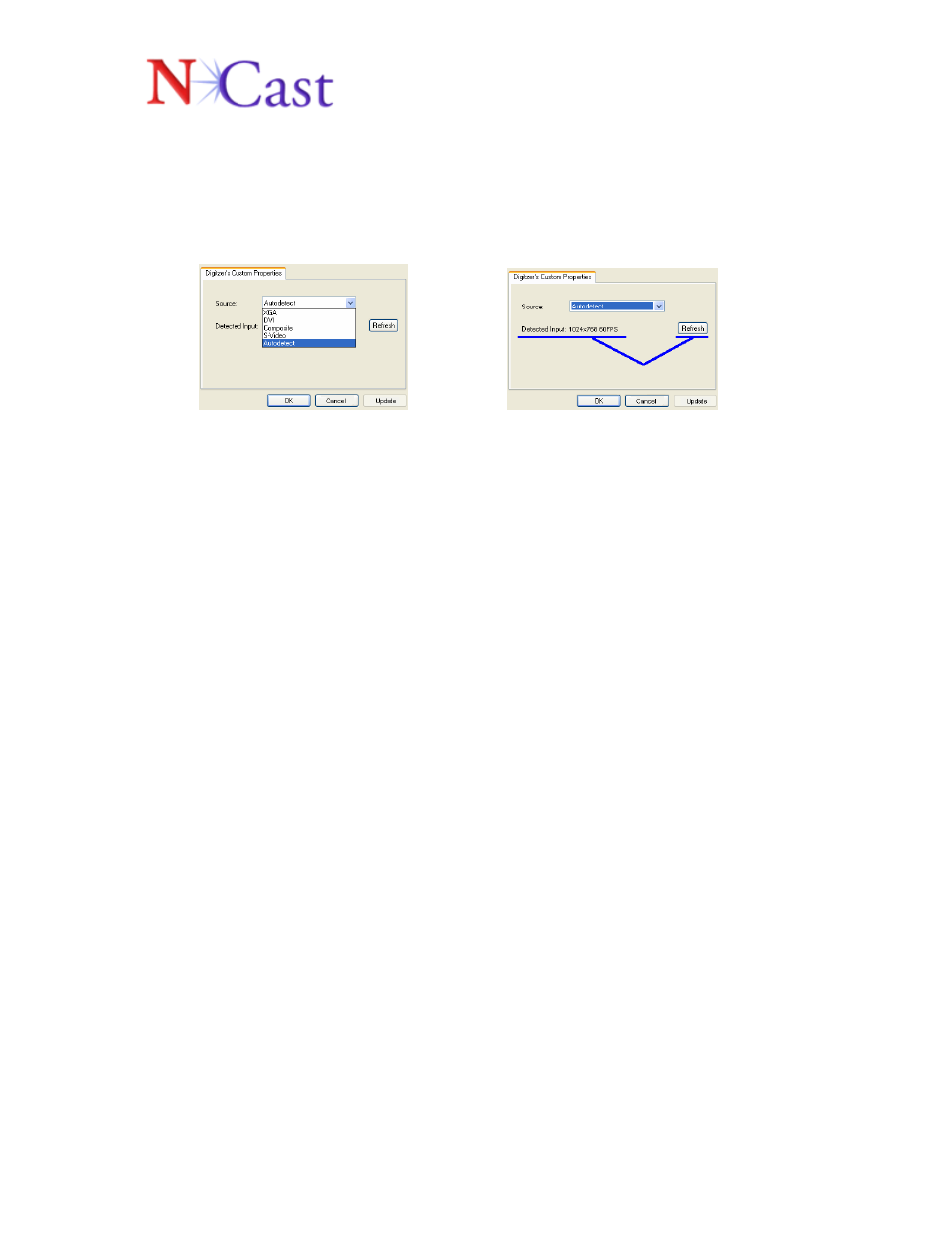

See the below screen shots of the Digitizer's Custom Property Page. (a)
Available inputs, (b) Click on the refresh button to read currently detected input
resolutions.
(a) (b)
Windows Driver API & Other Software
The Digitizer Capture Card API allows users to:
• Change selected input
• Display currently selected input
• Display currently connected resolution
The description of access to the API is outlined in “ncastwd1.idl” file, which
compiles with Microsoft IDL Compiler (MIDL). Two files are used to access this
functionality: “ncastwd1_i.c” and “ncastwd1_h.h” using Direct X.
Two sample programs are also available for download, the NCast Screen
Snatcher and the NCast Digitizer Control.
The NCast Screen Snatcher program displays a loopback picture from the card.
The NCast Digitizer Control program is an application that demonstrates how to
switch and check input from the outside of a running video capture program.
5. Installation
The Digitizer package should contain the following items:
• The Digitizer Capture Card
• Installation and Application Instruction Sheet
• RGB HD15 Cable
