3GHD-OE / 3GHD-OE-2 Rev. F
nevion.com | 15
6 Module status
The status of the module can be monitored in three ways.
1. GYDA System Controller (optional).
2. GPI at the rear of the sub-rack.
3. LED’s at the front of the sub-rack.
Of these three, the GPI and the LED’s are mounted on the module itself, whereas the GYDA
System Controller is a separate module giving detailed information on the card status.
6.1 GPI ALARM
– Module Status Outputs
These outputs can be used for wiring up alarms for third party control systems. The GPI
outputs are open collector outputs, sinking to ground when an alarm is triggered. The GPI
connector is shown in figures below.
Electrical Maximums for GPI outputs
Max current: 100mA
Max voltage: 30V
6.1.1 GPI connections
3GHD-OE-2 module GPI pinning:
Signal Name Pin # Mode
Status General error status for the module. Pin 1 Open Collector
This is normally
closed.
LOS1 Loss of signal on input 1. Pin 2 Open Collector
LOS2 Loss of signal on input 2. Pin 3 Open Collector
Ground 0V / gnd pin. Pin 8 0V.

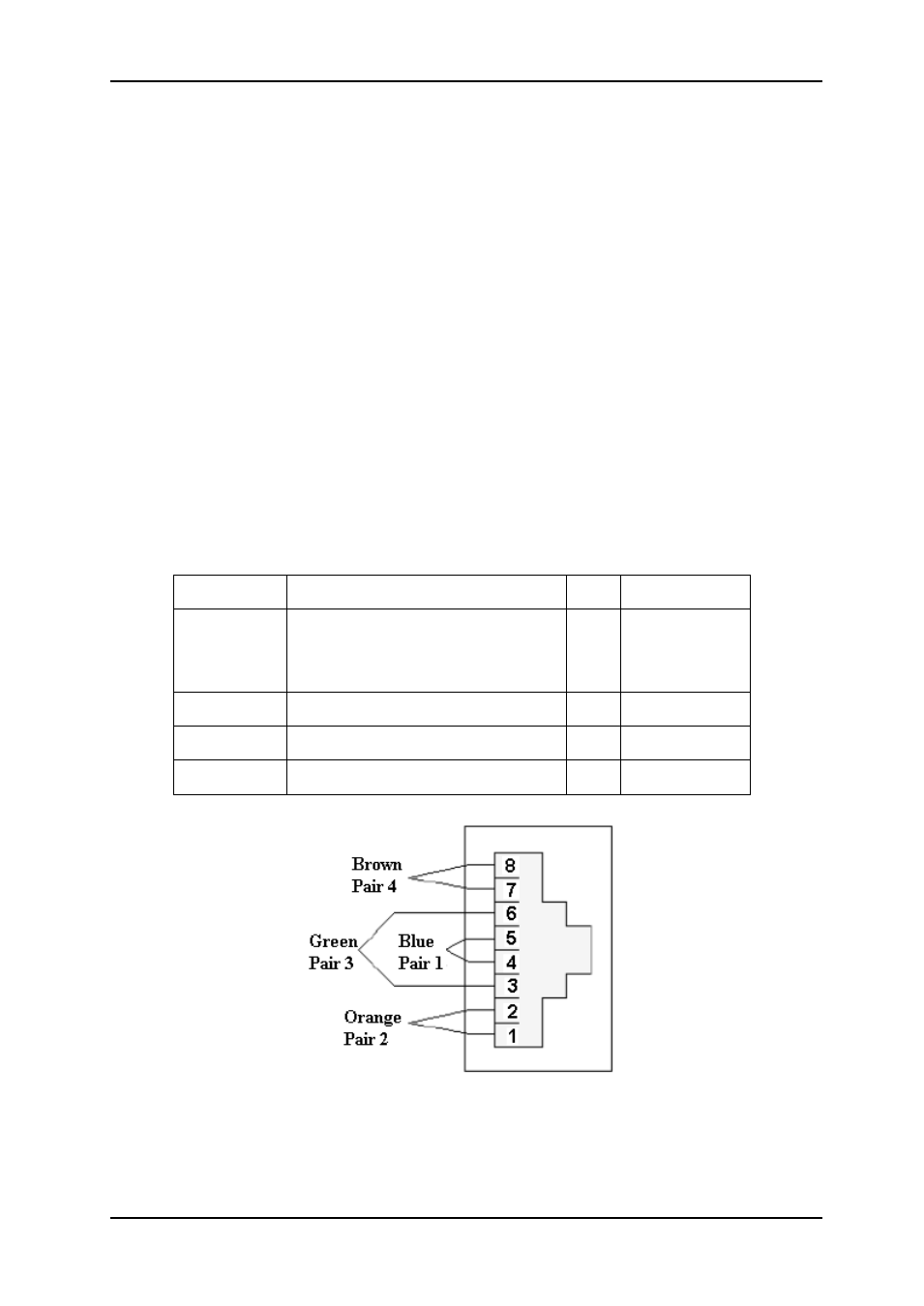

Figure 1GPI connector
