5
NOTE: The HY-33-A Fixture Wall may be installed directly onto fixture wall where access behind wall is available. If rear access is not available,
HY-33-A may be installed onto a Sloan Easy Access Wall Box Assembly. Parts for both installations are included with the HY-33-A Push Button.
If not already completed, bore a 1½” (38 mm) diameter hole in wall
for the push button sctuator. Refer to the rough-in drawings on pages
1 and 2.
A
Screw Threaded Rod into back of Push Button Actuator.
B
Insert threaded end of Push Button Actuator into Wall Flange and
install Nut. Tighten Nut securely.
C
Place Brass Insert into black Push Button. Concave side of Brass Insert
must face outward of Push Button.
D
Insert black Push Button into Button Flange. Place Spring against
Brass Insert of Push Button. Install Push Button Assembly onto Wall
Flange. Secure with Setscrew located on Button Flange.
E
If spacer sleeve is required, from behind wall, run plastic tubing through
sleeve (notched end of sleeve toward rear) and through wall. Spacer
sleeve is only required if wall thickness is less than 2” (51 mm).
F
Insert Push Button Assembly into the 1-1/2” (38 mm) wall hole.
H
Attach Plastic Tubing. See: Steps to Attach Plastic Tubing below.
G
From behind wall, slide spacer sleeve (if required) over threaded
rod and rest it against rear of wall. Slide retaining bar onto threaded
rod and into slots of sleeve (if required), or against wall if Sleeve is
not required. Install lockwasher and nut onto threaded rod. Tighten
securely. Carefully cut excess threaded rod, making certain to not
damage plastic tubing.
I
Insert threaded end of push button actuator through wall flange and
install nut. Tighten nut securely.
A
Mount wall flange and push button actuator to wall box cover plate
using flathead screws, lockwashers and nuts provided. Tighten
fasteners securely.
B
Place Brass Insert into black push button. Concave side of Brass Insert
must face outward of Push Button.
C
Insert black push button into button flange. Place spring against brass
Insert of push button. Install push button assembly onto wall flange.
secure with setscrew located on Button flange.
D
Attach plastic tubing. See: Steps to Attach Plastic Tubing (lower left
side of this page).
E
PUSH BUTTON
SPRING
NUT
WALL
WALL
FLANGE
PUSH BUTTON
ACTUATOR
PLASTIC TUBING
QUICK
CONNECT
FITTINGS (2)
THREADED
ROD
LOCKWASHER
RETAINING
BAR
NUT
BUTTON
FLANGE
SETSCREW
BRASS
INSERT
SPACER SLEEVE — USE ONLY IF
WALL THICKNESS IS LESS THAN
2” (51 mm)
PUSH
BUTTON
SPRING
NUT
WALL BOX COVER PLATE
WALL
FLANGE
PUSH
BUTTON
ACTUATOR
PLASTIC TUBING
QUICK
CONNECT
FITTINGS (2)
LOCKWASHERS (2)
NUTS (2)
BUTTON
FLANGE
SETSCREW
BRASS
INSERT
FLATHEAD SCREWS (2)
PUSH BUTTON
SPRING
NUT
WALL
FLANGE
PUSH BUTTON ACTUATOR
QUICK
CONNECT
FITTINGS (2)
COVER PLATE MOUNTING HOLE
CLIP
NUTS (2)
METAL
PARTITION
BUTTON
FLANGE
SETSCREW
FLATHEAD SCREWS (2)
COVER PLATE
BRASS INSERT
PLASTIC
TUBING
Using cover plate as a template, drill two 3/16” (5 mm) cover plate
mounting holes and cut opening for push button actuator into the metal
partition. Install clip nuts with threaded side toward back.
A
Insert threaded end of push button actuator through cover plate and
wall flange and install nut. Tighten nut securely.
B
Attach plastic tubing. See: Steps to attach plastic tubing (lower right
side of page).
C
Insert flathead Screws through wall flange and cover plate mounting
holes. Mount wall flange and cover plate to metal partition using
flathead screws provided. Tighten fasteners securely.
D
Place brass Insert into black push button. Concave side of brass insert
must face outward of push button.
E
Insert black push button into button flange. Place spring against brass
Insert of push button. Install Push Button assembly onto wall flange.
Secure with Setscrew located on Button flange.
F

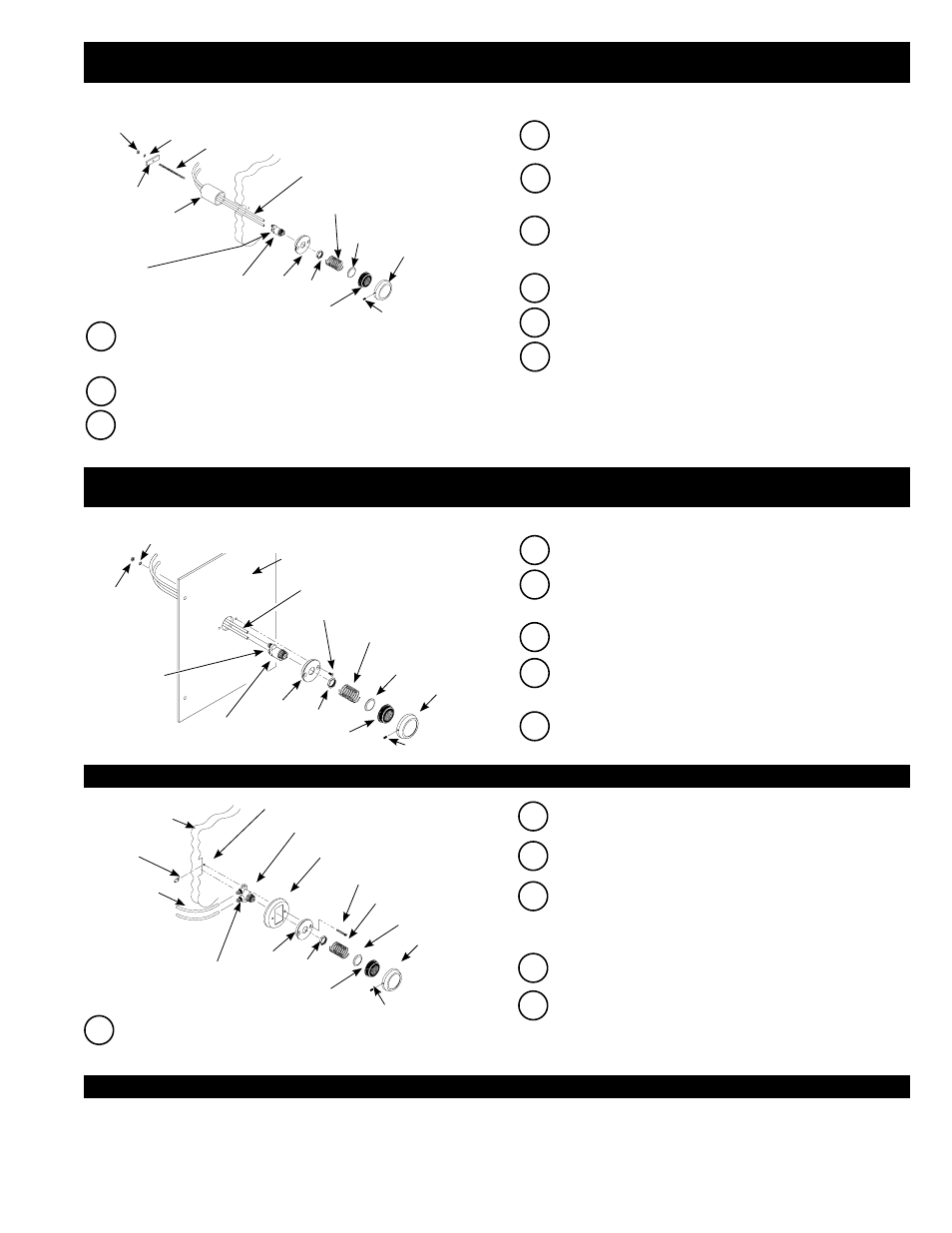

6B - INSTALL PUSH BUTTON ACTUATOR (HY-33-A FIXTURE WALL (FW VARIATION) PUSH BUTTON ACTUATOR
– WALL INSTALLATION)
6C - INSTALL PUSH BUTTON ACTUATOR (HY-33-A FIXTURE WALL (FW VARIATION) PUSH BUTTON ACTUATOR – WALL
BOX INSTALLATION)
6D - INSTALL PUSH BUTTON ACTUATOR (HY-49-A METAL PARTITION (MP VARIATION) PUSH BUTTON ACTUATOR)
STEPS TO ATTACH PLASTIC TUBING
NOTE: Sloan WB-1-A easy access wall box is designed for use with HY-33-A and HY-108-A Actuators.
1. The push button actuator is connected to the flushometer body by two plastic
tubes, marked “L” and “O”. Match markings on the tubes to markings on the
actuator.
2. Cut off excess plastic tubing with plastic tube cutter (PTC) leaving 3” to 4”
(76 to 102 mm) of slack when push button actuator is installed. If the “L” and
“O” markings will be cut off, remark the tubing to not lose identification.
3. Slide plastic tubing into its corresponding valve actuator fitting. Pull tubing to
make sure connection is secure. (Tubing can be removed by pressing on blue
connection button to release.)
