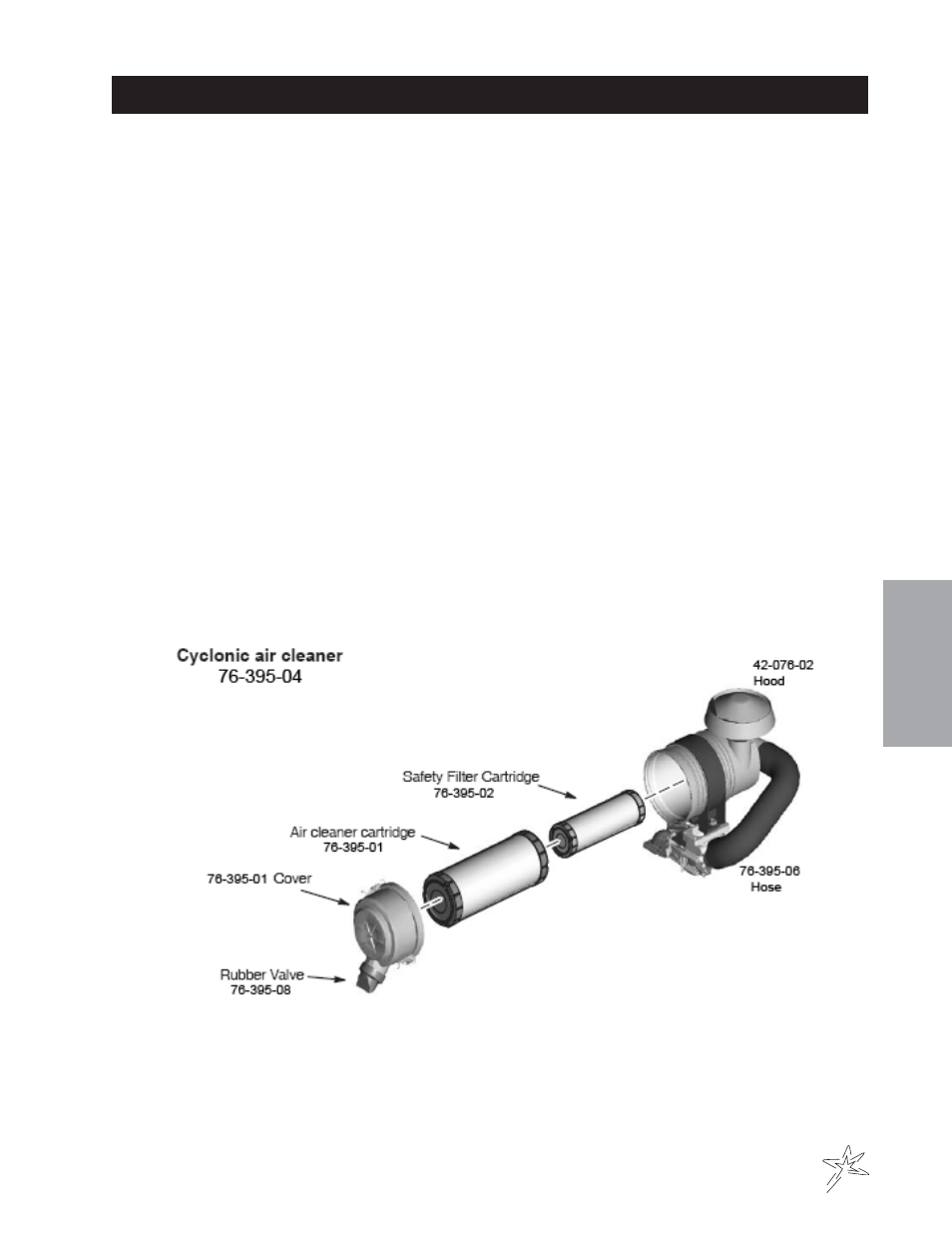

ENGINE, PUMPS AND EXHAUST PARTS LIST
REF# PART# DESCRIPTION QUANTITY
36 HB-12-13-350 Bolt 1 /
2
- 13 x 1 1 /
2
1
HMB-12-14 Machine Bushing 1 /
2
- 14GA 2
HN-12-13 Nut 1 /
2
- 13 1
37 15-799 Muffler Support 1
38 18-147 Hose Clamp 2
39 15-806 Tailpipe Assembly 1
HB-516-18-100 Bolt 5 /
16
- 18 x 1 4
HBFL-516-18-075 Bolt 5 /
16
- 18 x 3 /
4
4
HNFL-516-18 Flange Whiz Lock Nut 5 /
16
- 18 8
40 43-122 Muffler 1
41 15-805 Rear Engine Plate 1
42 HB-12-13-150 Bolt 1 /
2
- 13 x 1 1 /
2
2
HW-12 Washer 1 /
2
2
HNFL-12-13 Flange Whiz Lock Nut 1 /
2
- 13 2
43 50-111 Muffler Clamp 1
44 15-809 Exhaust Elbow 1
45 15-791 Engine B&S 954T Turbo Diesel 1
21-161 Wire Block 1
46 HBM-6-1-16 Metric Hex Bolt M6 -1 x 16 4
HWLM-6 Metric Lockwasher 4
47 15-802 Rear Cooler Bracket 1
48 15-624 Oil Cooler 1
