As DSP-B has no connection to the ROM, the programming must be done using
DSP-A. To confirm that the ROM has been programmed correctly, you should run the
confidence test in the BoardInfo utility (SMT6300).
Comports
Both DSP-A and DSP-B have six Comports, numbered 0 to 5. Each DSP has three

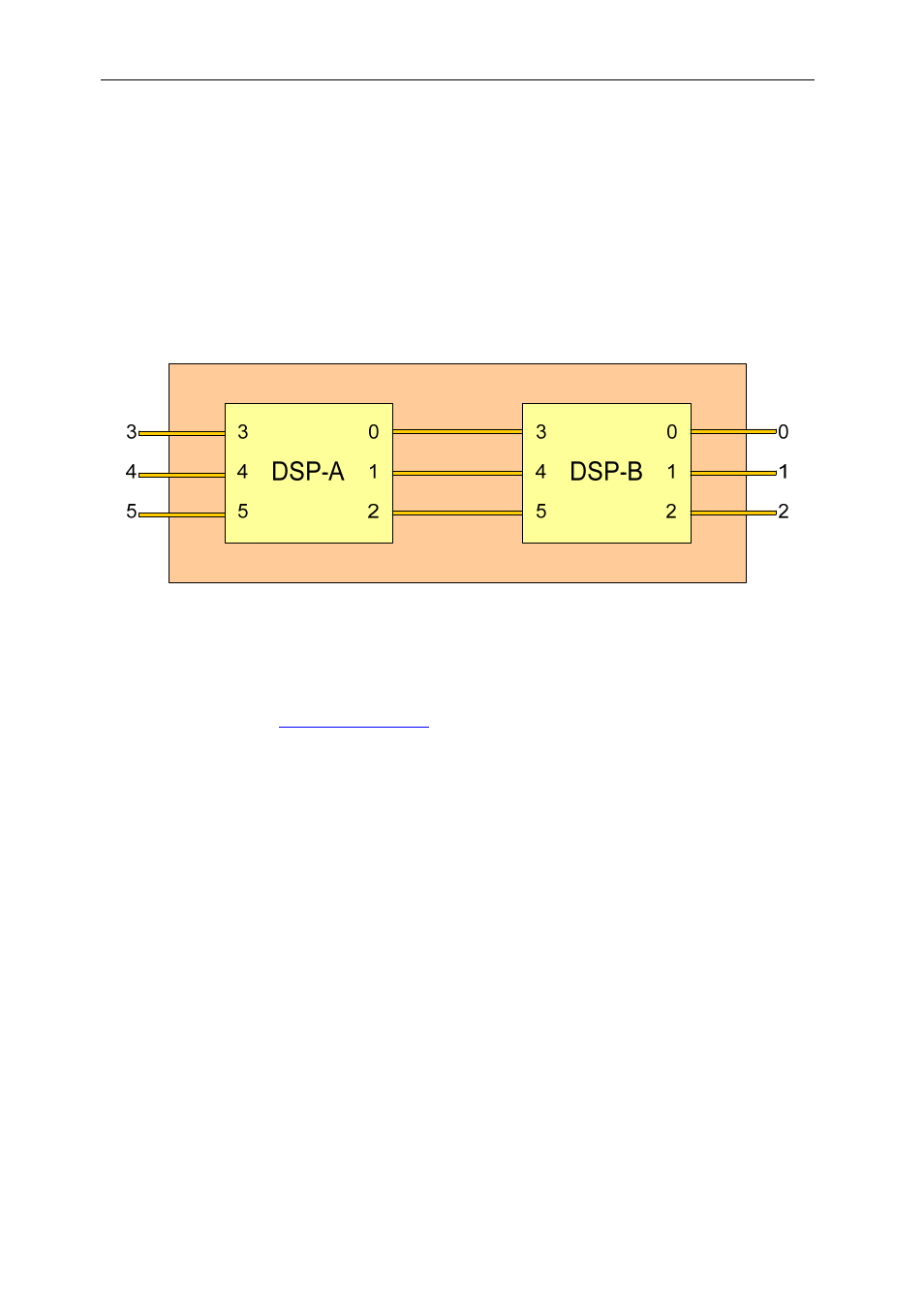

Comports connected to the other DSP and three connected to the TIM connectors,
as shown in the following diagram:
The addresses of the Comport registers are shown in the Virtex Memory Map , and
are described in the SMT6400 help file .
