Connection to a XT5 converter

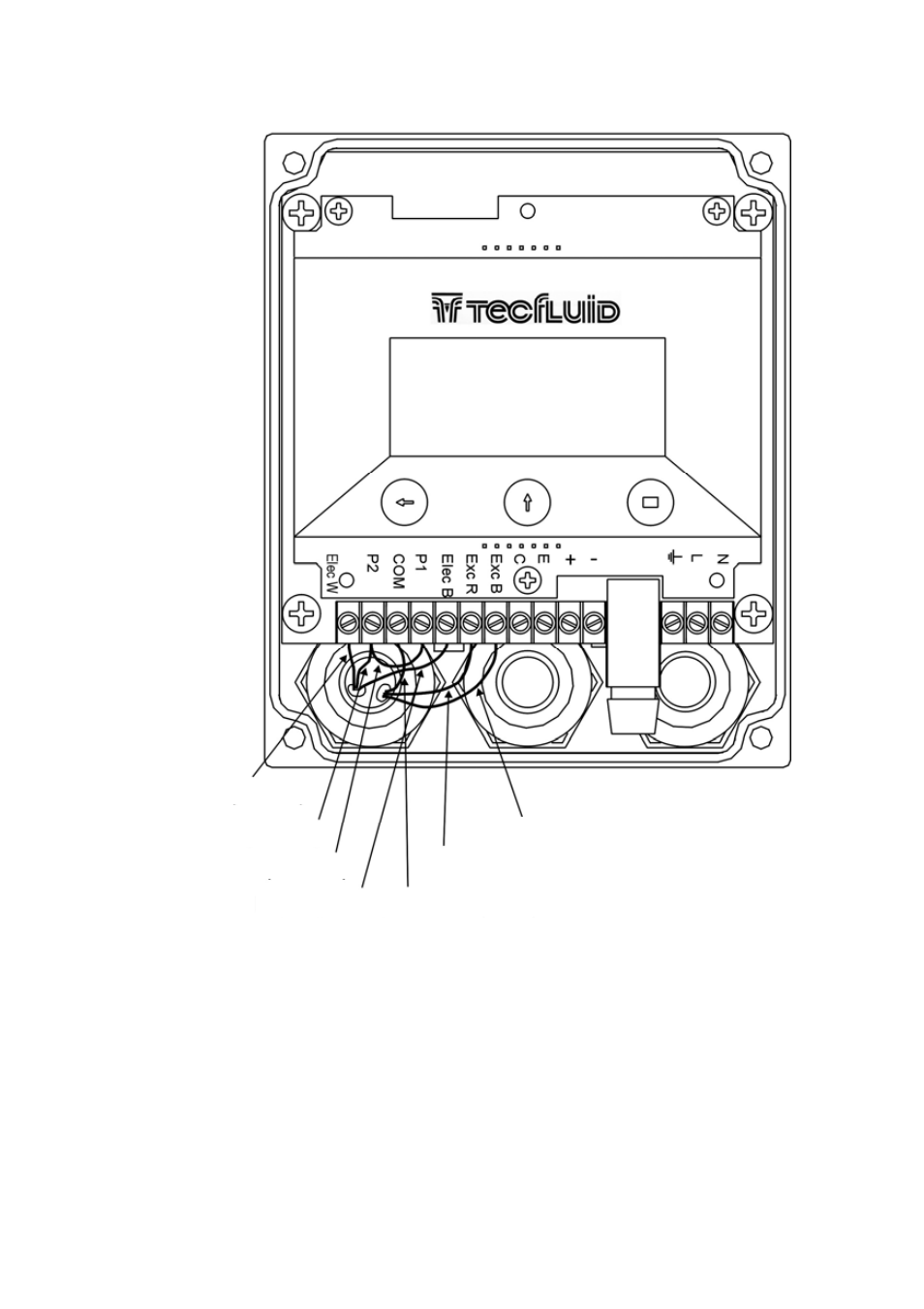

The Pair 1 cables are connected to terminals Exc B, Exc R & COM for the coil excitation. The Pair
2 cables for electrode connection are connected to terminals Elec W, Elec B, P1 & P2. Terminals
P1 & P2 must be connected together.
6
White (Elec W)
Screen (P1 or P2)
Shortcircuit (P1 to P2)
Black (Elec B)
Black (Exc B)
Red (Exc R)
Screen (COM)
Electrodes Coil Excitation
Pair 2 Pair 1
