4 General Front Panel Usage
4.1 Enter the Main Root Menus

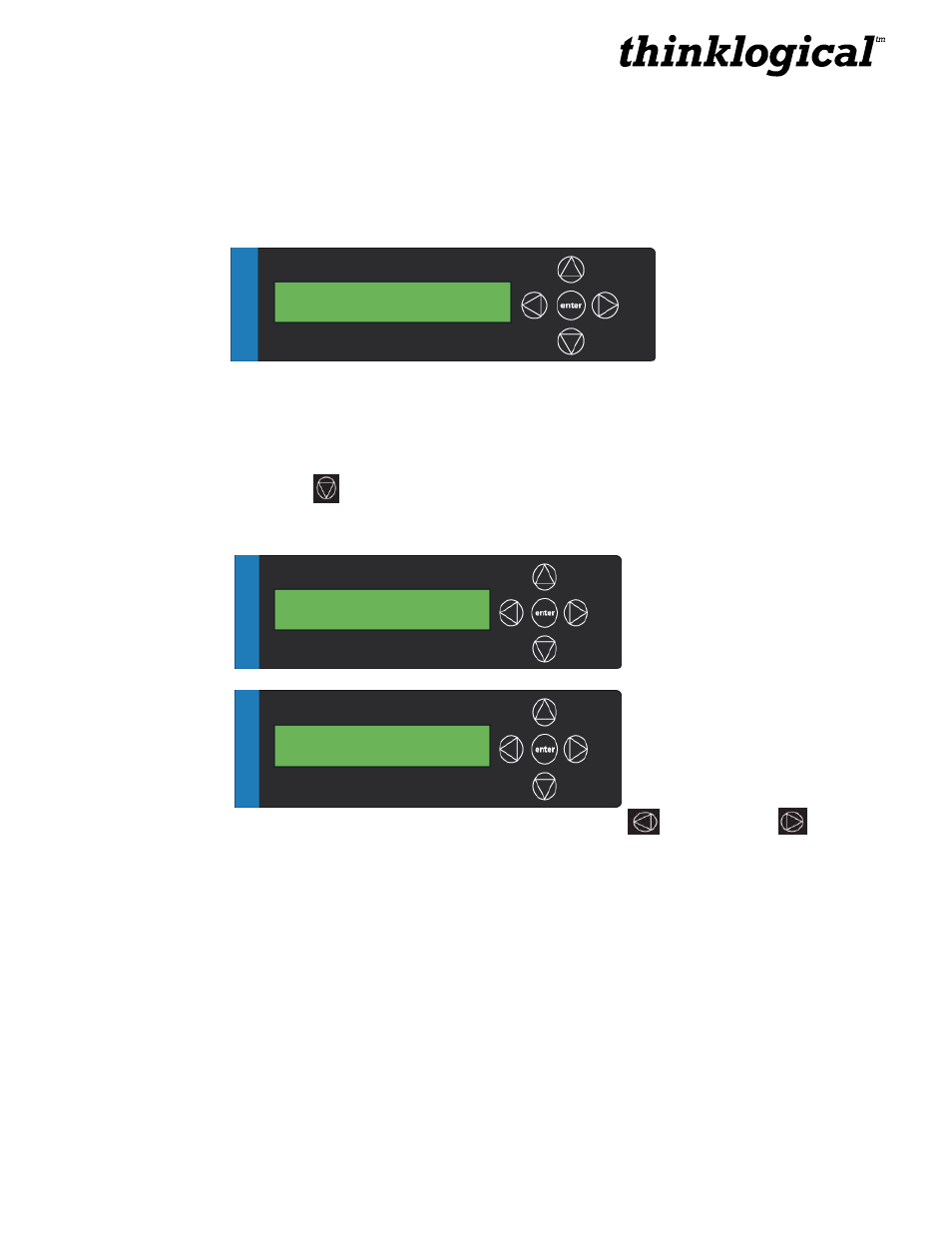

Once the system is powered up, the initial chassis display is shown as follows:
The company name is listed on the first line of the display. The model and software version
(VXX.XX) of the unit is displayed on the second line. In the front panel menus, the word card is used
in place of module, but refers to the same devices described elsewhere throughout this document.
By pressing the down arrow the Q-4300 Chassis allows you to enter into the main menu. There is
a separate root menu for each of the four cards (modules). The main root menu items are displayed
with an *. They are as follows:
Once a *root menu item is displayed, you can then use the left arrow or right arrow to review
settings or make changes, if allowed. The Q-4300 menu functionality is as follows:
*System
Thinklogical
Q4300 RACK CTRL
VXX.XX
*CARD 1
