Model 572AC SEVERMASTER®
92-0660 : Rev. 080423
OPERATION
Read the operating instruction carefully before attempting to operate the Model 572AC
SEVERMASTER®.
Tool life may be severely shortened, unless chips and/or other debris that have been
deposited on the cutting head during the machining operation are removed.
INSERTING THE COLLET
Select the desired size Collet (Reference the 'Collets' section) for the pipe or tube to be
worked on.
Raise the handle to release pressure on the check nut.
Rotate the check nut until the eyebolt can be raised out of the slot and then the hinge
bracket may be rotated back and down.
Remove the pusher sleeve from the main housing.
Remove the Collet, if there is one, from the inside of the main housing.

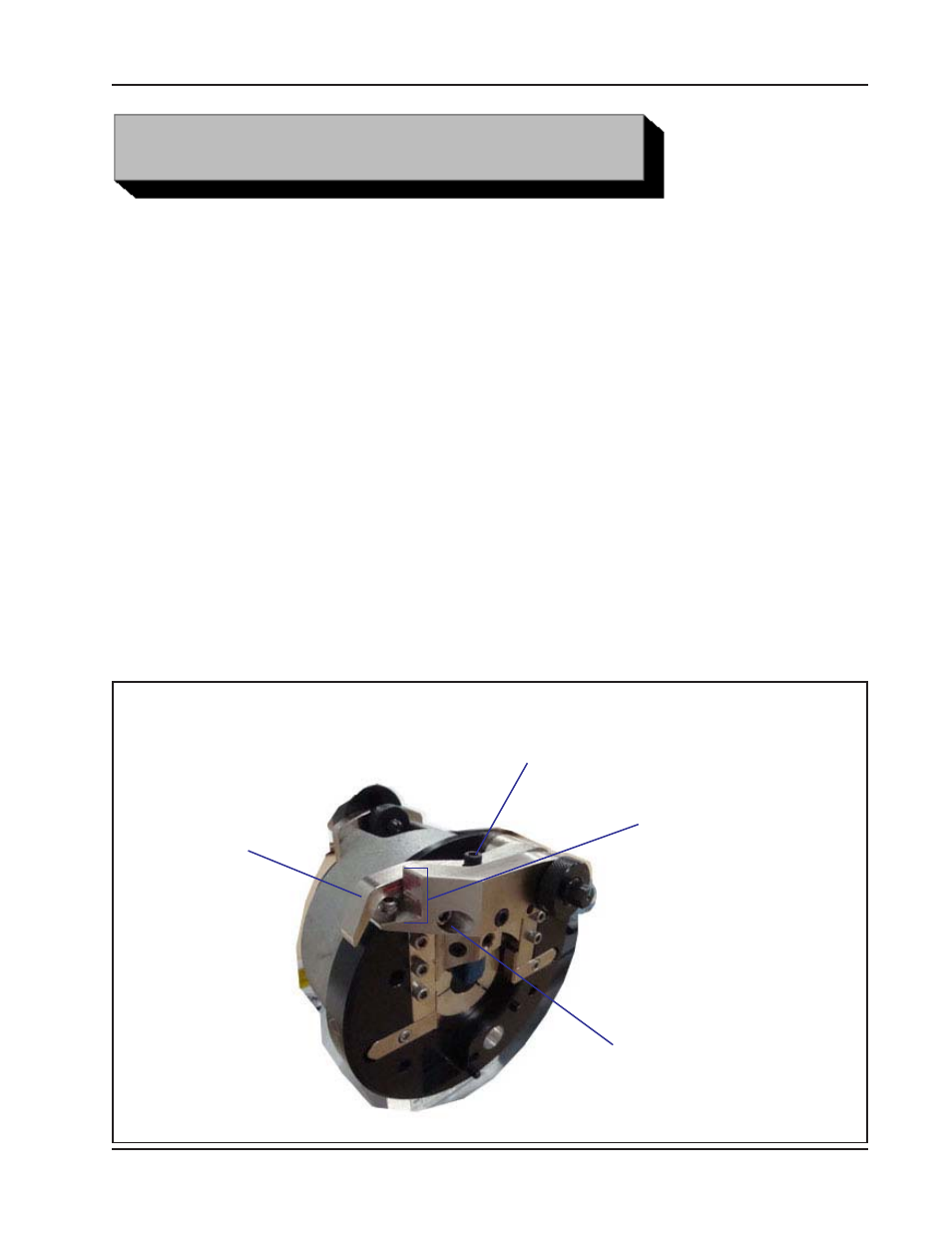

Adjusting Feed
Feed Adjustment Screw
Feed Lock Screw
Feed Arm
Graduation Marks
