Check the Housing cavity for chips, dirt and/or corrosion.
To reassemble, wipe clean all of the Bearing surfaces and clean the Housing cavity.
Regrease the Gear using a lubricant approved by TRI TOOL Inc. Refer to the
Lubricant Recommendations located later in this section.

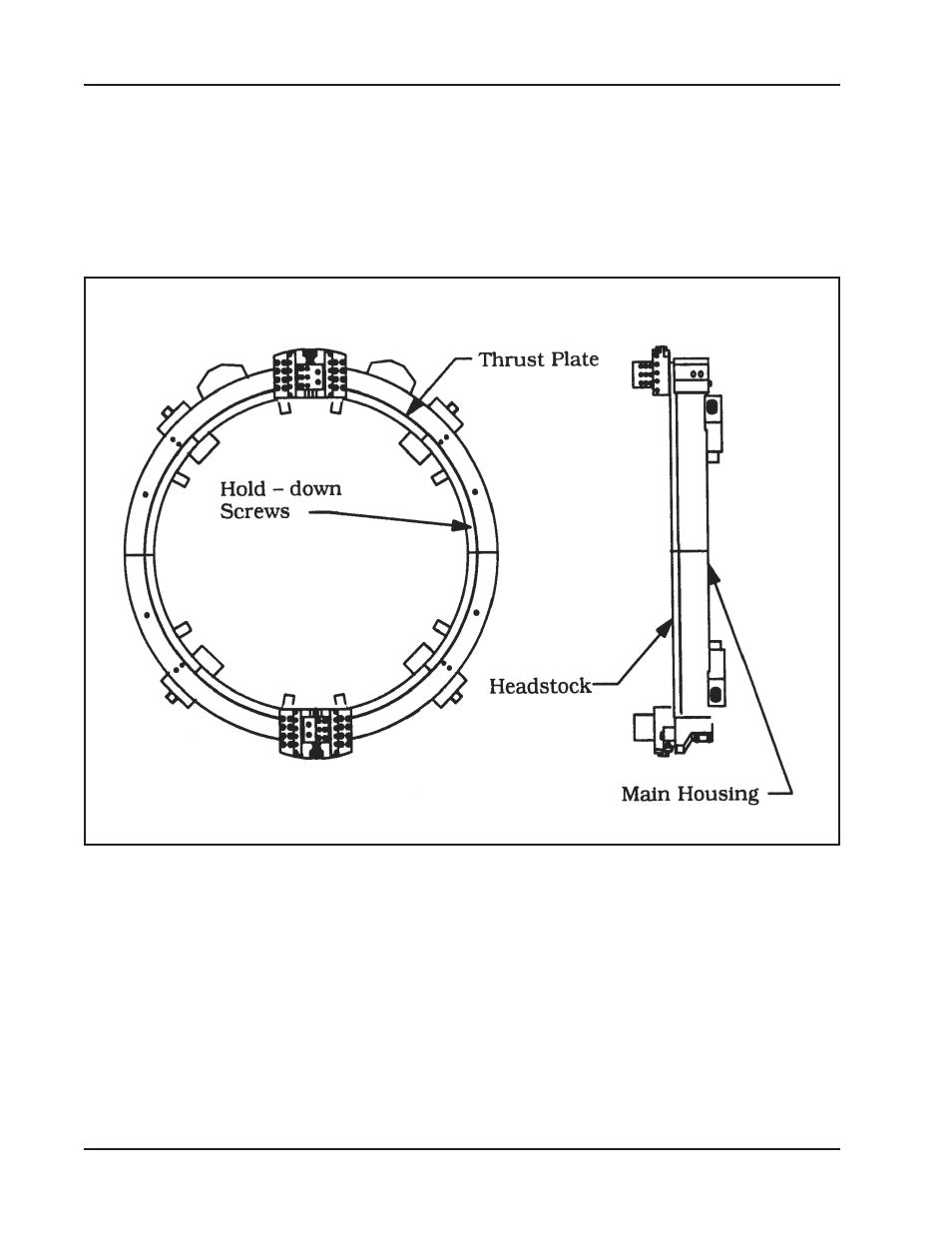

Clamshell Nomenclature
Place the Headstock carefully back into the Housing.
Bolt the Front Thrust Plates back into place.
If the bearing pre-load was properly adjusted before being disassembled, then it will
still be adjusted when reassembled.
DRIVE GEAR AND MAIN GEAR LUBRICATION
Remove the Drive Housings.
Inspect both Drive and Main Gears for chips or burrs and clean as required.
