Hardware Manual

2.

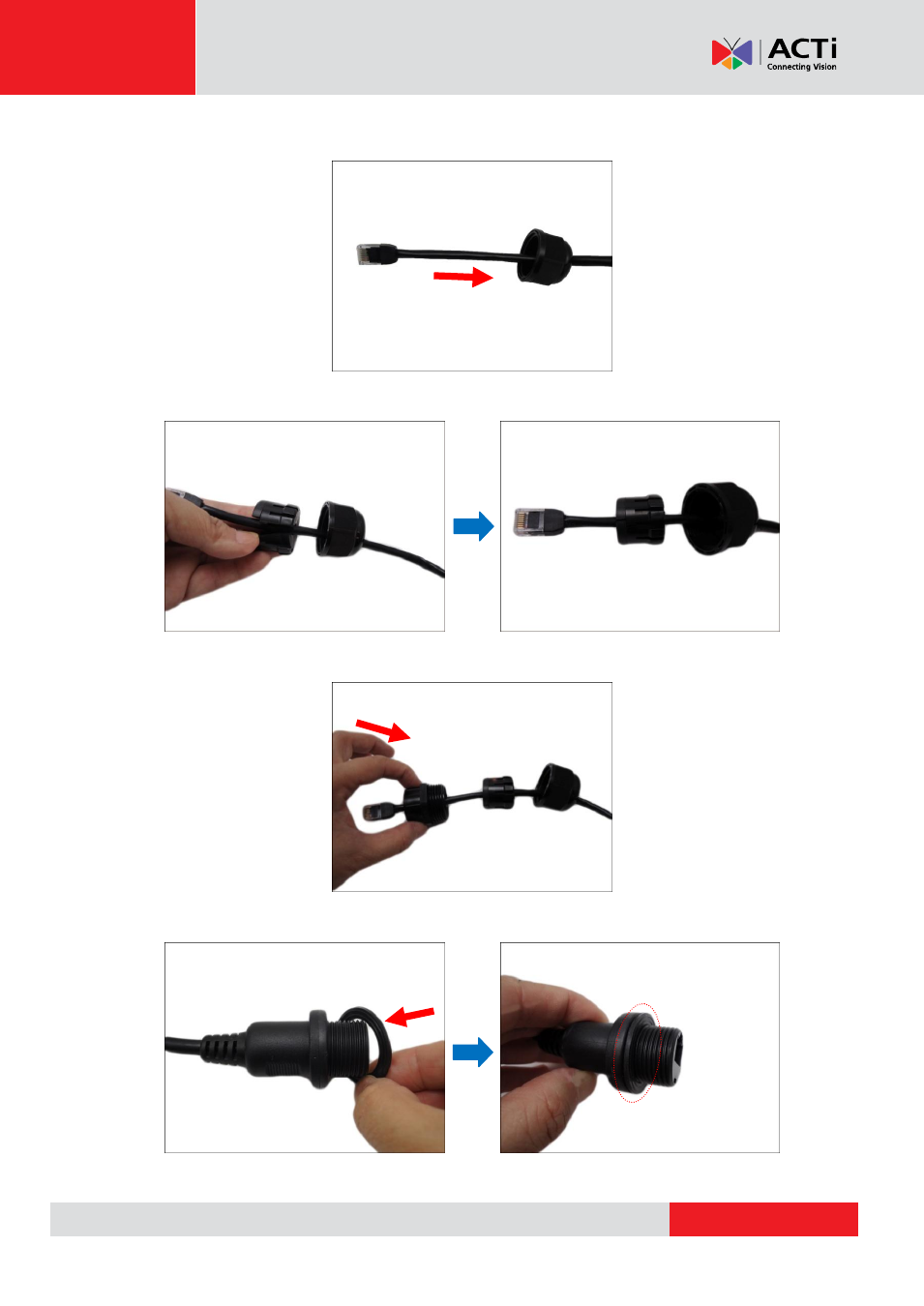

Insert the clamping nut into the Ethernet cable.

3.

Insert the sealing insert with claw.

4.

Insert the gland body into the Ethernet cable.

5.

On the “pigtail” side, insert the washer into the “pigtail”.
