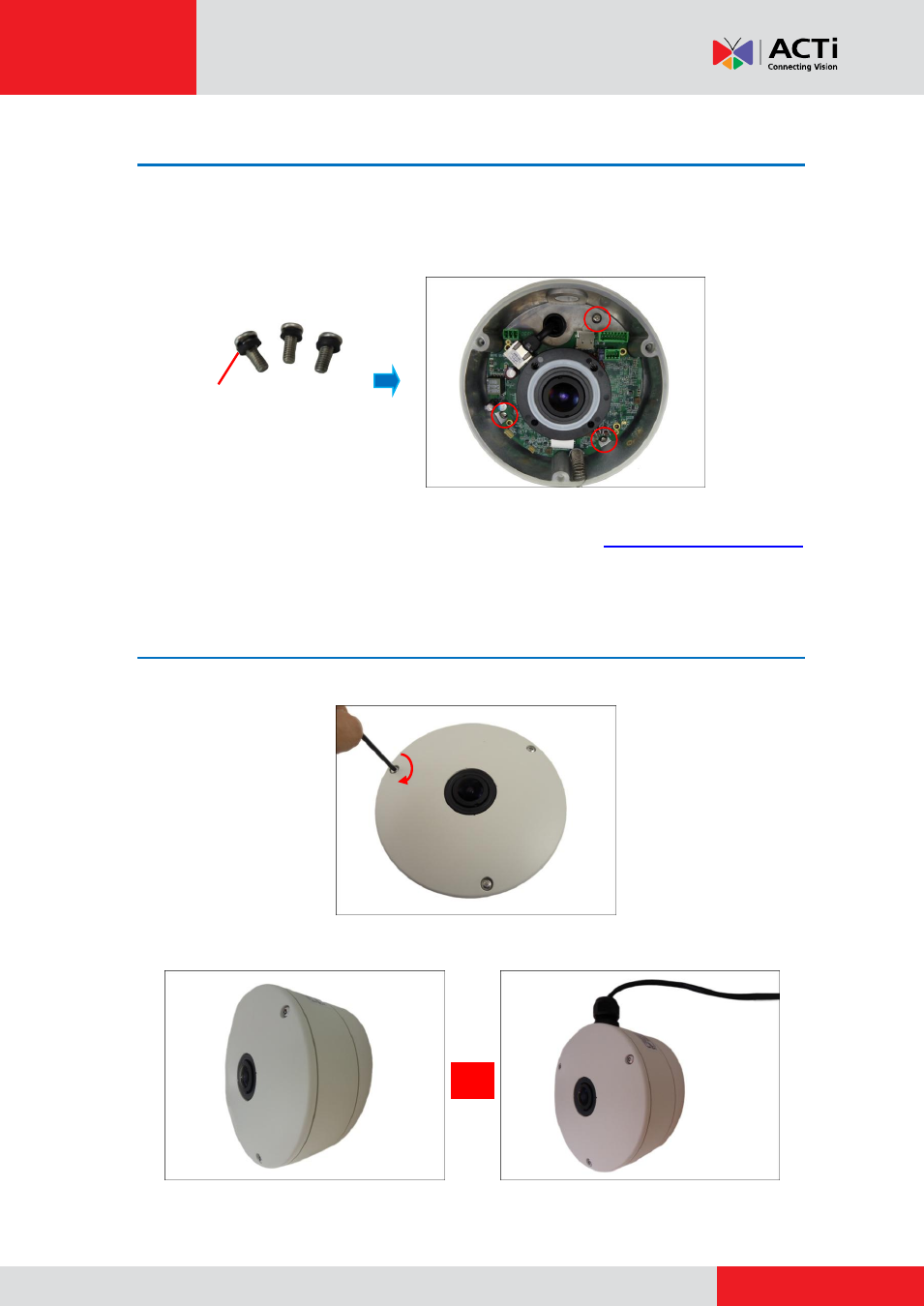

Step 5: Install the Camera to the Tilted Mount
1. If necessary, insert a memory card into the card slot of the camera.
2. Attach the camera to the tilted mount using the three (3) screws supplied in the tilted mount
package.
NOTE: Make sure the mounting screws have rubber rings. If the screws you received do not
have rubber rings, please contact your local sales agents or our Customer Help Desk (CHD)
for support.
Step 6: Close the Cover
Tighten the three (3) screws to secure the cover.
Final installation looks like the illustration below.
Cable Passes Through the Wall Cables Goes Along the Wall
Rubber Ring
or
