Setup
16 3A0994E

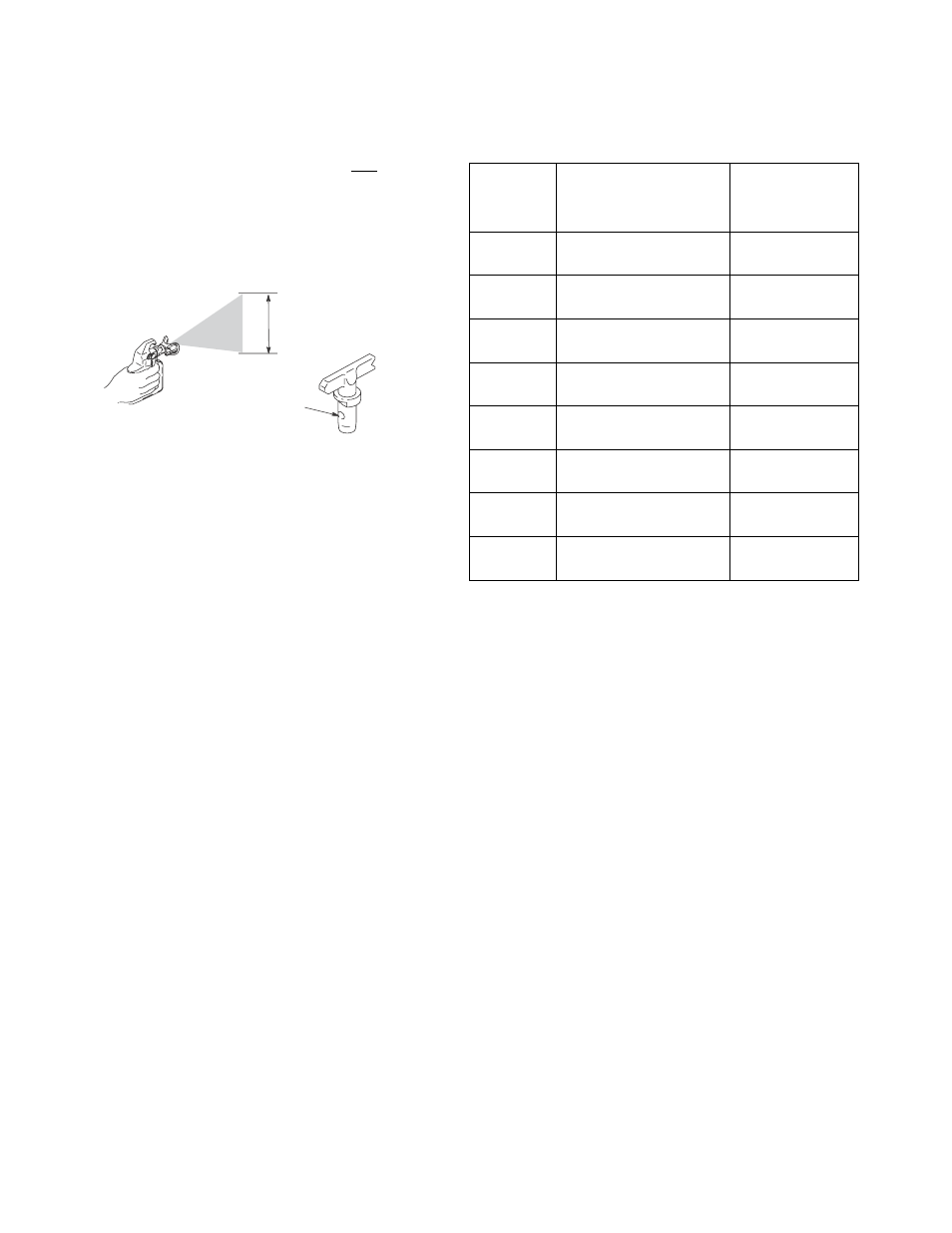

Understanding Tip Number
The last three digits of tip number (i.e.: 221413) contain
information about hole size and fan width on surface
when gun is held 12 in. (30.5 cm) from surface being
sprayed.
Reversible Tip Selection Chart
Example: For an 8 to 10 in. (203 to 254 mm) fan width
and 0.013 (0.33 mm) hole size, order Part No. 69-413.
First digit when doubled
= approximate
fan width
413 tip has
8-10 in.
fan width
413 tip has
a 0.013 in
.
hole size
Last two digits = tip hole size in thousands of an inch
ti5559a
Tip Part
No.
Fan Width 12 in.
(305 mm) from
surface Hole Size
69-311 6 - 8 in.
(152 - 203 mm) 0.011 in.
(0.28 mm)
69-411 8 - 10 in.
(203 - 254 mm) 0.011 in.
(0.28 mm)
69-313 6 - 8 in.
(152 - 203 mm) 0.013 in.
(0.33 mm)
69-413 8 - 10 in.
(203 - 254 mm) 0.013 in.
(0.33 mm)
69-415 8 - 10 in.
(203 - 254 mm) 0.015 in.
(0.38 mm)
69-515 10 - 12 in.
(254 - 305 mm) 0.015 in.
(0.38 mm)
69-417 8 - 10 in.
(203 - 254 mm) 0.017 in.
(0.43 mm)
69-517 10 - 12 in.
(254 - 305 mm) 0.017 in.
(0.43 mm)
