5-48
Interface: Vlan-interface100 Circuit Id: 0000.0000.0001.01
State: Up HoldTime: 9s Type: L2 PRI: 100
System Id: 0000.0000.0002
Interface: Vlan-interface100 Circuit Id: 0000.0000.0001.01
State: Up HoldTime: 28s Type: L2 PRI: 64
[SwitchD] display isis interface
Interface information for ISIS(1)
---------------------------------
Interface: Vlan-interface100
Id IPV4.State IPV6.State MTU Type DIS
001 Up Down 1497 L1/L2 No/No
Configuring IS-IS Route Redistribution
Network requirements
As shown in Figure 5-17 , Switch A, Switch B, Switch C and Switch D reside in the same AS. They use
IS-IS to interconnect. Switch A and Switch B are Level-1 routers, Switch D is a Level-2 router, and
Switch C is a Level-1-2 router.
It is required to redistribute RIP routes into IS-IS on Switch D.

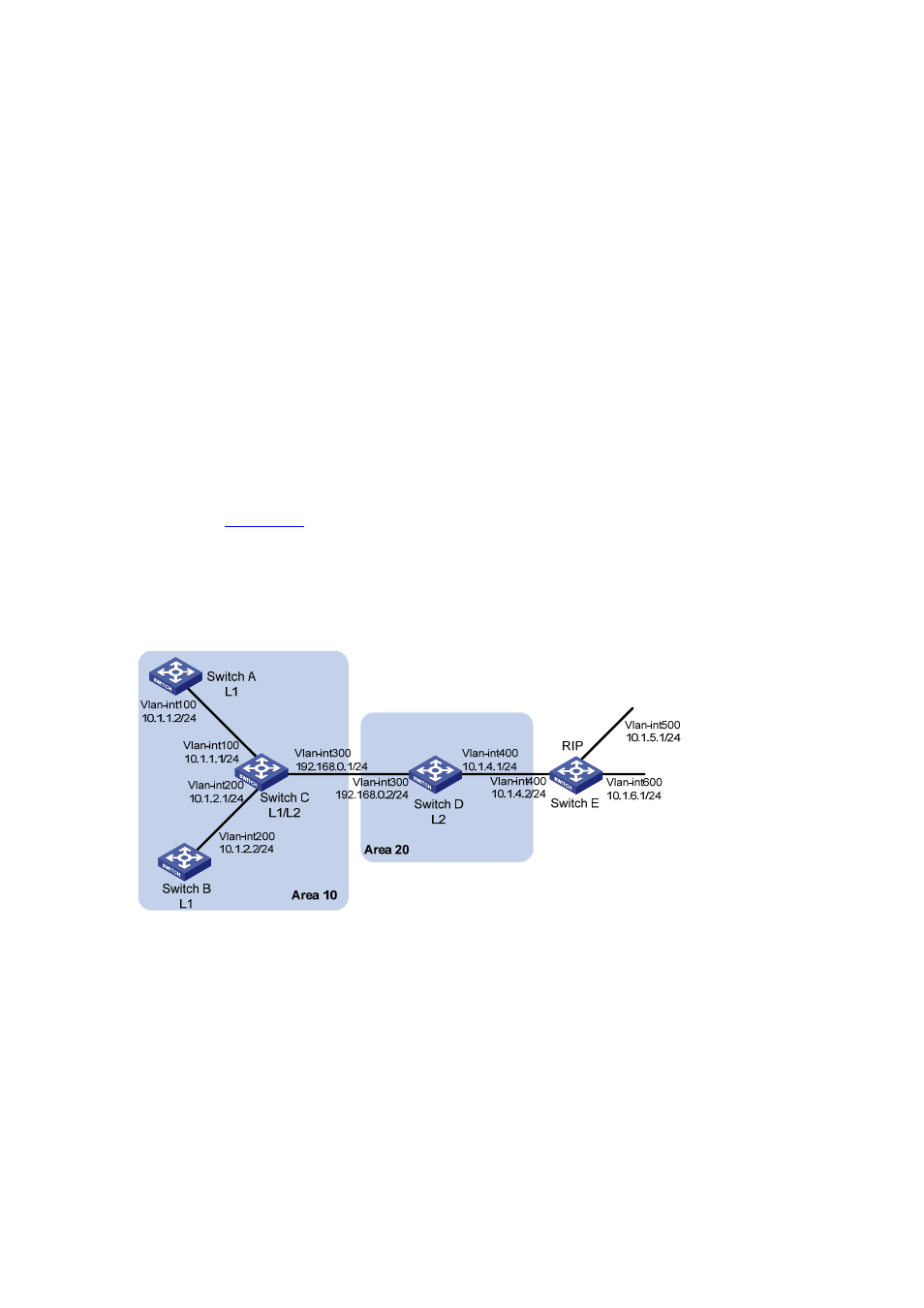

Figure 5-17 IS-IS route redistribution
Configuration procedure
1) Configure IP addresses for interfaces (omitted)
2) Configure IS-IS basic functions
# Configure Switch A.
<SwitchA> system-view
[SwitchA] isis 1
[SwitchA-isis-1] is-level level-1
[SwitchA-isis-1] network-entity 10.0000.0000.0001.00
[SwitchA-isis-1] quit
[SwitchA] interface vlan-interface 100
[SwitchA-Vlan-interface100] isis enable 1
