10 2030RDA Instruction Manual
Installation
Installing the 2030RDA Front Media Module
1. Locate the corresponding front media slot (1 -12) in the 3 RU frame
frame (
Figure 4 ) or front media (slot 1-4) the 1 RU frame ( Figure 5 ).

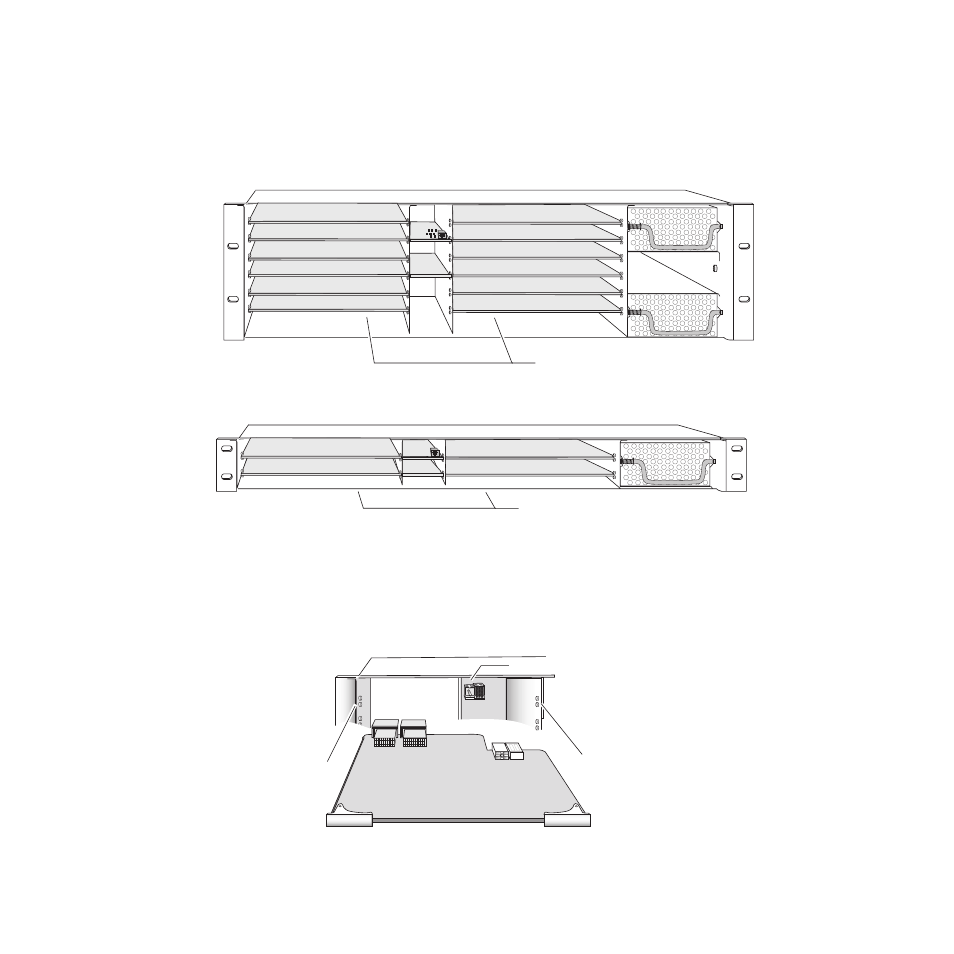

Figure 4. 2000T3 Frame, Front Slots
Figure 5. 2000T1 Frame, Front Slots
2. Verify that the module connector seats properly against the midplane
and rear module connector (
Figure 6 ).
3. Press firmly on both ejector tabs to seat the module.
Figure 6. Installing Front Media Module
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(1)
Front Media Modules
Slots 1-12
8029-04
(2)
(3)
(4)
(5)
(6)
(1)
8173_10
Front Media Slots (1-4)
2030RDA
Alignment post and receptacle
8031-07
2000 Frame (front view)
Board edge
guides
Board edge
guides
