Configuring the Genlock Submodule
Genlock Timing
Use the following controls to adjust the output timing of the genlock refer-
ence signal from this submodule:
• Line Offset – adjust the reference timing stream by standard definition
line steps up to one full frame.
• Coarse Offset – provides coarse adjustment of the reference timing stream
by 37 ns steps up to one line.
• Fine Offset – provides fine adjustment of the reference timing stream by
steps up to 37 ns.

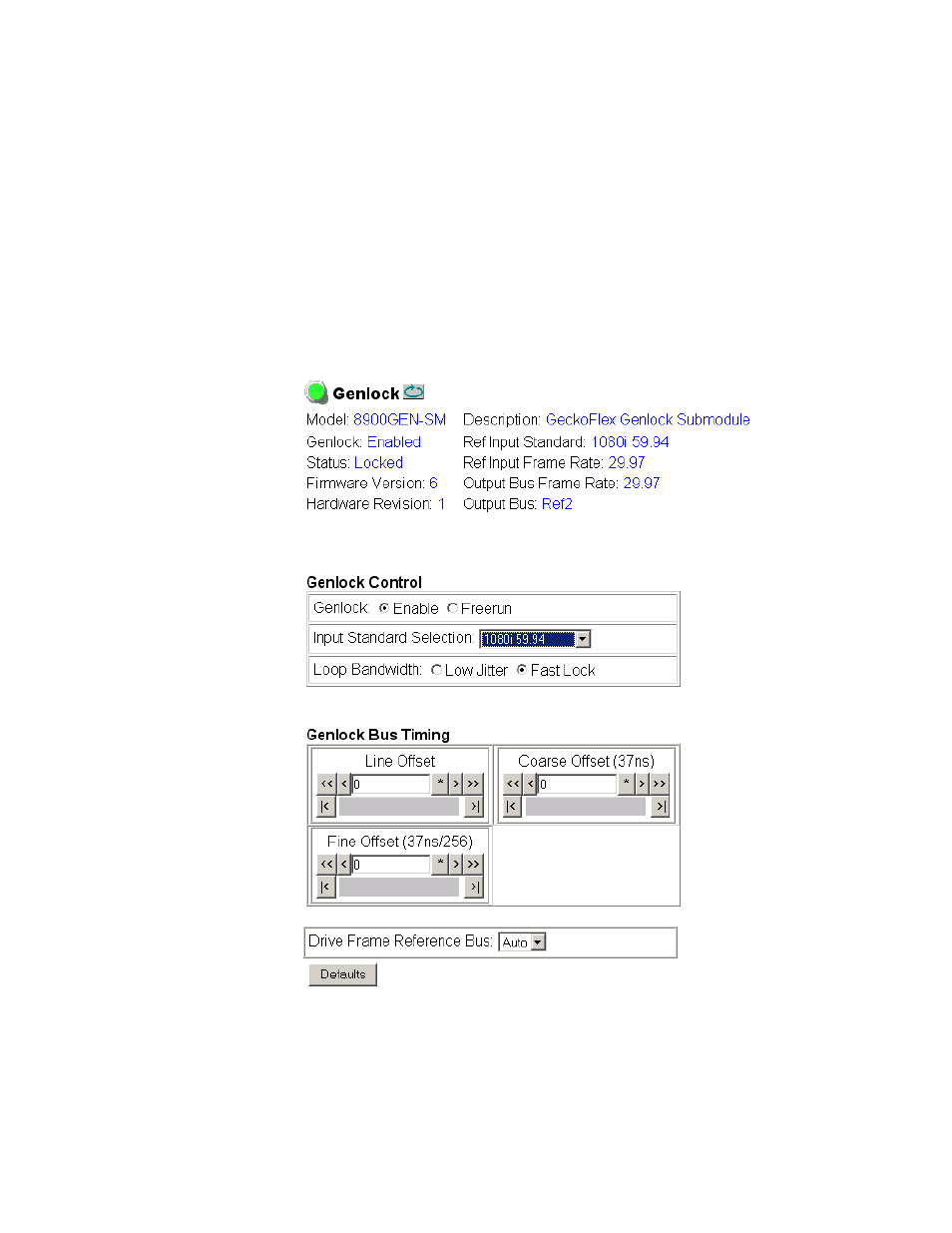

Figure 3. Genlock Web Page
