8900GEN-SM — Instruction Manual
8900GEN-SM Applications
Configure Secondary Reference (Slot 3)
1.
On the web page interface, locate the module in slot 3 and click on the
link to that module. The 8985FSP + GEN links are shown at left.
2.
Before beginning any type of configuration, select the link to the User
Settings web page and select the
Set Factory Defaults
button to recall
factory defaults to the host module and the 8900GEN-SM submodule.
3.
Connect the reference signal intended to be used as the Secondary
Frame Bus 2 reference to one of the Genlock Loop BNCs (J1 or J3) on the
8900GFR-R rear module in slot 3. Loop this signal to another location or
terminate in 75 ohms.
4.
Select the Genlock link on the left to bring up the Genlock web page for
the module in slot 3 (
). This will be the Secondary reference.

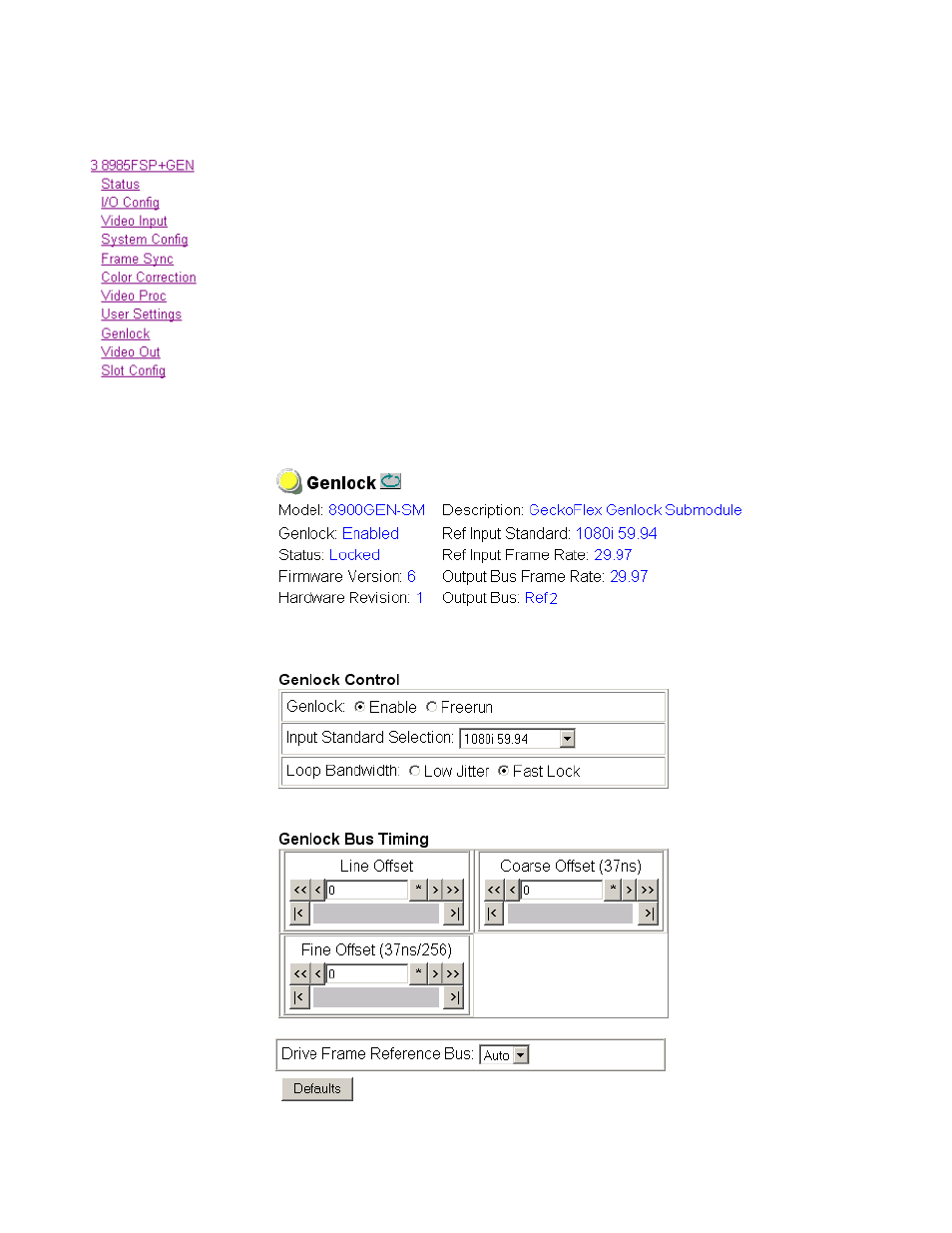

Figure 10. Secondary Genlock Web Page
