8995UPC/DNC/UDX — Instruction Manual
Configuration
CC Transcoding Output Signal
The
Output Signal
control allows you select what packet type the closed cap-
tioning will be transmitted on in the output video (
Digital 708 CC
,
Digital 608 CC
,
Analog CC
, and
Analog & Digital 608 CC
). You may disable closed
captioning transmission completely on the output by selecting the
None
button.
The other choices in the
Output Signal
control offer a number of different
output packet conversions. Conversion is allowed between most packet
types with some general rules. Results may vary depending on your end
use application. The
Output Signal
closed caption type chosen will depend on
the type of signal conversion (up, down, or cross) you have performed on
the module.
The
Analog Output Line
pulldown menu in this section allows selection of
what line the Analog CC will be on in the output signal (
). This
pulldown allows you to select the default
(Default) Line 21
or on Lines 6-22.
Note
Lines 9 is reserved for the EIA708 Default and Line 12 is reserved the EIA608
Default.

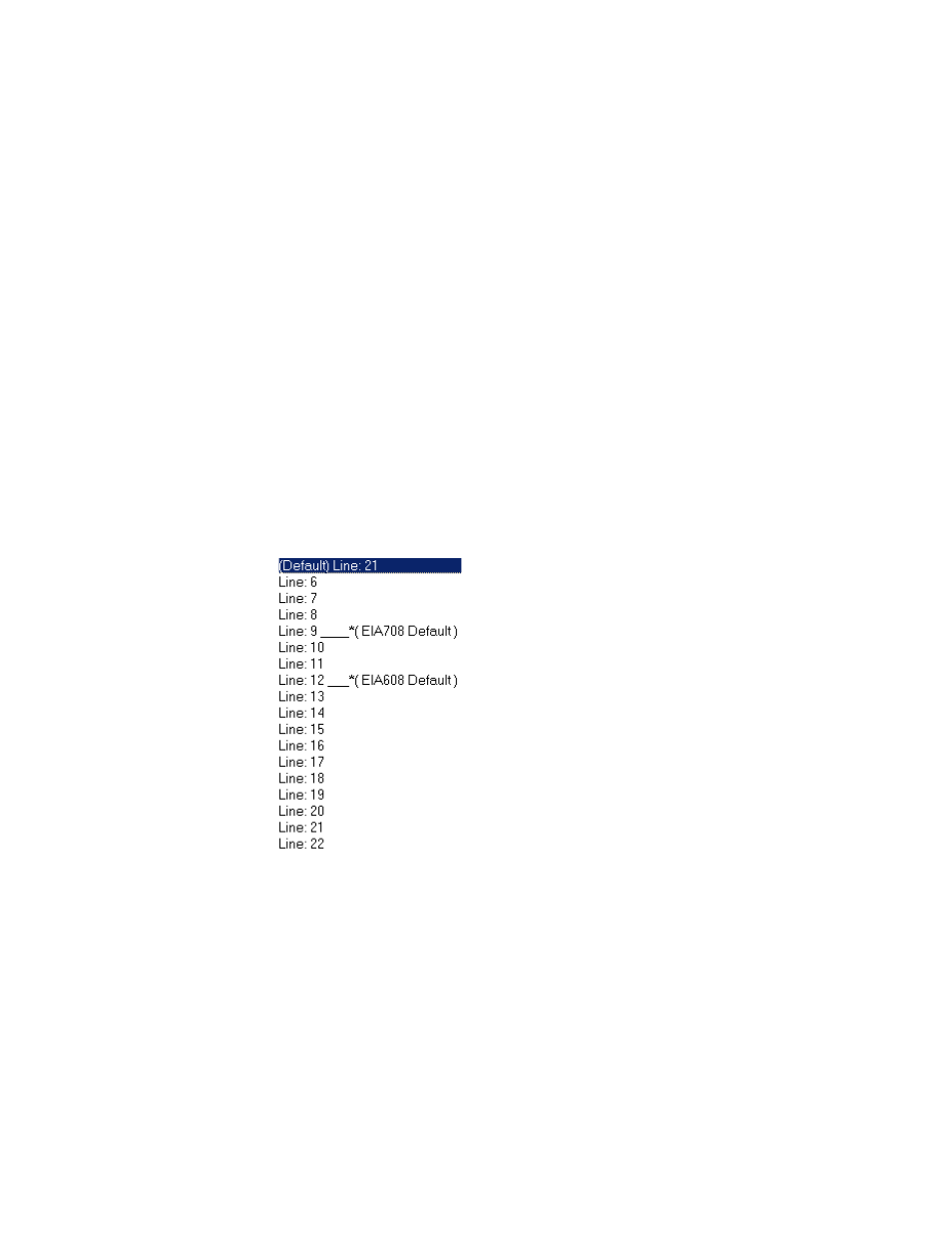

Figure 41. Analog Output Line Choices
