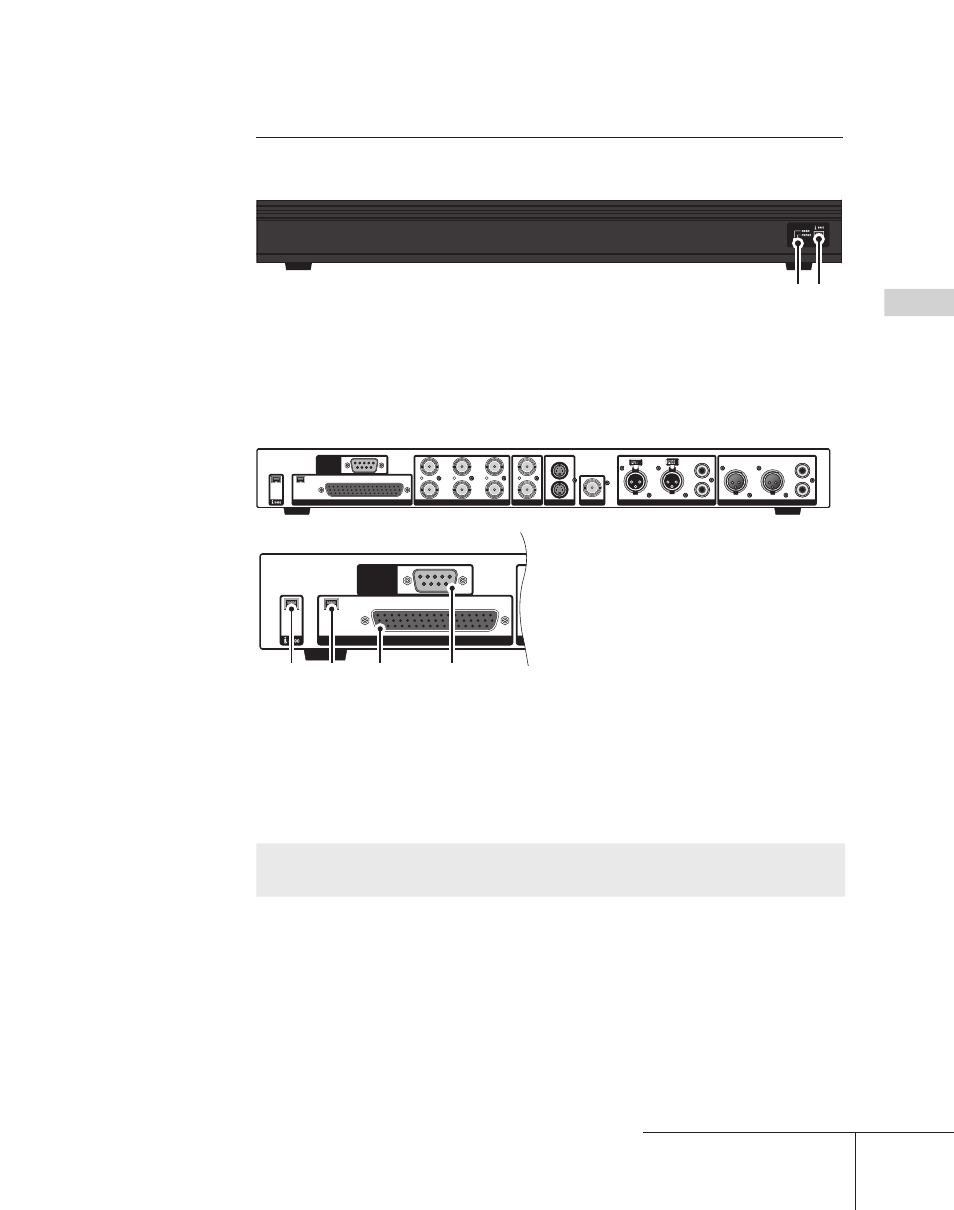

EDIUS SP Breakout Box
Front panel
[1] [2]
[1] DV rear / front toggle switch
[2] DV connection terminal (front)
Rear panel
Y IN Pb IN Pr IN
Y OUT Pb Pr OUT OUT
CH1 CH2 CH1
CH2
CH1 CH2 CH1
CH2
IN
OUT
IN
OUT
HOST INTERFACE COMPONENT VIDEO VIDEO S VIDEO REF IN AUDIO IN AUDIO OUT
REMOTE
Y
IN
Y
OUT
HOST INTERFACE
REMOTE
[1] [2] [3] [4]
[1] DV connection terminal (rear)
[2] DV connection terminal (for connection to EDIUS SP for HDV
main board)
[3] HOST INTERFACE
Connect to EDIUS SP for HDV main board using the included connection cable.
Notes Make sure to switch off the power of your PC before connecting the
Breakout Box.
[4] REMOTE (D-Sub9pin)
Remote terminal.
