Dialog Boxes
Pan/Tilt Settings Dialog Box
The PAN/TILT SETTINGS dialog box ( Figure 16 ) is used during setup of the
Pan/Tilt head. To access it, press the Setup button, then select PAN/TILT SET-
TINGS . It enables a user to:

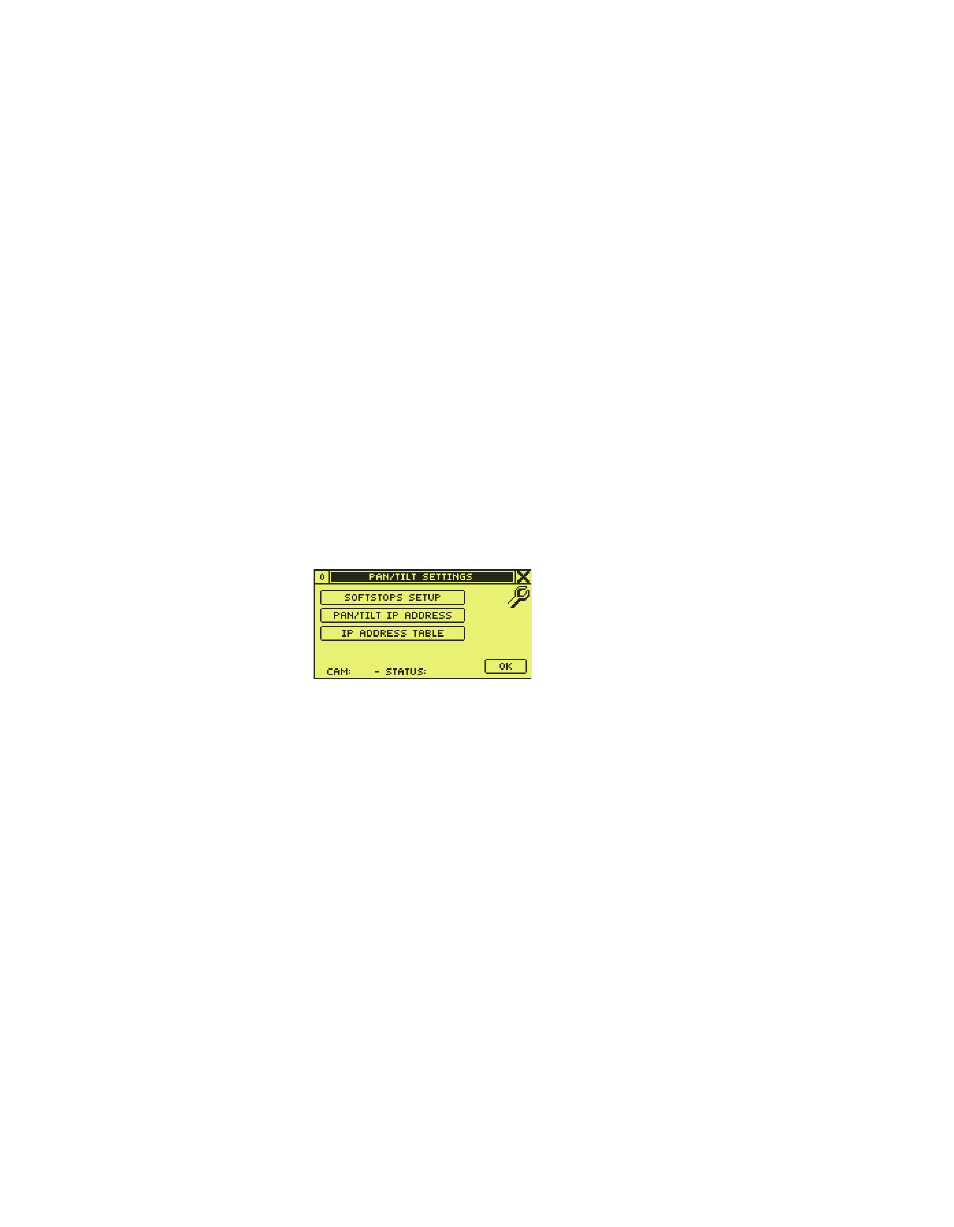

Figure 16. Pan/Tilt Settings Dialog Box
Pan/Tilt Soft Stops Dialog Box
The PAN/TILT SOFTSTOPS dialog box ( Figure 17 ) is used to set/change pan
and tilt motion soft stops. To access it, press the Setup button, select PAN/TILT
SETTINGS , then select SOFTSTOPS SETUP . It enables a user to:
TCP/IP NETWORK: Access the TCP/IP NETWORK dialog box (refer to TCP/IP
Network Dialog Box on page 32 )
SHOTDIRECTOR
SETTINGS: Access the SHOTDIRECTOR SETTINGS dialog box (refer to
SHOT Director Settings Dialog Box on page 32 )
ABOUT: View the JSC-2300 SHOT Director controller firmware
version, copyright, and company information
DIAG: Access the DIAGNOSTICS dialog box (refer to Diagnostics
Dialog Box on page 36 )
OK: Close the MAIN SETUP MENU dialog box
SOFTSTOPS
SETUP: Access the PAN/TILT SOFTSTOPS dialog box (refer to Pan/
Tilt Soft Stops Dialog Box on page 29 )
PAN/TILT IP
ADDRESS: Access the PAN/TILT IP ADDRESS dialog box (refer to Pan/
Tilt IP Address Dialog Box on page 30 )
IP ADDRESS
TABLE: Access the PAN/TILT IP TABLE dialog box (refer to Pan/Tilt IP
Table Dialog Box on page 31 )
OK: Close the PAN/TILT SETTINGS dialog box
