25
Kaleido-MX 4K (1RU)
Hardware Description & Installation Manual
Kaleido-MX 4K Service Control Panels in iControl
The card label (KMX-IN-16-Q, and KMX-3901-OUT in the examples below) and the slot
number where the card is installed in the Densité frame are indicated in the window’s title
bar.
The service control panel for a Kaleido-MX 4K input card only offers information.

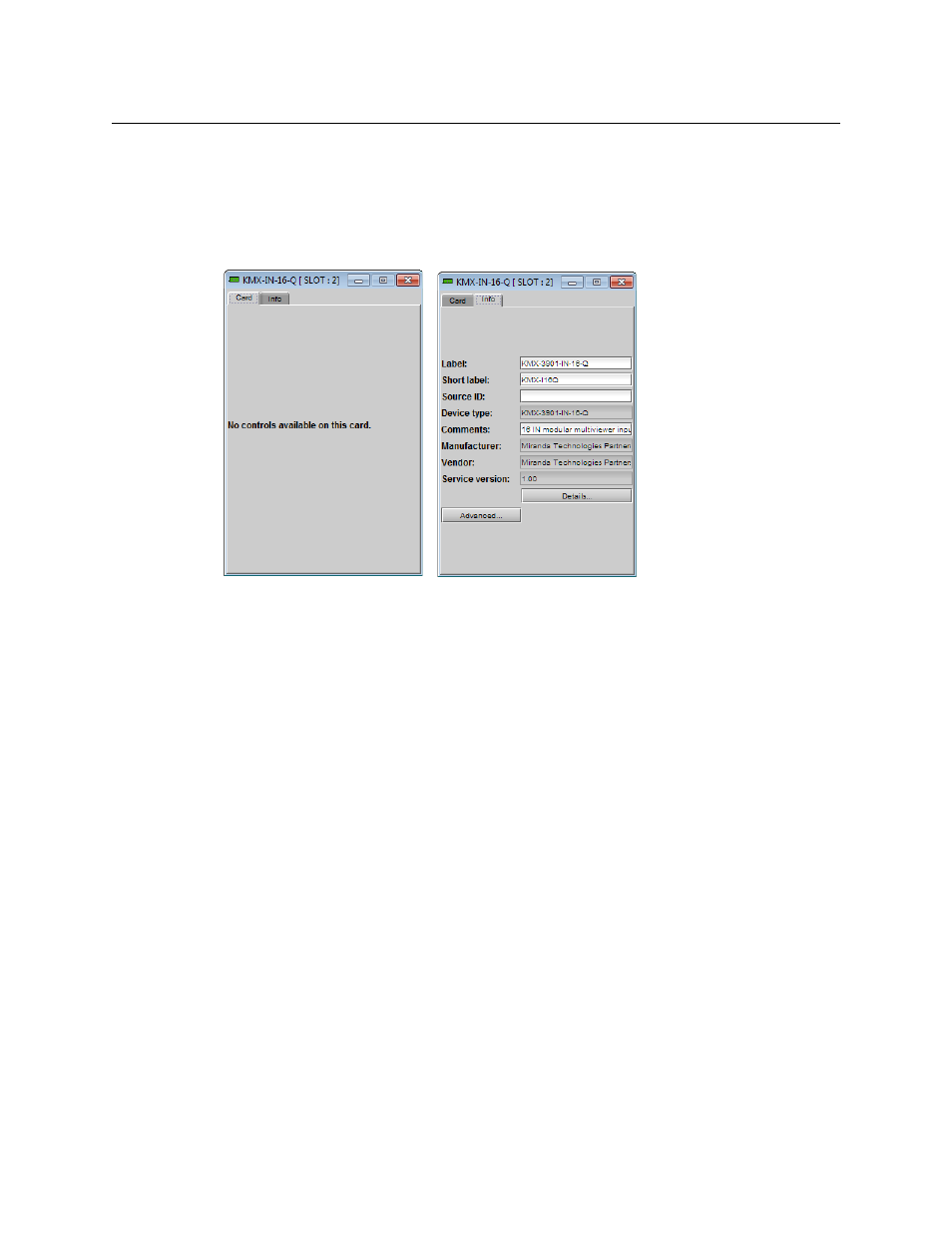

Service control panel for a Kaleido-MX 4K input card
See Info Panel on page 28 for more information.
In the KMX-3901-OUT control panel window, there are three main areas: the status icon
area, the navigation area, and the operating control area.
