32 KAM-ENC-2AES Instruction Manual
KAM-ENC-2AES Links and Web Pages
SDI In Web Page
Use the SDI In web page to view the status of the SDI input signal in
Summary view (
Figure 15 ) or Detail view ( Figure 16 on page 33 ):
• Select the Summary radio button to bring up the summary view shown
in Figure 15 .
• Use the Clear All Status button to clear and reset the status reporting.

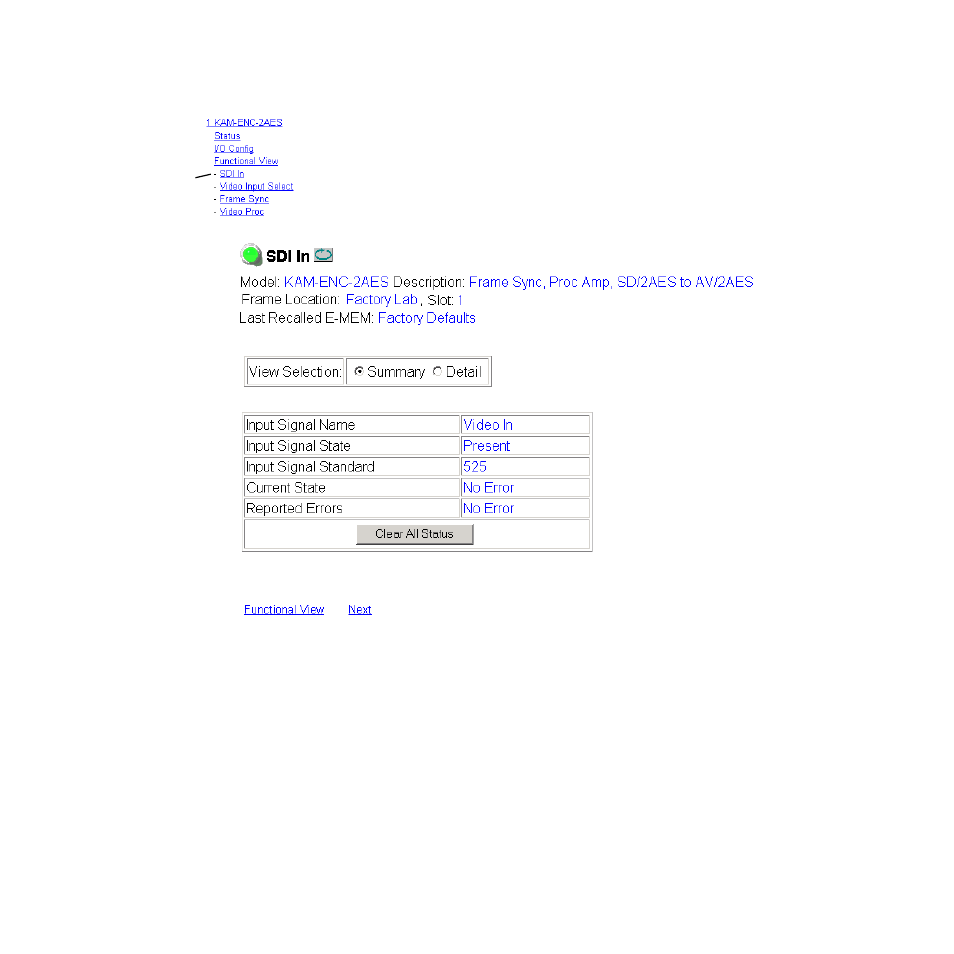

Figure 15. SDI In Web Page (Summary View)
To view a detailed view of the SDI input status, select the Detail radio button
to bring up the view shown in Figure 16 on page 33 .
This view provides input signal status for both EDH Error and Feed
Forward status. Each status report can be disabled by deselecting the cor-
responding
Reporting checkbox. Each status report can also be cleared and
reset by selecting the corresponding Clear Status button.
Use
this
link
