Kayenne XL Package — Installation and Service Manual
Section 5 — Maintenance
Fader Calibration
•
In the Transition Module press EMEM and Limit simultaneously to start
the fader calibration.

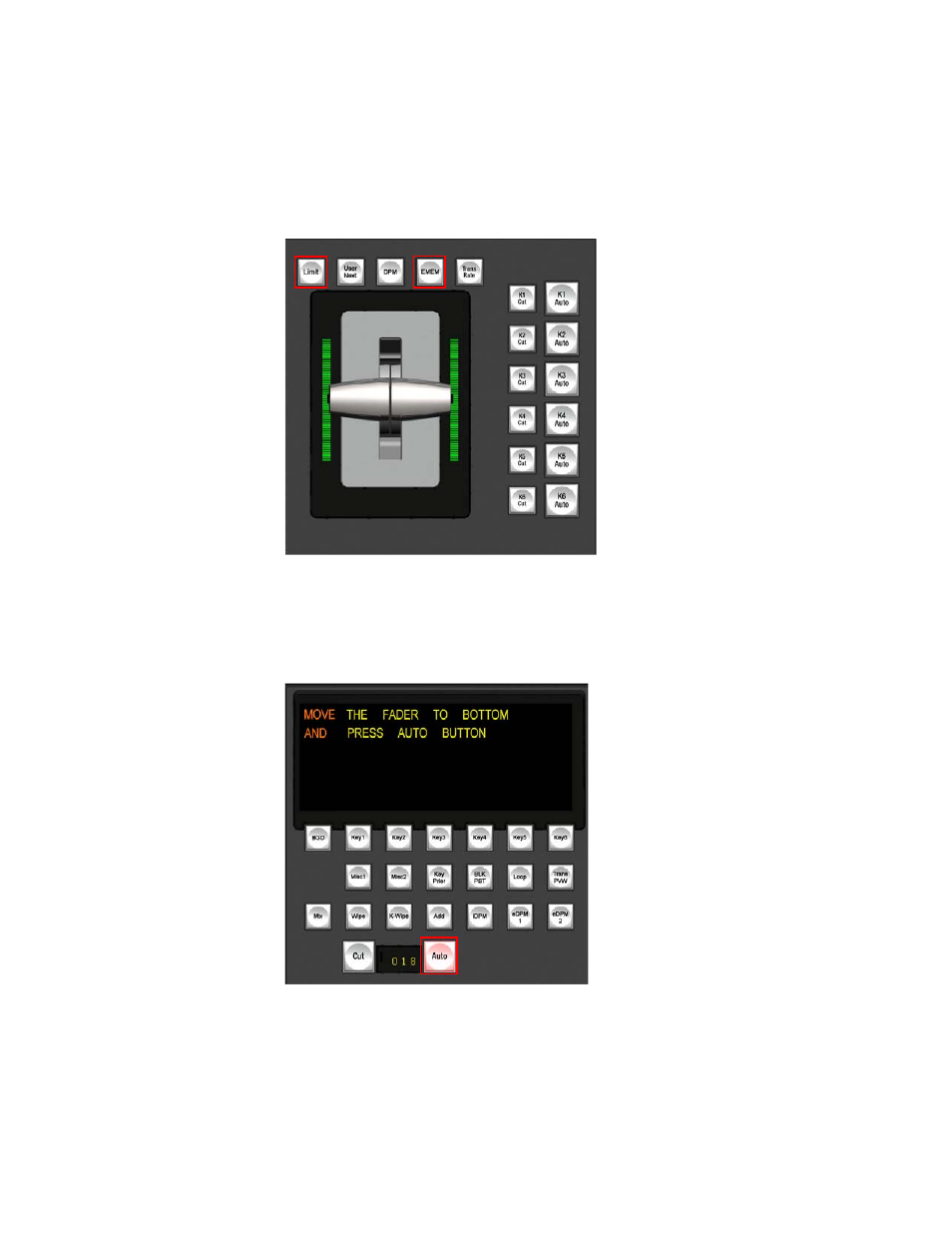

Figure 106. Fader calibration
•
Follow the displayed instructions Move the Fader to bottom and press Auto
Button.
Figure 107. Joystick calibration
•
Follow the displayed instructions Move the Fader to top and press Auto
Button.
