32
Technical Details
Environmental Specifications

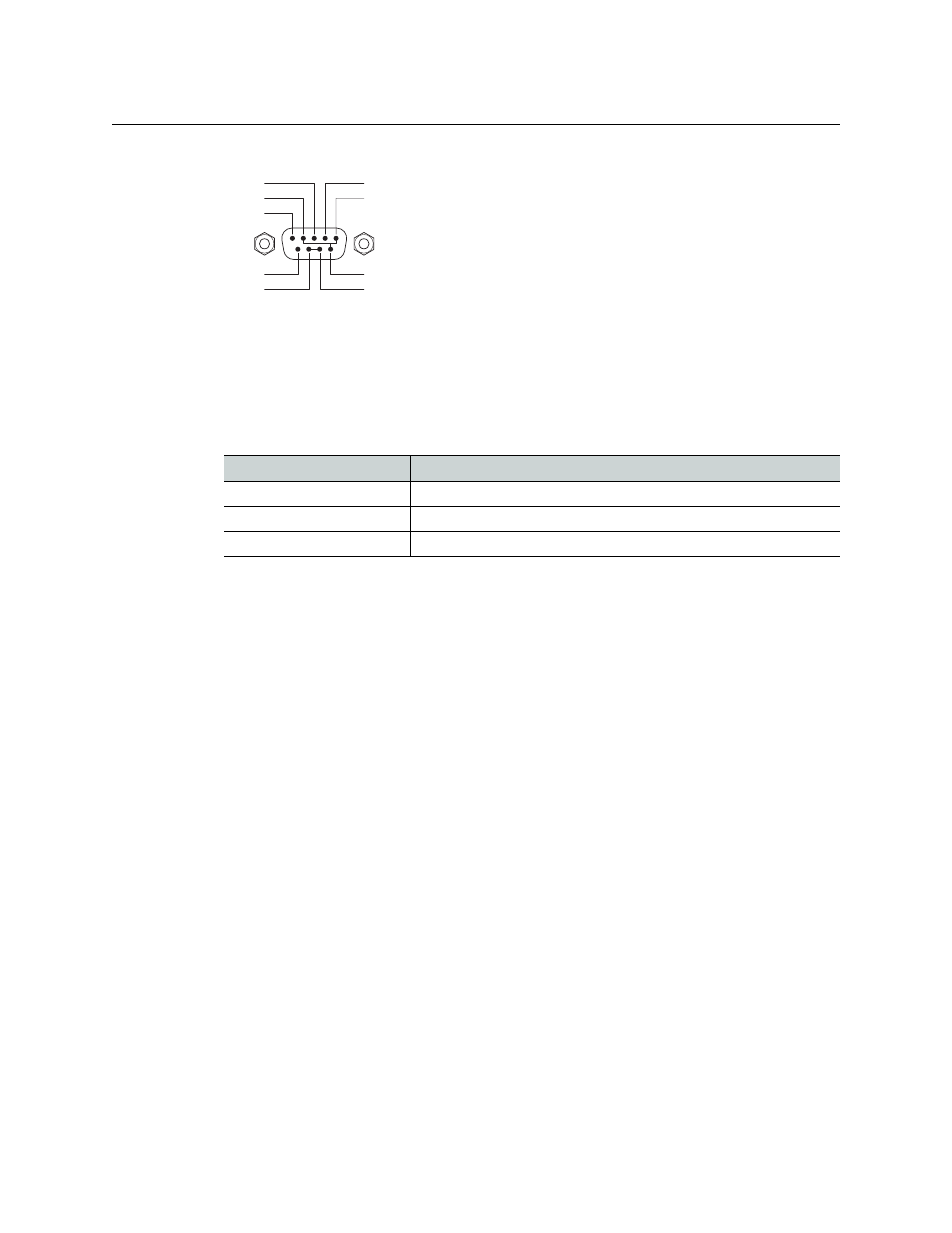

The RS-232 connector has this pinout:
Pins 1, 4, and 6 are tied together and pins 7 and 8 are tied together. None of those pins are
connected to any circuitry.
Environmental Specifications
NV9604 Environmental Specifications
Defaults
Initial Panel State
Destination: the configured default.
Configuration Page
The initial NV9604 configuration has no buttons defined. The default panel options are:
Default destination: None.
Status monitor: None
High-tally illumination: 100%.
Low-tally illumination: 60%.
All other options: Disabled (check boxes clear).
DHCP
The panel is set up to respond to DHCP from the factory. It is possible to assign the panel a fixed
IP address using the Panel IP Configuration Utility.
Drawings
The drawings on the following pages provide overall and critical dimensions.
n.c.
1 5
9 6
Tx Rx
Gnd
n.c.
n.c.
n.c.
n.c.
n.c.
Specification Detail
Operating temperature 0–30 °C, ambient.
Relative humidity 0 to 90%, non-condensing.
Cooling No fan required.
