Technical Details

Drawings

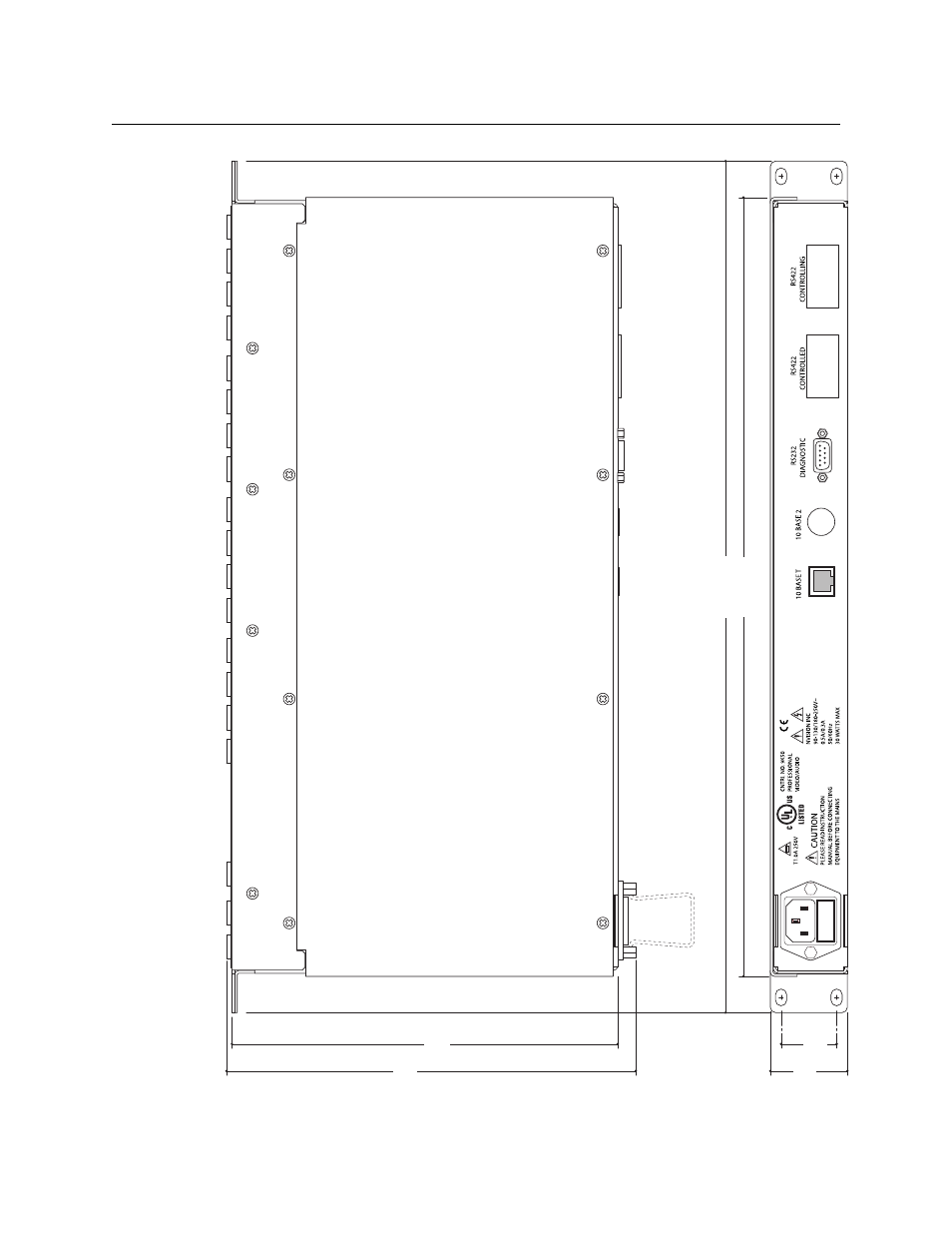

Fig. 6-2: Rear and Top Views of the NV9604

1.72 [43.7]

19.0 [482.6]

17.38 [441.5]

8.61 [21

8.7]

9.14 [232.2]

1.25 [31.8]
