Measuring lines
A minimum of 2 points are required to measure a line. A maximum of
100 points can be probed and will be processed by a fit algorithm to
define the line.
U Press the LINE MEASUREMENT key. The Probe Line
screen will be displayed. Press the key twice to
measure a series of lines using auto repeat.
U Move the stage to position the crosshairs over an end
point of the line and press the ENTER key.
U Move the stage to position the crosshairs over the
other end point of the line and press the ENTER key.
U Press the FINISH key to complete the measurement.
The line position and angle will be shown and the line
feature will be added to the feature list.
U Press the CHANGE soft key to change the line fit
algorithm if desired.
Line fit algorithms include:
„ LSBF: Fit determined by minimizing the sum of the squared point
deviations from the form fit.
„ ISO: Fit determined by minimizing the form deviation.

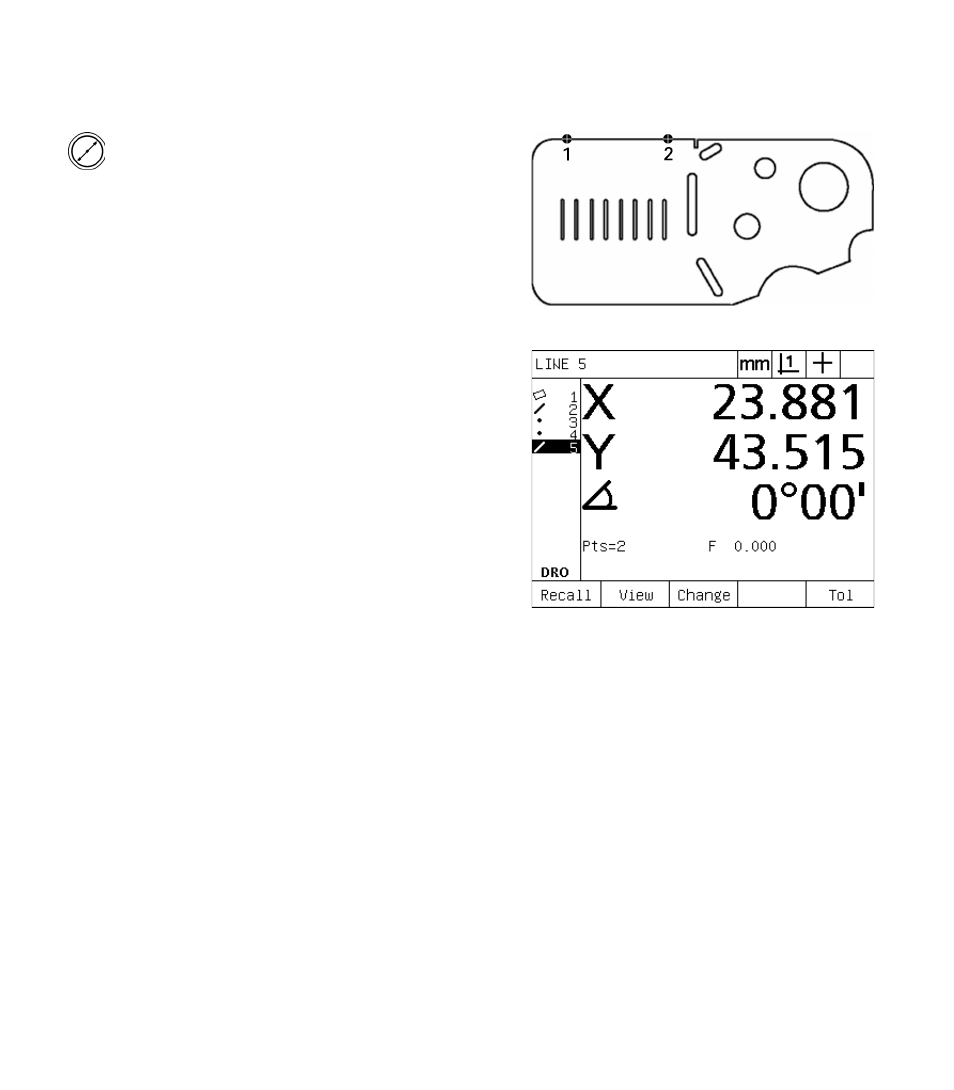

A line is probed on the part
The line position and angle are shown and the line
feature is added to the feature list
