HEIDENHAIN TNC 620 (340 56x-02) Cycle programming - Manual (Page 179)

HEIDENHAIN TNC 620 179
7.
5 PIL
O
T DRILLING (Cy
c
le 21, DIN/
ISO: G121, A
d
v
a
nced Pr
ogr
a
mming
F
e
at
ur
es Sof
tw
a
re
Option)
Cycle parameters
U Plunging depth Q10 (incremental): Dimension by
which the tool drills in each infeed (negative sign for
negative working direction). Input range: -99999.9999
to 99999.9999
U Feed rate for plunging Q11: Drilling feed rate in
mm/min. Input range: 0 to 99999.9999; alternatively
FAUTO, FU, FZ.
U Rough-out tool number/name Q13 or QS13:
Number or name of rough-out tool. Input range 0 to
32767.9 if a number is entered; maximum 16
characters if a name is entered.

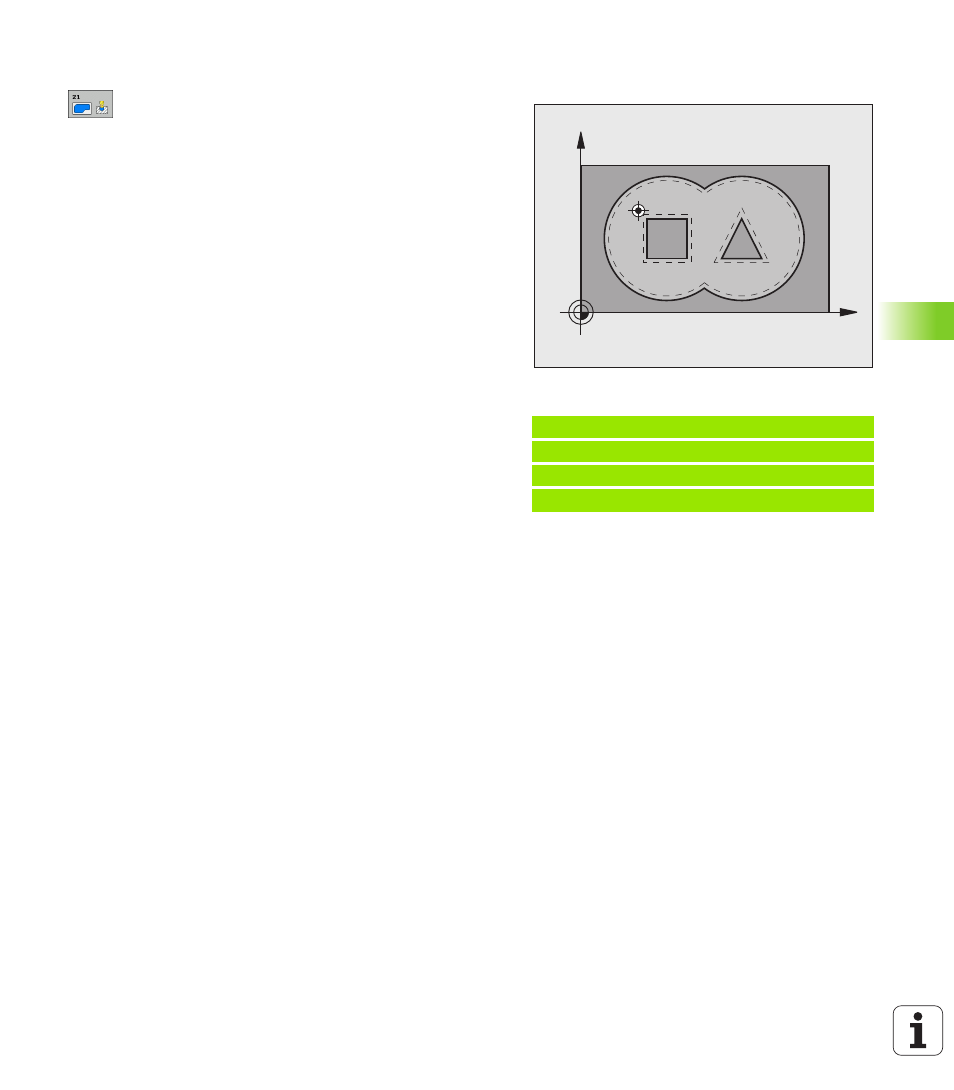

Example: NC blocks
58 CYCL DEF 21 PILOT DRILLING
Q10=+5 ;PLUNGING DEPTH
Q11=100 ;FEED RATE FOR PLNGNG
Q13=1 ;ROUGH-OUT TOOL
X
Y
