Laney LX120RH User Manual
Page 10

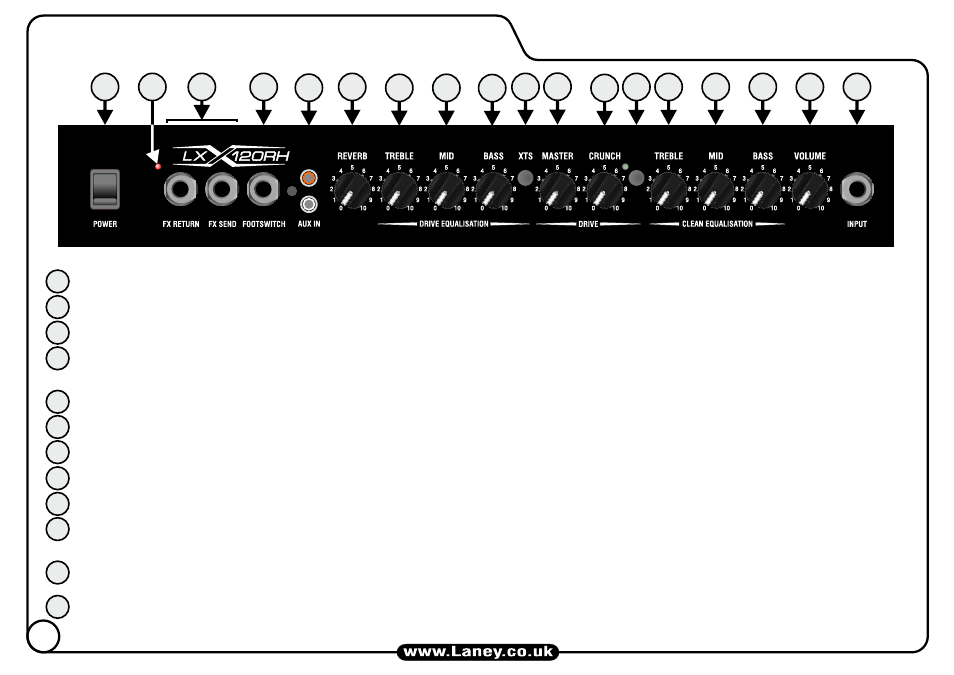

PANEL CONTROLS
1
2
3
4
5
6
7
8
12
10
9
11
Main Power Switch: for the unit. (Always switch off and disconnect the power cord when not in use)
Main Power LED: When illuminated indicates that power is connected to the unit and it is ready to go.
FX Send / Return: Line level FX Loop to connect to an external effects controller.
Footswitch: Connect a Laney FS2 footswitch here to enable remote switching for the channel and reverb/FX. Note: Drive channel must be
enabled via (13) for channel switching with a footswitch to function.
Aux In: Fancy playing along with a backing track? Connect your CD/MP3 player here.
Reverb: Controls the amount of reverb applied to the signal
Treble: Controls the amount of treble on the drive channel.
Mid: Controls the amount of mid on the drive channel.
Bass: Controls the amount of bass or bottom end on the drive channel.
XTS: eXtreme Tone Shaping. This applies a scooped mid tone shape to the drive channel and boosts certain key frequencies for a unique
sound.
Master: Controls the overall level on the drive channel. Use with (12)
Crunch: Controls the crunch channel gain, low down for classic rock and blues, higher up for hard rock and metal.... the higher you go the
more Extreme it gets. Use in conjunction with (11) to get the overall level balanced how you want it. LED Indicates that the drive channel
is active.
