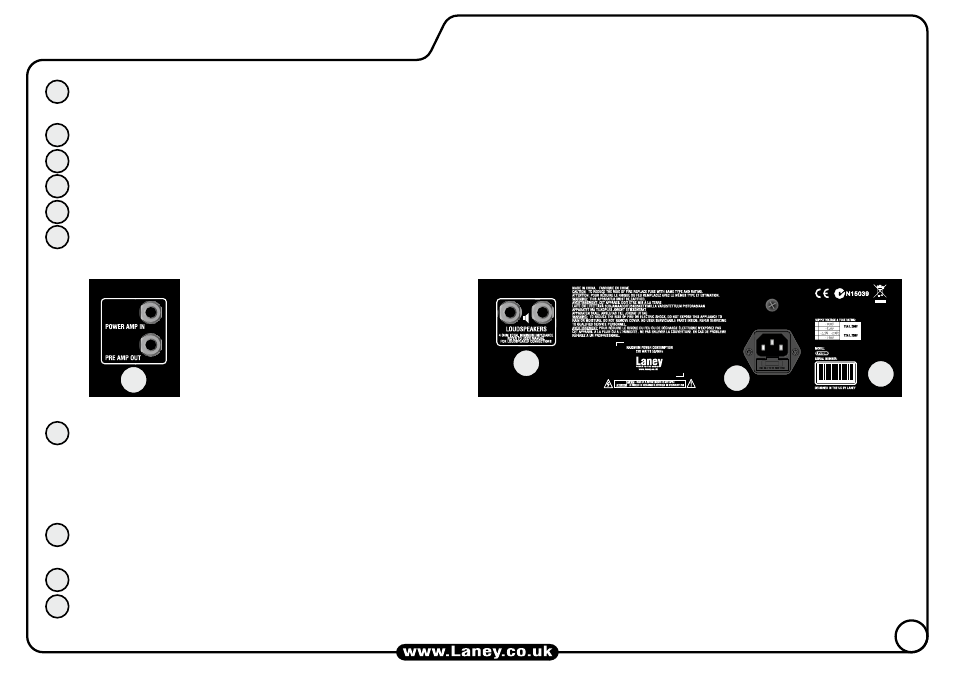

Crunch ON/OFF: Switch in to activate the overdrive ‘Crunch’ channel. When active, control the amount of distortion with (12) and the
overall volume with (11)
Treble: Controls the amount of treble on the clean channel.
Mid: Controls the amount of mid on the clean channel.
Bass: Controls the amount of bass or bottom end on the clean channel.
Volume: Controls the volume level of the clean channel.
Input: This socket should be used for connecting your instrument to the amplifier. Only use a good quality screened cable.
Power Amp In Preamp Out: These jacks are primarily used to connect other power amplifiers or to connect LX120RH amplifiers together
to boost power outputs. When connecting to another power amplifier the preamplifier output jack should be used. The signal at this
socket will be affected by all the controls on the preamplifier. When connecting two LX120RH amplifiers together to boost power levels
the master amplifier preamplifier out jack should be connected to the power amplifier input socket of the slave. The master will then be in
complete control of the slave power amplifier.
Loudspeakers: Connect your loudspeakers here. The impedance of the cabinet/s should not be less than 4 Ohms. Connecting cabinets that
have a lower impedance than 4 Ohms will result in the amplifier overheating. Continual use in this manner may cause permanent damage.
Displays the model number, power requirements and serial number of the unit.
Power Inlet Socket: Connect your power source here. Make sure that the specified voltage is correct for your country! Also here in the
drawer is the main safety fuse for the unit. Only use the correct size and rating of fuse as specified on the panel.
