Laney AH40 - Manual (Page 13)

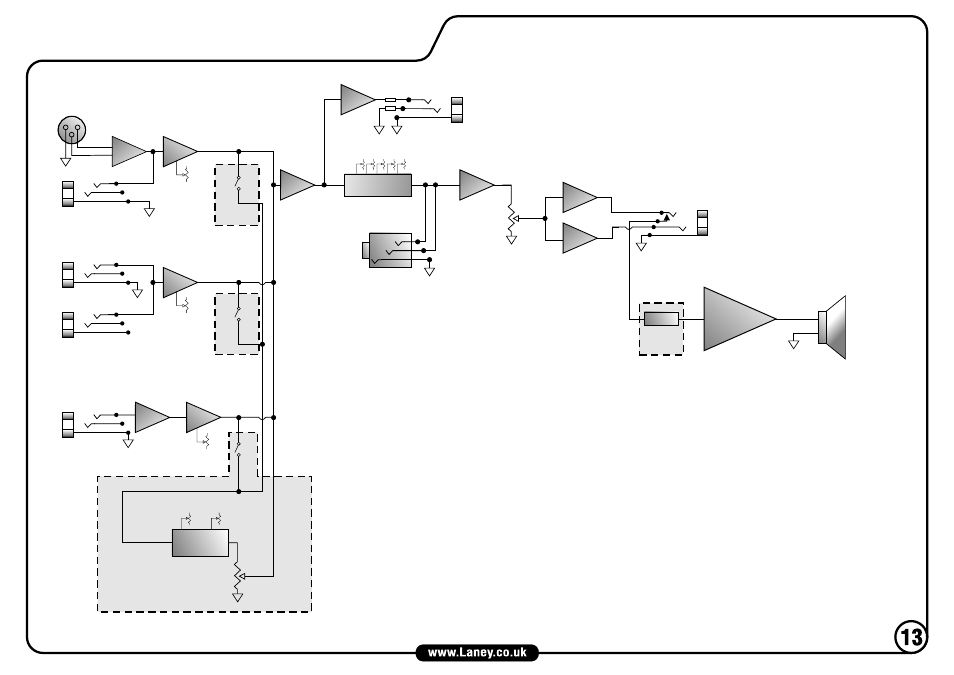

BLOCK DIAGRAM
Internal Speakers
INTERNAL
FX
Feedback Delay
+
-
AH80 ONLY
FX
Line
Mic
FX Level
Master Volume
Power amp
Line (R)
Line (L)
Instrument (Hi-Z)/Line
Pre Out
5 Band EQ
Headphones
FX
FX
AH80 ONLY
AH80 ONLY
Limiter
AH80 ONLY
Aux In (3.5mm)
Level
Level
Level
