Rear panel features, Chapter 1, Introduction – Lanner FW-6432 User Manual
Page 7
4
Introduction
Chapter 1
Network Application Platforms

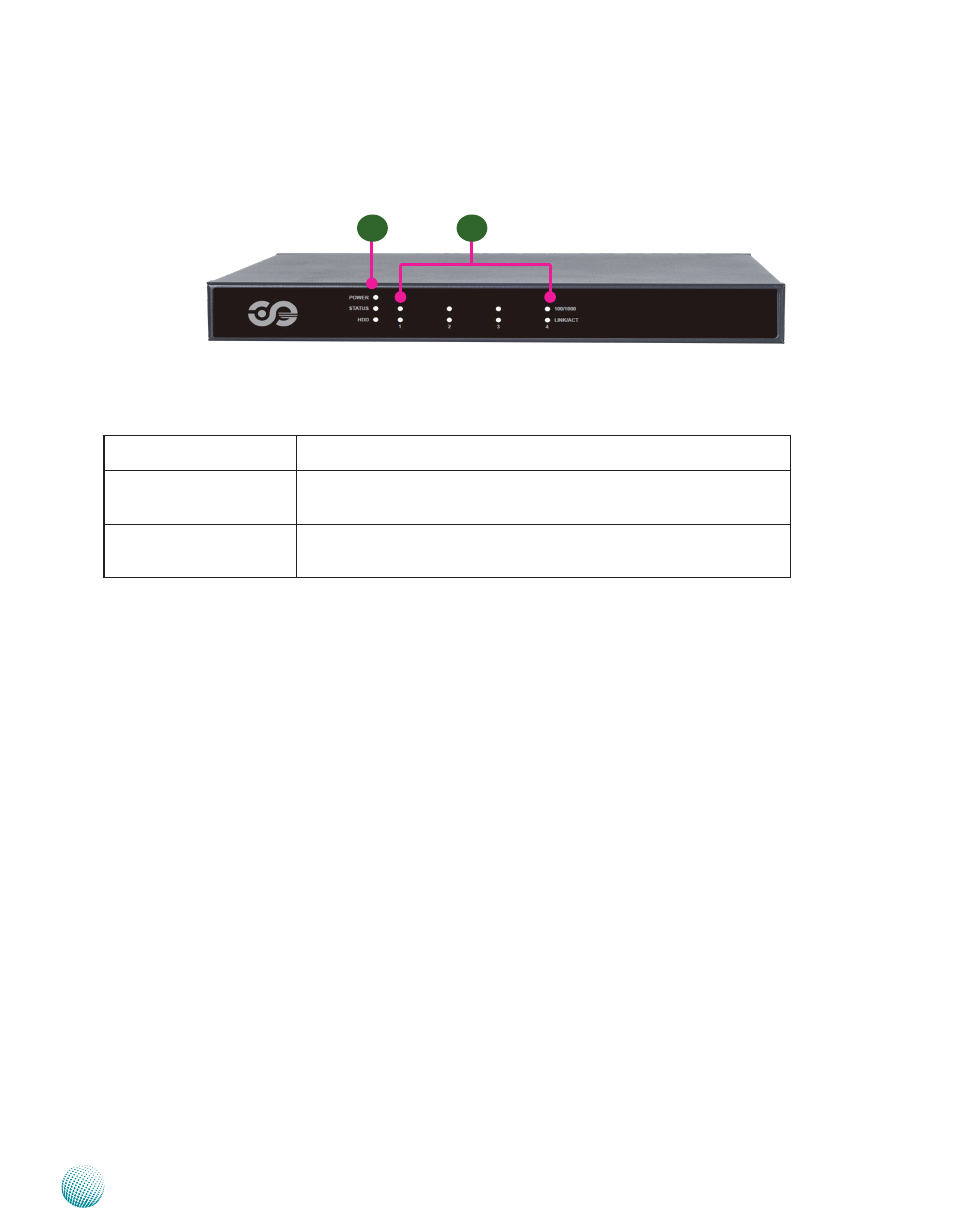

Rear Panel Features
R1
R1 LED
System (Green)
Green: when the system is on.
Off: when the system is off.
Status (Green/Amber)
It is a programmable LED to show the operating status of the system. For
more details, look for the software utility folder in the Driver and User Manual
CD.
Hdd (Yellow)
Flashing: when there are data access activities or the presence of the Com-
pactFlash card
Off: when there is no CompactFlash card present
R2 LED for 1-4 (from left to right) LAN Ports
Data Speed LED (Orange/Green/Off): Orange indicates that the data is communicating at 1000Mbps. Green indicates that
the data is communicating at 100Mbps. Off means that the data is communicating at 10Mbps.
Link/Active (Yellow): If the LED is on, the port is connected to the LAN. If it blinks, it indicates there is traffic.
R2
