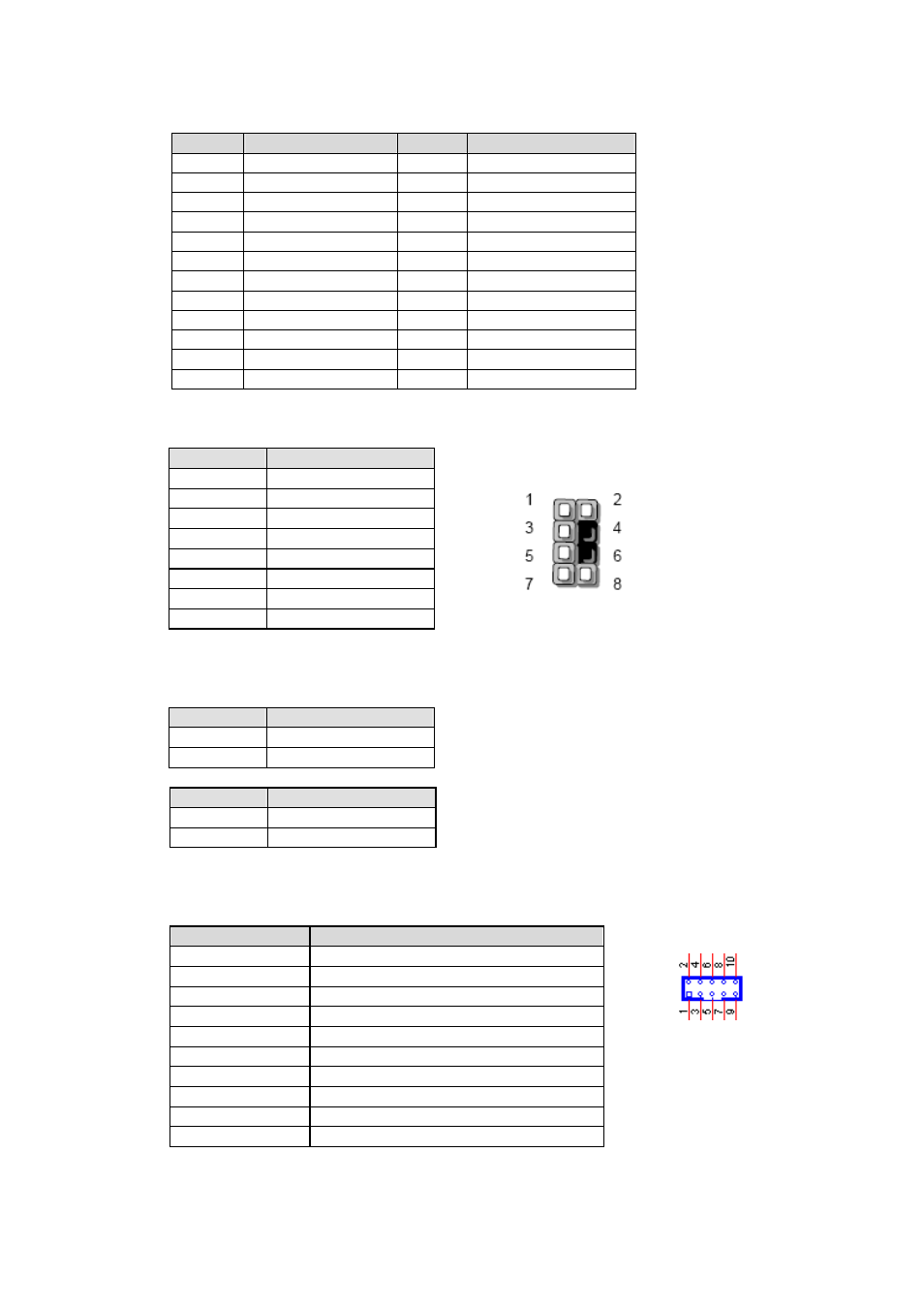

z LCM
Part reference: J9
PIN DESCRIPTION PIN DESCRIPTION
1 P5V 13 FL_PD7
2 GND 14 FL_PD6
3 P_SLIN# 15 LCD-
4 VEE 16 P5V
5 P_AFD# 17 KPA1
6 P_INIT# 18 KPA2
7 FL_PD1 19 KPA3
8 FL_PD0 20 KPA4
9 FL_PD3 21
LCM_RST_N
10 FL_PD2 22 CTR_GRN
11 FL_PD5 23 CTR_RED
12 FL_PD4 24
HDD_LED_N
z PKMB1: PS/2 Keyboard & Mouse Connector
Part reference: PKMB1
PIN DESCRIPTION
1 VCC
2 MSCLK
3 MSDATA
4 KEY
5 KBDATA
6 KEY
7 GND
8 KBCLK
z Power /Reset Switch
Part reference: PSW1, PSW2
PSW1 (Power Switch)
PIN DESCRIPTION
1 GND
2 PSW1
PSW2 (Reset Button)
PIN DESCRIPTION
1 GND
2 PSW2
z SPI ROM Interface
Part reference: SPI-ROM1
Bellow shows the pin assignment of the SPI ROM Interface connector.
PIN DESCRIPTION
1 SPI_HOLD1_L
2 SPI_CS1
3 SPI_CS0
4 P3V3
5 SPI_MISO
6 SPI_HOLD0_L
7 NC
8 SPI_CLK_PRI_SEC
9 GND
10 SPI_MOSI_PRI_SEC
