Magnum Energy MMS Series - Manual (Page 15)

© 2014 Magnum Energy, Inc.
Installation
9

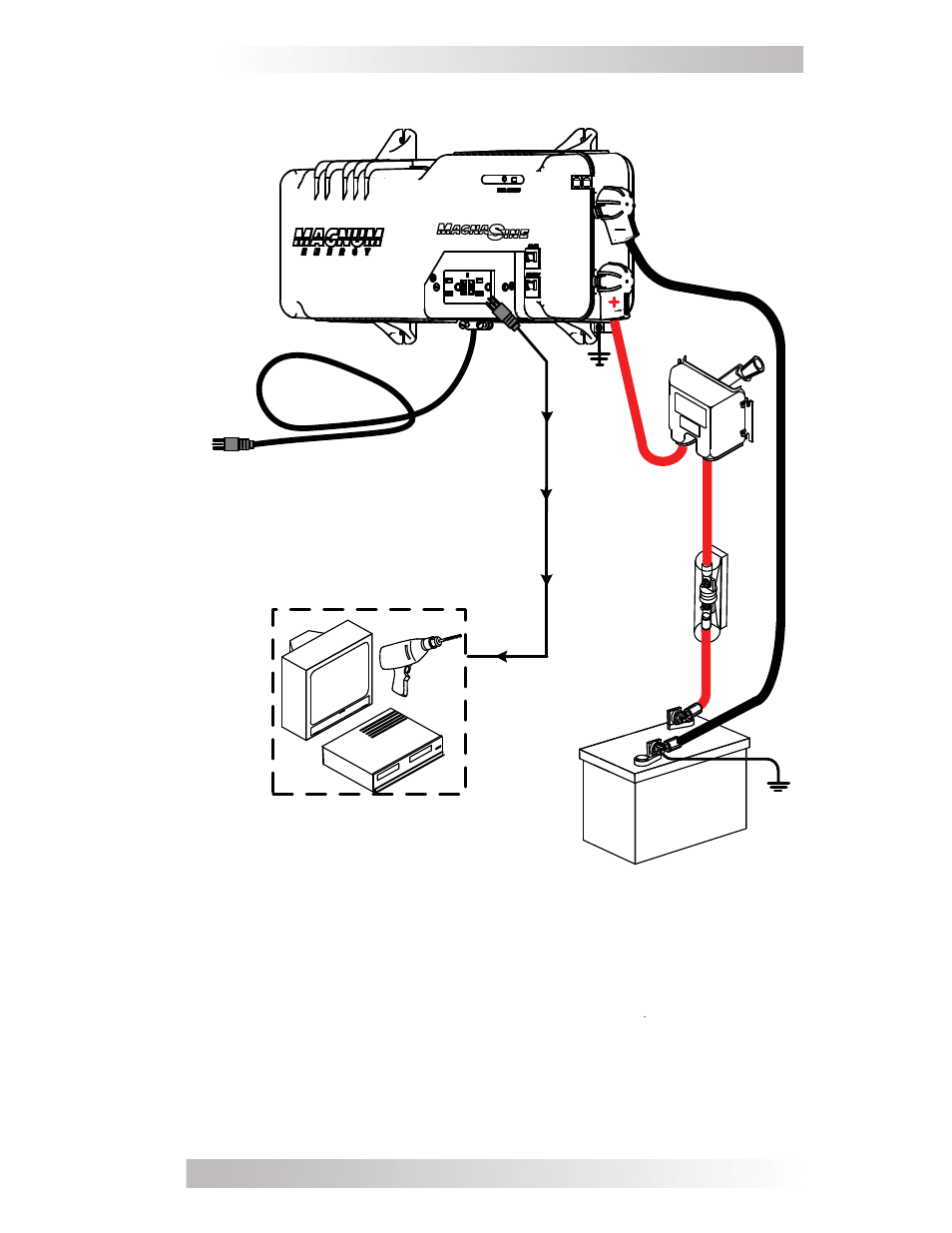

Figure 7, MMS1012-G Model Basic Installation Diagram
DC
disconnect
and
overcurrent
device
Battery
Bank
AC IN
AC Loads
AC
OUT
DC
Ground
VCR
TV
Tools
