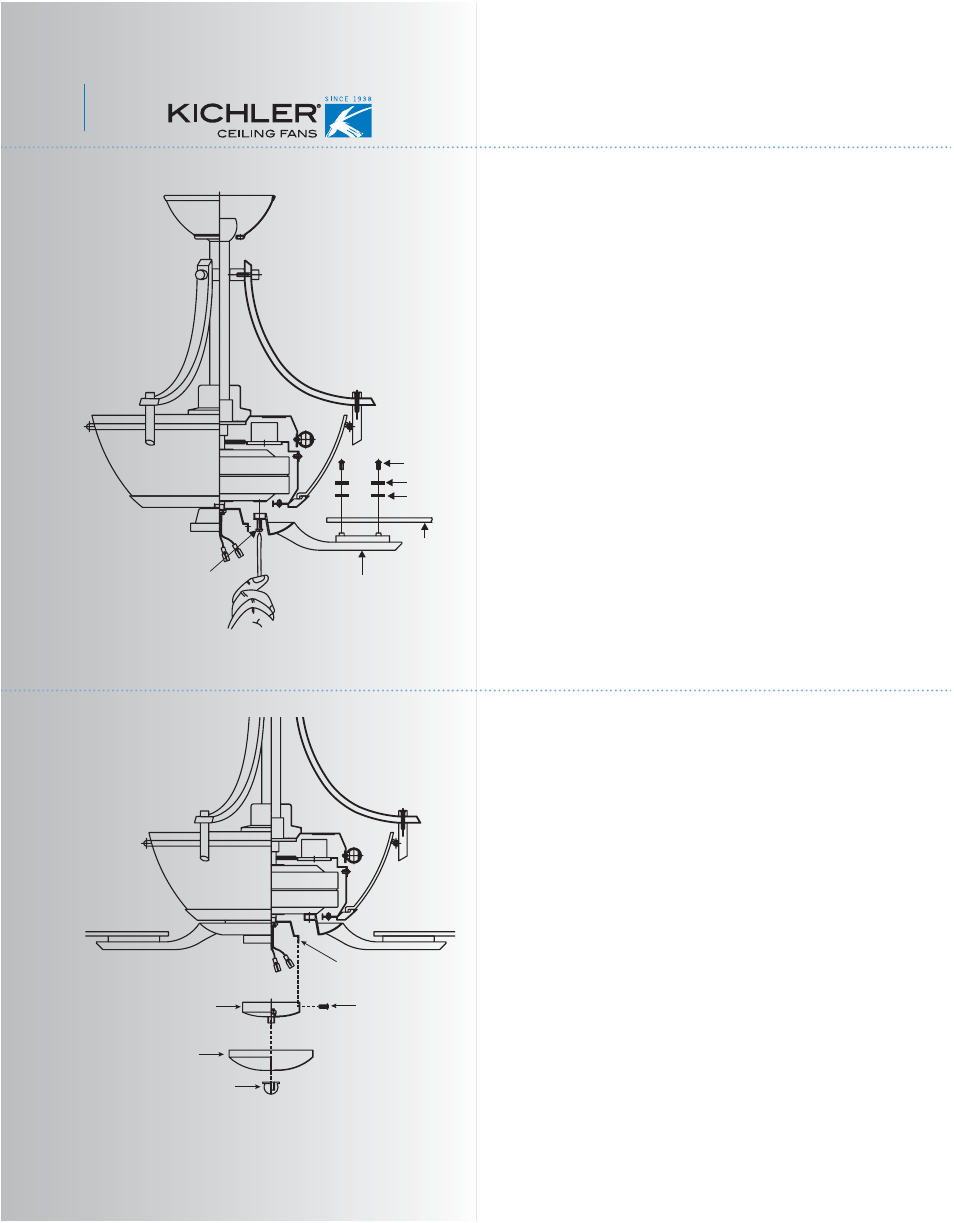

11. ATTACHING THE FAN BLADES
Step 1 Attach the blade to the blade bracket
using the screws, washers and fiber washers
as shown in Figure 19. Start screw into
bracket. Repeat for the two remaining screws.
Step 2 Make sure the blade is straight and
tighten each screw.
Step 3 Fasten blade assembly to motor using
"Pre-Installed" mounting screws in the blade
bracket
12. INSTALLATING THE DECORATIVE
COVER
1. Install the mounting plate to the mounting
ring with 3 screws provided. (Fig. 20)
2. Remove the decorative nut from the
mounting plate. Place the decorative cover to
the mounting plate and secure by tightening
the decorative nut. (Fig. 20)
Blade
Blades bracket
Screws
Washers
Fiber
washers
Screws
Mounting
plate Screws
Decorative
cover
Decorative nut
Mounting ring
