5

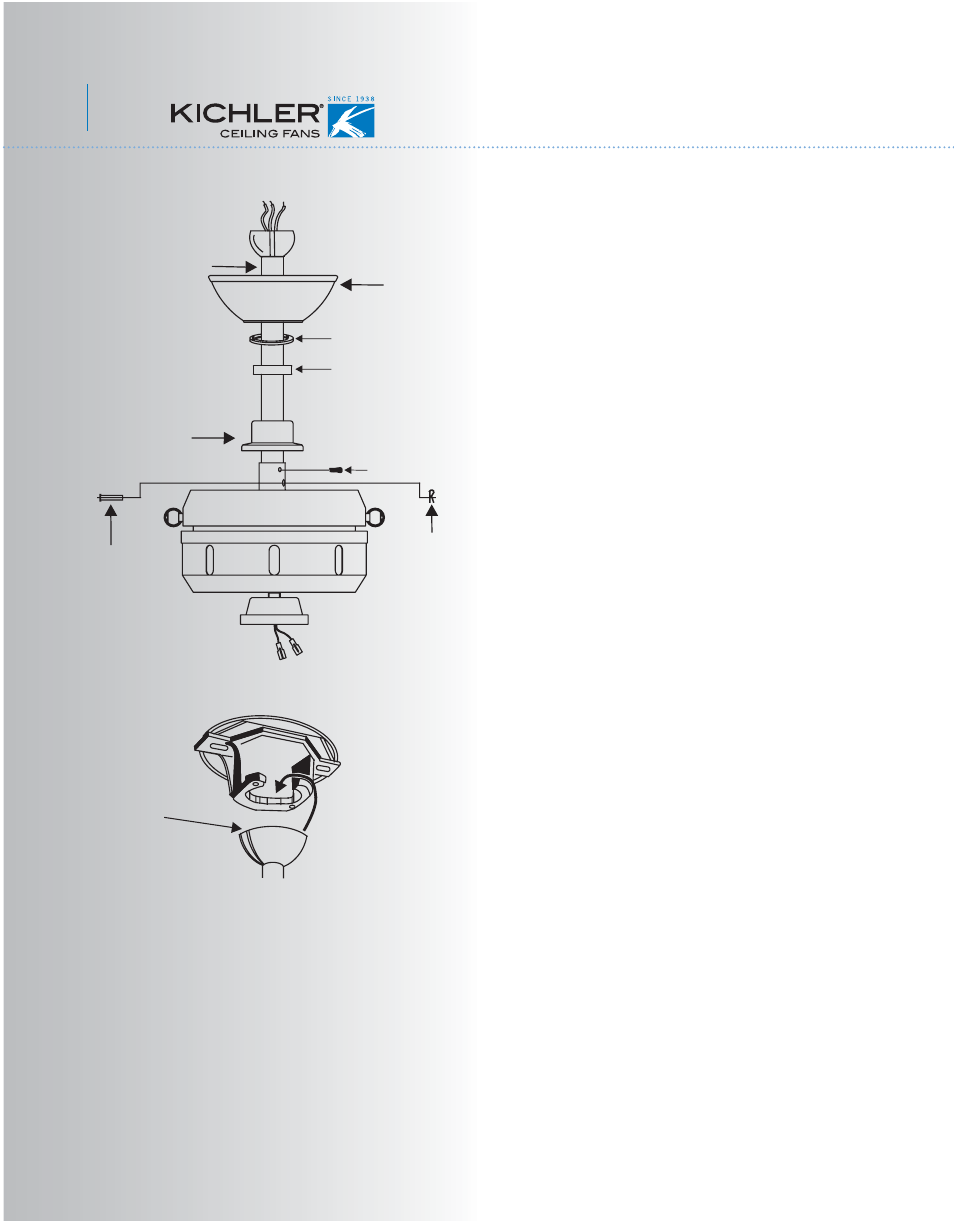

Fig. 11
Fig. 10
Step 7. Slip coupling cover, decorative holder,
canopy cover and canopy onto downrod.
Carefully reinstall hanger ball onto rod being
sure that cross pin is in correct position, the
set screw on hanger ball is tight and wires are
not twisted. (Fig. 10)
Step 8. Now lift the motor assembly into
position and place the hanger ball into the
hanger bracket. Rotate until the "Check Tab"
has dropped into the "Registration Slot" and
seats firmly. (Fig. 11). The entire motor
assembly should not rotate if this is done
correctly.
Downrod
Canopy
Canopy cover
Decorative holder
*Omit decorative holder
when using the
minimum-length
downrod
Set screws
Hitch pin
Lock pin
Coupling cover
Registration slot
