Kichler 300011 - Manual (Page 9)

8
Olympia
TM

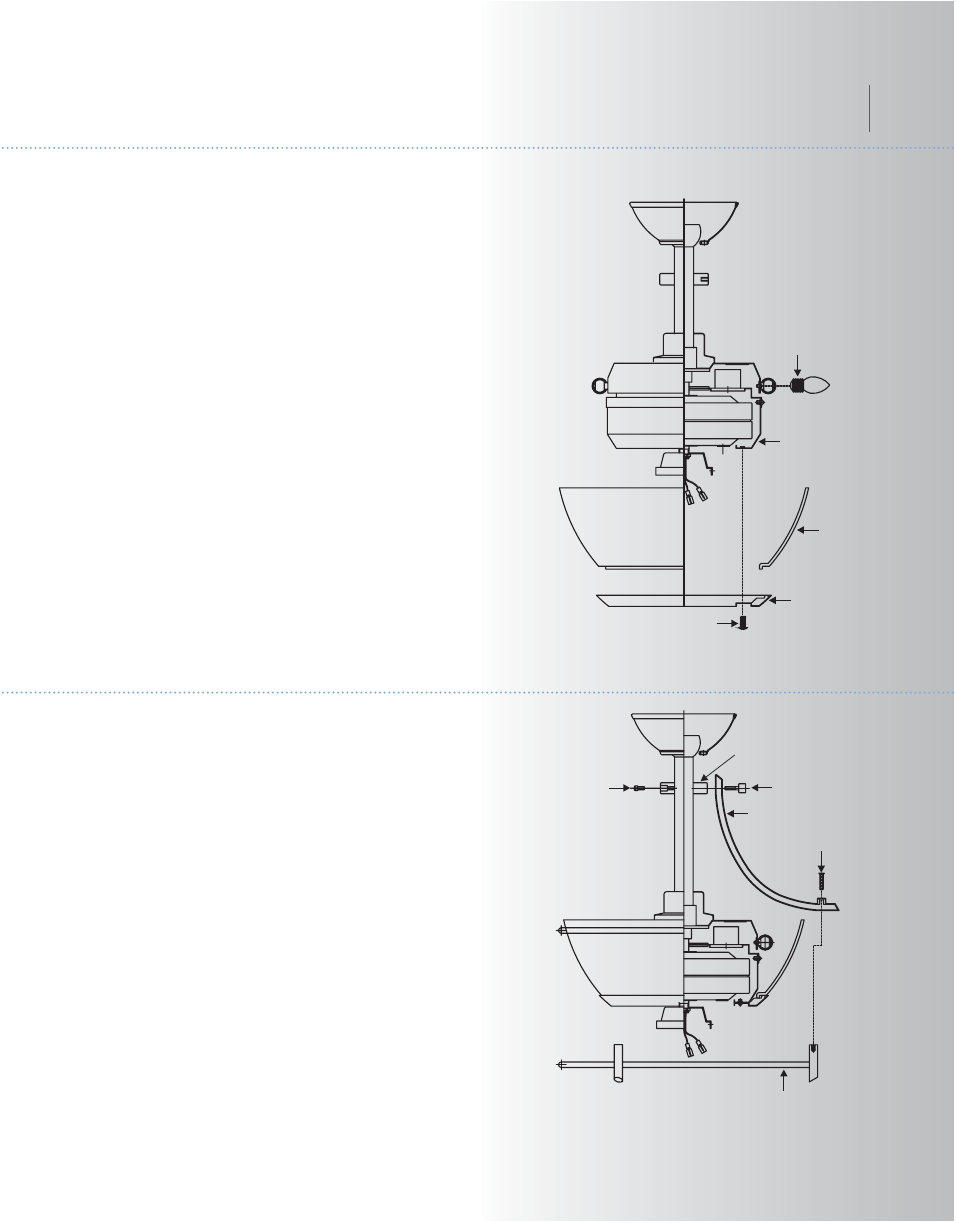

9. ATTACHING THE GLASS HOUSING
Fig. 17
Fig. 18
10. ATTACHING THE DECORATIVE SCROLL
1. Install 6 , 15W candelabra bulbs (included).
2. Remove 1 of the 4 screws from the bottom
of the motor housing and loosen the other 3
screws (Do not remove). (Fig. 17)
3. Raise and hold the glass housing close to
the motor, place the key holes on the glass
housing plate over the 3 screws previously
loosened from the motor housing, turn glass
housing plate until it locks in place at the
narrow section of the key holes. Secure by
tightening the 3 screws previously loosened
and the one previously removed. (Fig. 17)
1. Remove all of the thumb screws on the
decorative scroll holder. Place one of the
decorative scroll arms on the decorative scroll
holder and replace the thumb screw. Repeat
this procedure for each of the decorative scroll
arms. (Fig. 18).
2. Remove all the screws on the decorative
scroll ring. Place on of the decorative scroll
arms on the decorative ring and replace the
screw. Repeat this procedure for each of the
decorative scroll arms. (Fig. 18).
3. Adjust the height of the complete
decorative scroll assembly until the bottom
decorative ring is just below (1 inch) the top of
the housing glass and then tighten the set
screws on the decorative scroll holder.
(Fig.18).
Screws
Bulbs
Glass
housing
Glass housing
plate
Motor housing
Screws
Thumb screws Set screws
Decorative scroll ring
Decorative
scroll arms
Decorative scroll holder
