Medal Sports BJ1355407 - Manual (Page 10)

9
FIG. 6
FIG. 7
16.
17.

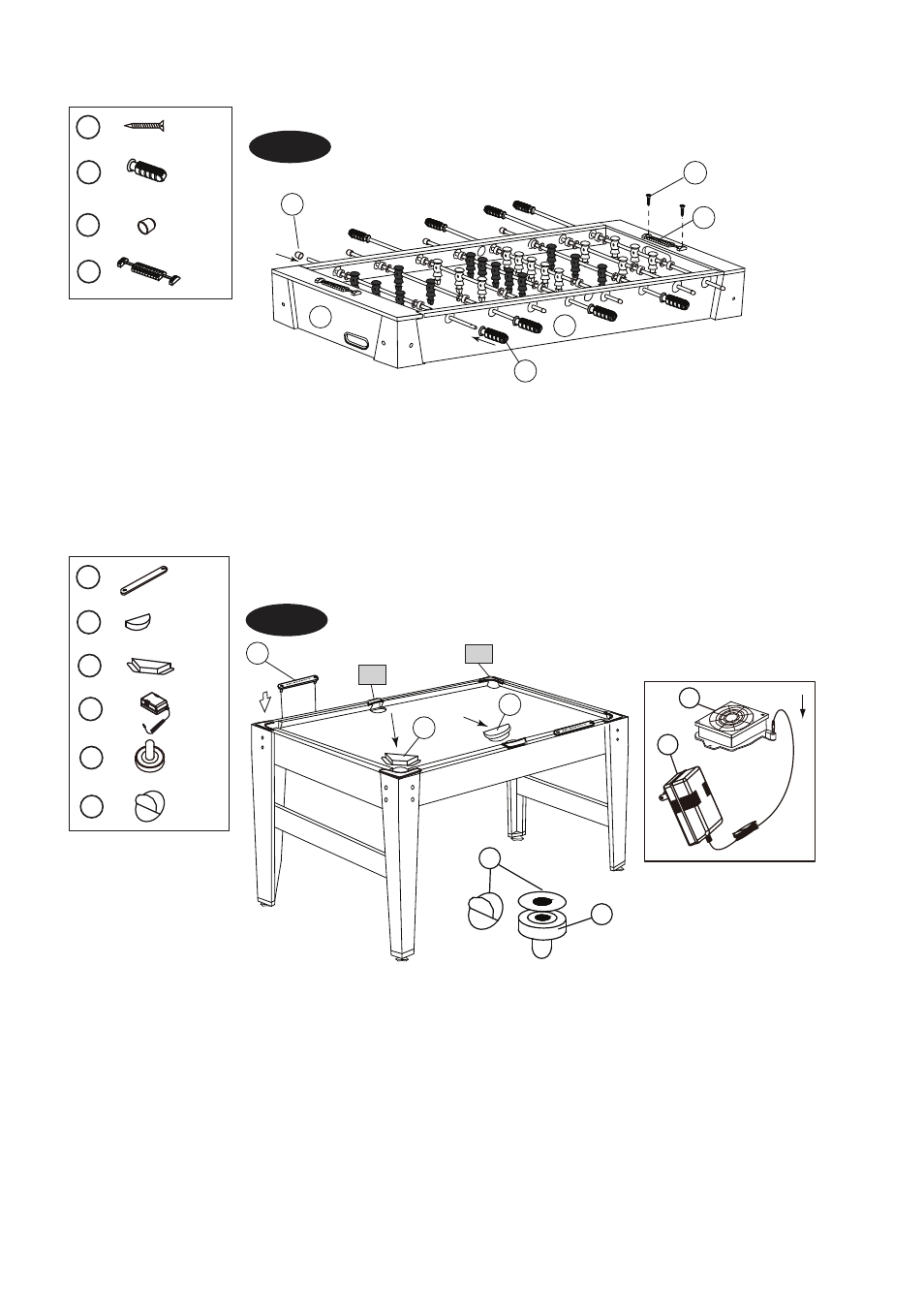

Attach the Soccer Scorers (#15) to the Soccer End Aprons (#2) using two Screws (#A10) per Scorer.
Place the Handles (#25) onto the Rods top which has a hole. And then place the Rod End Caps (#24)
onto the other side of the Rods.
X 8
X 8 24
X 2 15
X 4 A10
25
15
25
24
A10
1
2
X 2
X 4 12
X 2
26
X 2 28
X 2 16
13
X 1 39
FIG.6
18.
19.
Place the Side Stop Boards (#13) and the Corner Stop Boards (#12) in the place. Then insert the
Scorers (#16).
Tear off the backside paper of the Felt Pad (#28) and stick them at the bottom of the Pushers (#26).
And insert the Adaptor (#39) into the DC Jack on the Motor(#40).
FIG.7
This power unit is intended to
be correctly orientated in a
vertical or floor mount position.
39
40
13
12
28
26
16
