7

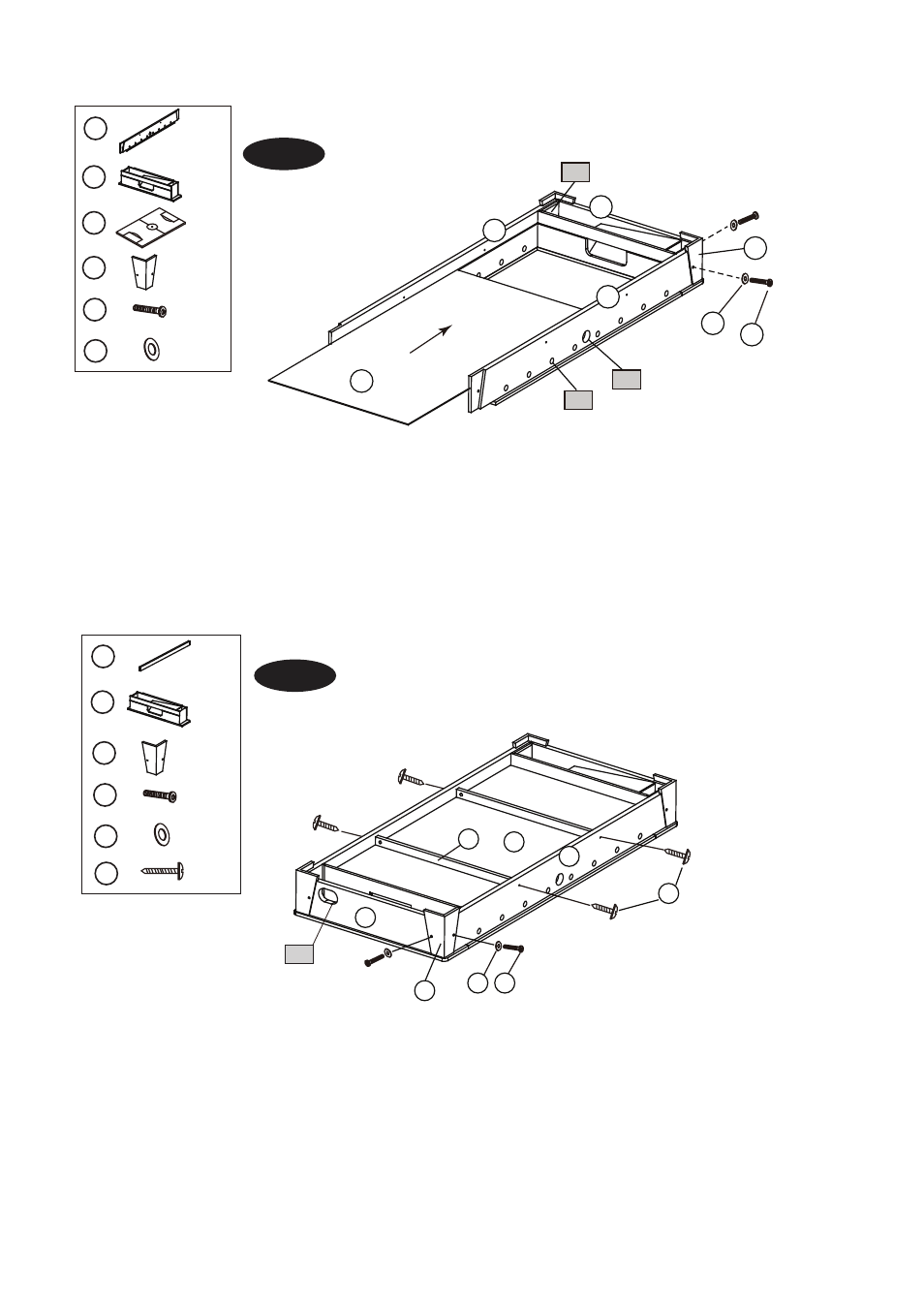

FIG.3
8.
9.
Attach two Apron Corners (#4) to the Side Aprons (#1) and End Aprons (#2) using two Bolts (#A2)
and two Washers (#A3) per Apron Corner.
Note: Do not tighten the Bolts at this time.
Slide the Playfield (#3) (drawing upside-down) into the grooves of the Side and End Aprons (#1 & #2).
FIG.4
10.
11.
Attach the Apron Corners (#4) to the other side of the End Aprons (#2) and Side Aprons (#1) using four
Bolts (#A2) and four Washers (#A3).
Place the Support Braces (#5) on the Playfield (#3), and then attach them to the Side Aprons (#1)
using two Screws (#A8) per Support Brace.
Go back and make sure that all connections are tight.
FIG. 3
1
1
2
4
A2
A3
3
P1
P2
P4
X 1
X 1
X 2
X 2
1
2
3
4
X 4
A2
X 4
A3
FIG. 4
A8
5
3
2
4
A3 A2
X 1
X 2
2
4
X 4
A2
X 4
A3
A8
X 4
X 2
5
1
P5
