9

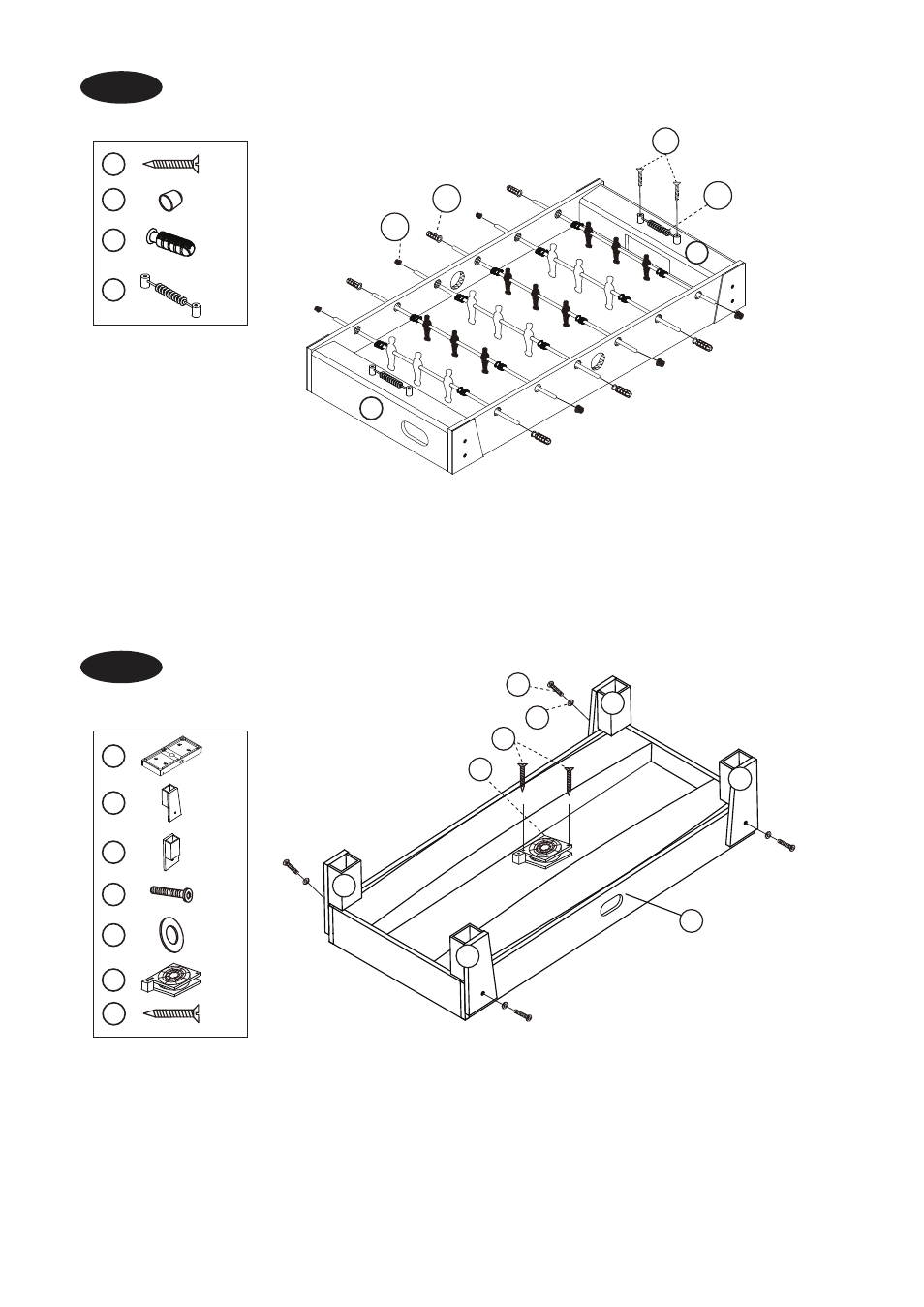

FIG. 6
FIG.6
9. Attach the Slide Scorers (#22) to the top of the End Aprons (#2) using two Screws (#11) per Scorer.
10. Place the Handles (#20) onto the Player Rods with a hole at their end. And then place the Rod End Caps
(#19) onto the other side of the Player Rods.
FIG.7
11. Place the Billiard/Hockey Cabinet (#5) face down on a clean and flat surface. Attach the Left Legs (#6) and
the Right Legs (#7) to the Cabinet (#5) using one Bolts (#8) and one Washers (#9) per Leg.
12. Attach the motor (#36) to the Billiard/Hockey Cabinet (#5) using two Screw (#10).
See FIG. 7.
X 6
X 4
19
20
11
22
X 6
X 2
FIG. 7
X 2
X 2
6
X 1
5
7
8
9
X 4
X 4
2
11
19
20
22
2
X 2
10
X 1
36
8
9
7
6
7
5
6
36
10
