7

FIG.3

FIG. 3

FIG. 4

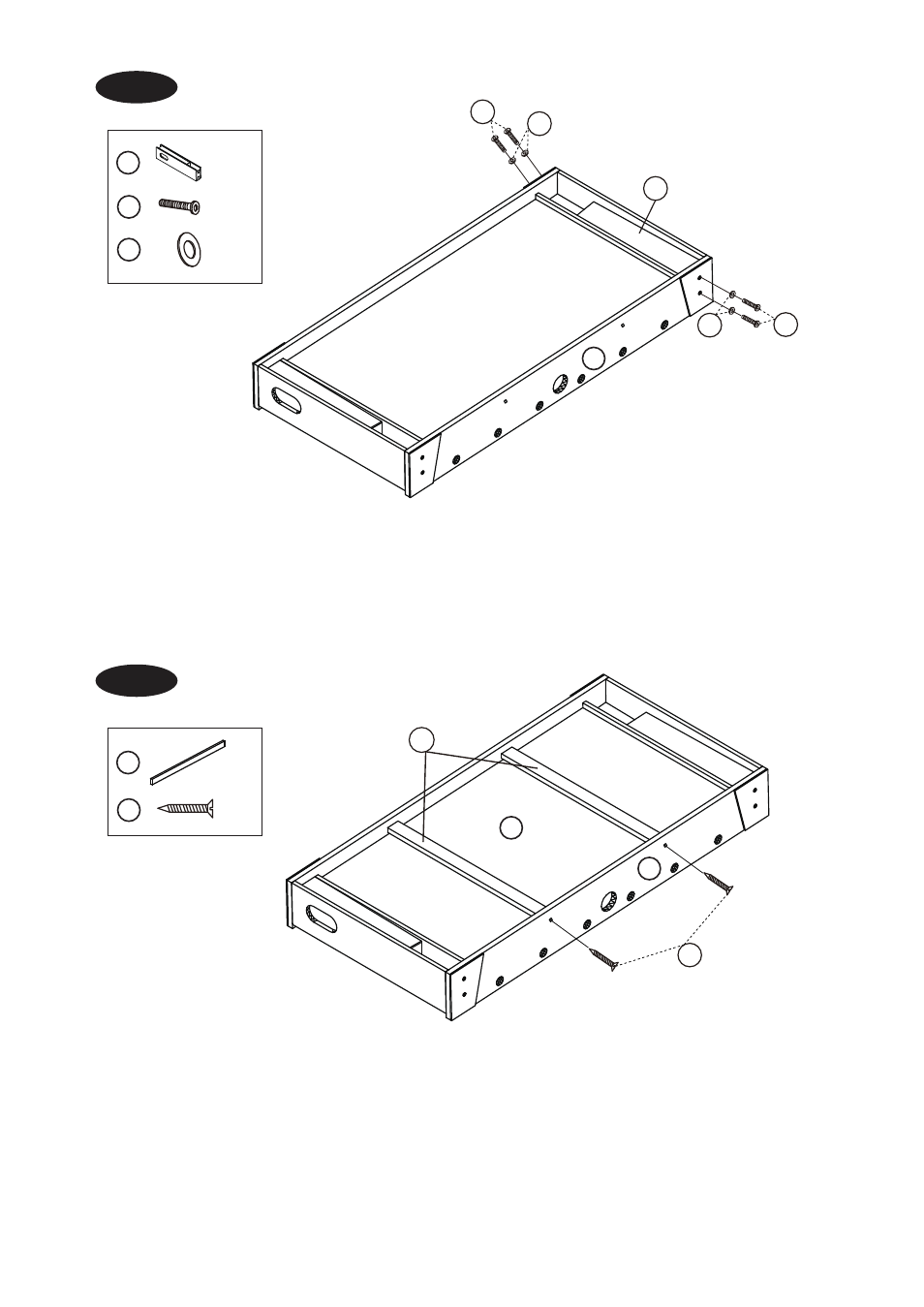

5. Attach the other End Aprons (#2) to the Side Apron (#1) using four Bolts (#8) and four Washer (#9) as

shown in Fig. 3.

Note: Do not tighten the Bolts at this time.

FIG.4

6. Place the Support Brace (#4) on the Playfield (#3), and then attach it to the Side Apron (#1) using four

Screws (#10).

See FIG. 4.

X 1

2

X 4

8

X 4

9

X 2

4

X 4

10

1

8

9

8

9

2

1

3

1

0

4
