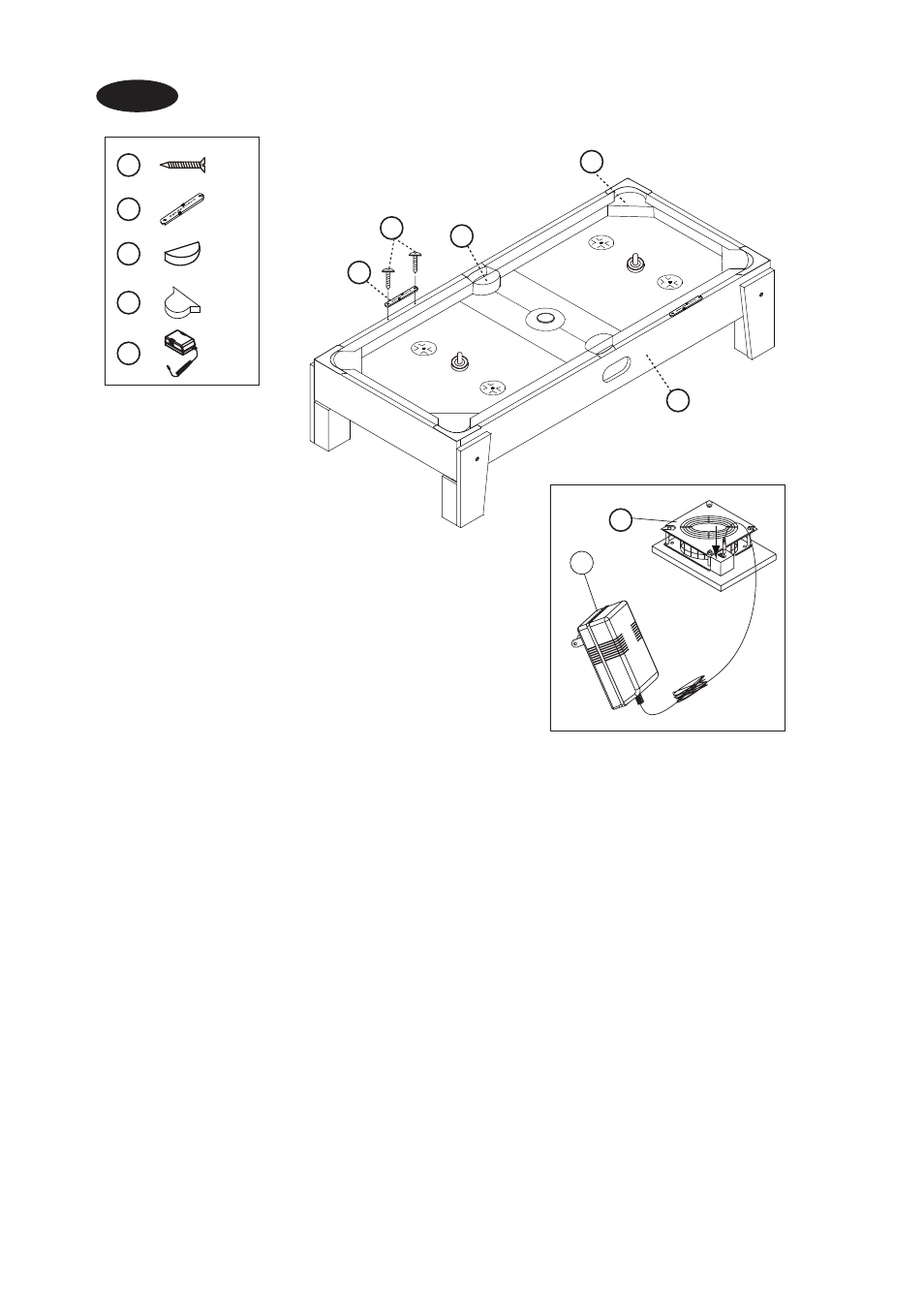

FIG.8
13. Attach the Scorers (#23) to the top of the Billiard/Hockey Cabinet (#5) using two Screws (#11) per Scorer.
14. Place the Side Stop Boards (#24) and the End Stop Boards (#25) in the place.
15. Insert the Adaptor (#29) into the DC Jack.
11
5
23
24
25
29
36
FIG. 8
X 2
X 2
X 4
X 4
X 1
29
11
23
24
25
This power unit is intended to be
correctly orientated in a vertical
or floor mount position.
Hockey Game
