ORION XTENDER INSTALLATION AND OPERATIONS MANUAL 12

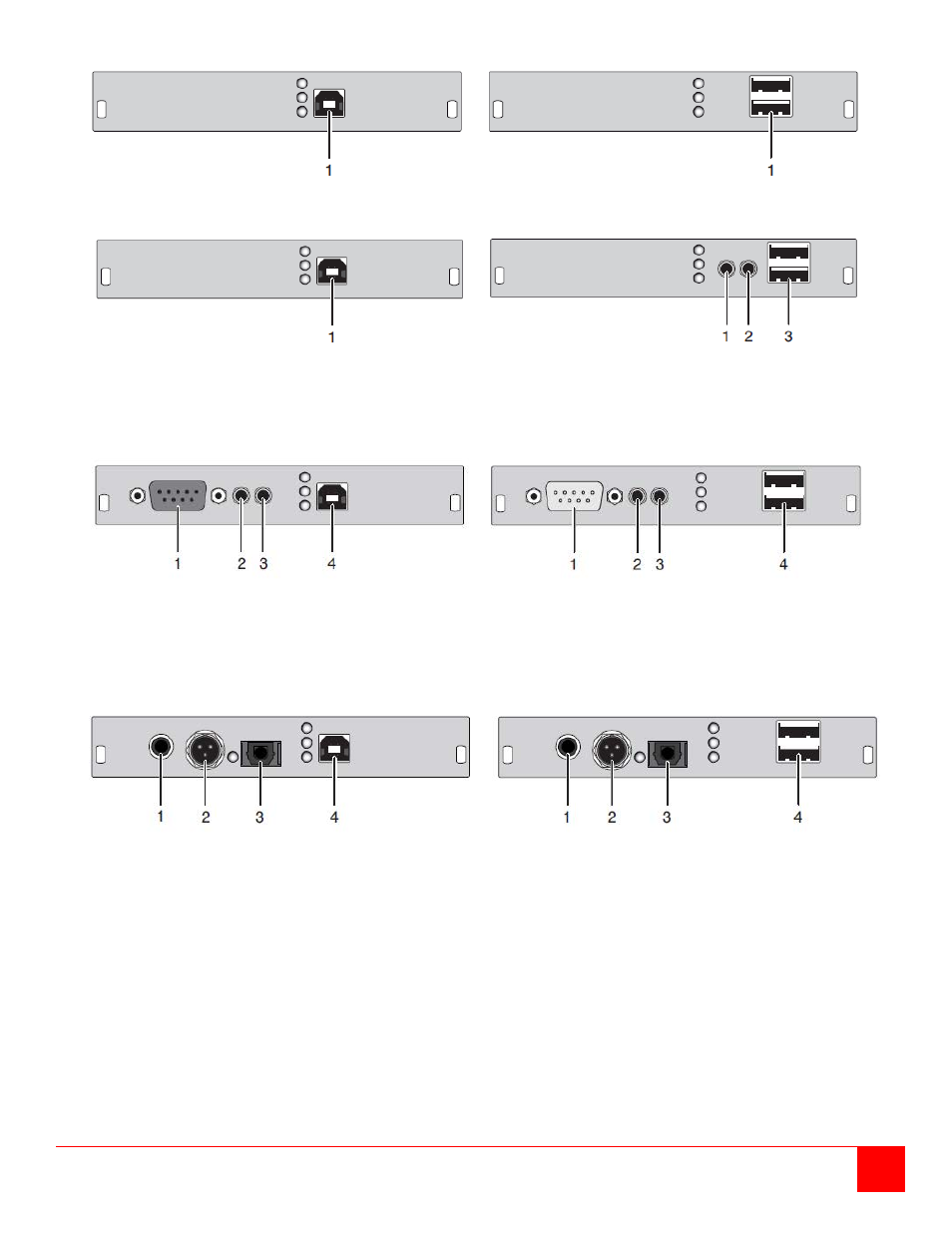

` 1 To CPU: USB 2.0 1 To USB 2.0 devices
1 To CPU: USB 2.0 1 Audio IN
2 Audio OUT
3 To USB 2.0 devices
1 To serial (D-Sub 9) 1 To serial (D-Sub 9)
2 Audio IN 2 Audio IN
3 Audio OUT 3 Audio OUT
4 To CPU: USB 2.0 4 To USB 2.0 devices
1 S/PDIF input (RCA) 1 S/PDIF output (RCA)
2 AES/EBU input (Mini-XLR) 2 AES/EBU output (Mini-XLR)
3 S/PDIF input (TOSLINK) 3 S/PDIF output (TOSLINK)
4 To CPU: USB 2.0 4 To USB 2.0 devices
.
