21 ORION XTENDER INSTALLATION AND OPERATIONS MANUAL

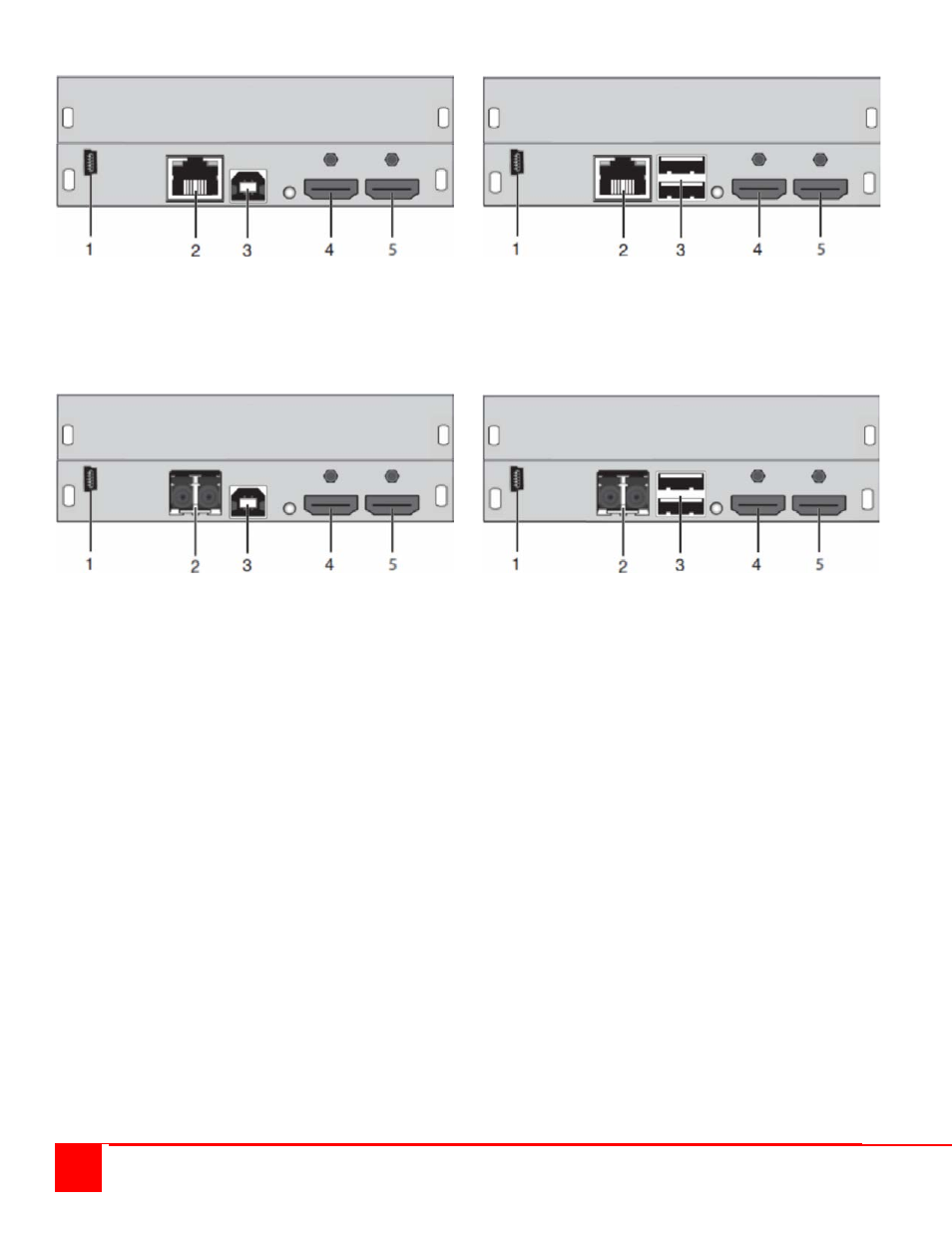

1 Service port
1 Service port
2 CATx port 1 2 CATx port 1
3 CPU: USB-HID 3 CATx port 2
4 CPU: HDMI 1 4 HDMI 1
5 CPU: HDMI 2 5 HDMI 2
1 Service port 1 Service port
2 Fiber port 1 2 Fiber port 1
3 CPU: USB-HID 3 USB-HID
4 CPU: HDMI 1 4 HDMI 1
5 CPU: HDMI 2 5 HDMI 2
