KLN Series 051614
3-21
3.3.32 SET/VIEW 4TH PART OF GATEWAY ADDRESS (LAN INTERFACE ONLY)
Used to set (DHCP function is OFF) or view (DHCP is ON) part 4 (nnn) of the 4-part Gateway
address (xxx.xxx.xxx.nnn) where nnn is a number from 1 to 254.

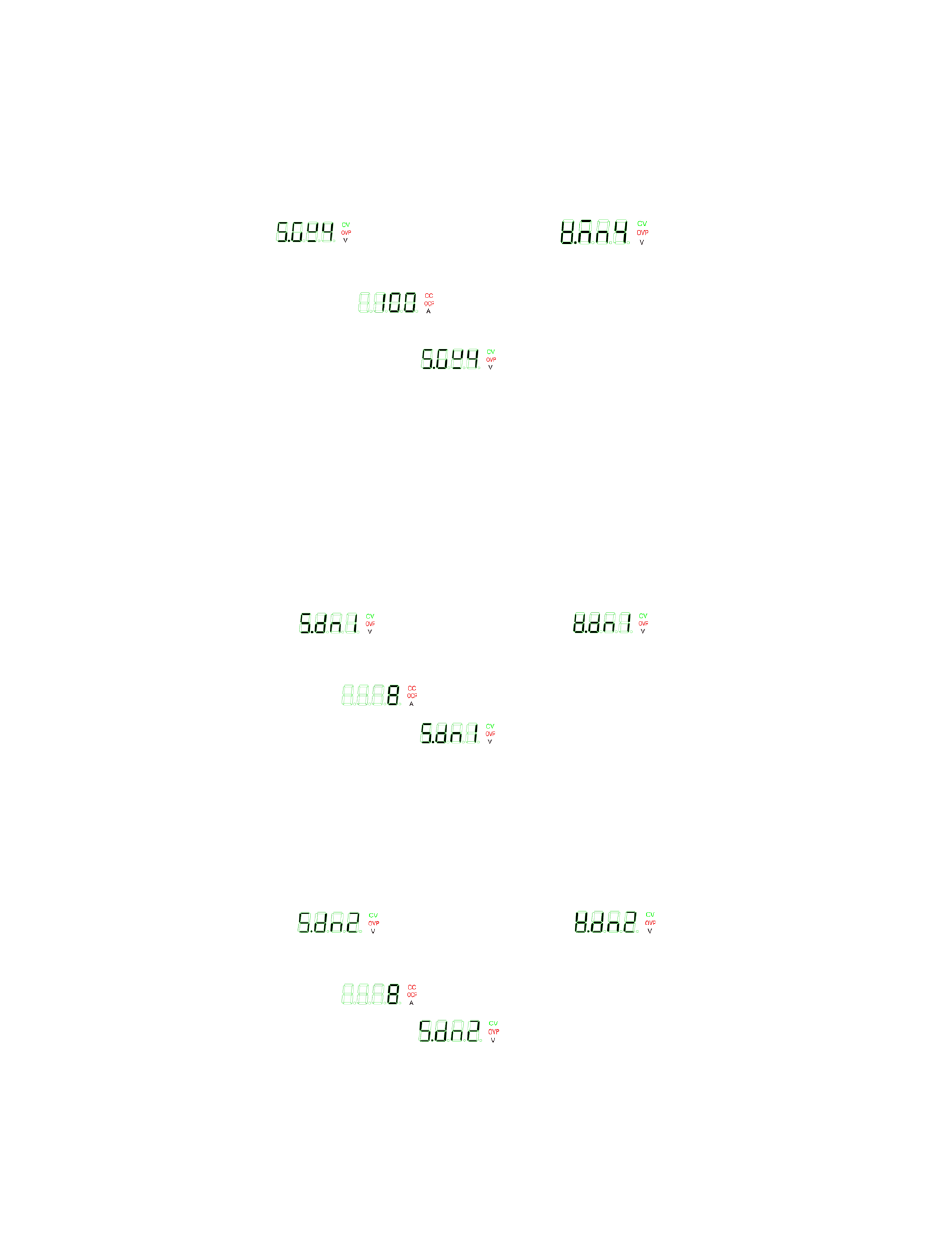

Enter the menu (see PAR. 3.2.2 and Table 3-3) and rotate the encoder until Voltage display
shows
(S.GW4) if DHCP is OFF or (V.GW4) if DHCP is ON.
1. Press ENTER key to view setting.
For example, (100) displayed in Current display for gateway address
xxx.xxx.xxx.100.
2. If Voltage display shows (S.MN4), set by rotating encoder until Current display
shows desired setting (tap encoder to adjust 10’s or 100’s digit more rapidly). Press ENTER
to confirm.
3.3.33 SET/VIEW 1ST PART OF DNS ADDRESS (LAN INTERFACE ONLY)
Used to set (DNS function is OFF) or view (DNS is ON) part 1 (nnn) of the 4-part DNS address
(nnn.xxx.xxx.xxx) where nnn is a number from 1 to 223. The default DNS address is 8.8.8.8.
Refer to PAR. 3.3.20 to set DNS on/off. When setting the DNS address, verify that all four parts
of the address are set correctly (see PARs. 3.3.30 through 3.3.31). Figure 3-5 shows the com-
mands used to set/view addresses depending on whether DHCP and DNS functions are on or
off.
1. Enter the menu (see PAR. 3.2.2 and Table 3-3) and rotate the encoder until Voltage display
shows (S.DN1) if DNS is OFF or (V.DN1) if DNS is ON.
2. Press ENTER key to view setting.
For example, (8) displayed in Current display for DNS address 8.xxx.xxx.xxx.
3. If Voltage display shows (S.GW1), set by rotating encoder until Current display
shows desired setting (tap encoder to adjust 10’s or 100’s digit more rapidly). Press ENTER
to confirm.
3.3.34 SET/VIEW 2ND PART OF DNS ADDRESS (LAN INTERFACE ONLY)
Used to set (DNS function is OFF) or view (DNS is ON) part 2 (nnn) of the 4-part DNS address
(xxx.nnn.xxx.xxx) where nnn is a number from 1 to 254.
1. Enter the menu (see PAR. 3.2.2 and Table 3-3) and rotate the encoder until Voltage display
shows (S.DN2) if DNS is OFF or (V.DN2) if DNS is ON.
2. Press ENTER key to view setting.
For example, (8) displayed in Current display for DNS address xxx.8.xxx.xxx.
3. If Voltage display shows (S.DN2), set by rotating encoder until Current display
shows desired setting (tap encoder to adjust 10’s or 100’s digit more rapidly). Press ENTER
to confirm.
