MVI69-FLN ♦ CompactLogix Platform Reference
FA Control Network Communication Module
Page 102 of 137 ProSoft Technology, Inc.
November 3, 2008

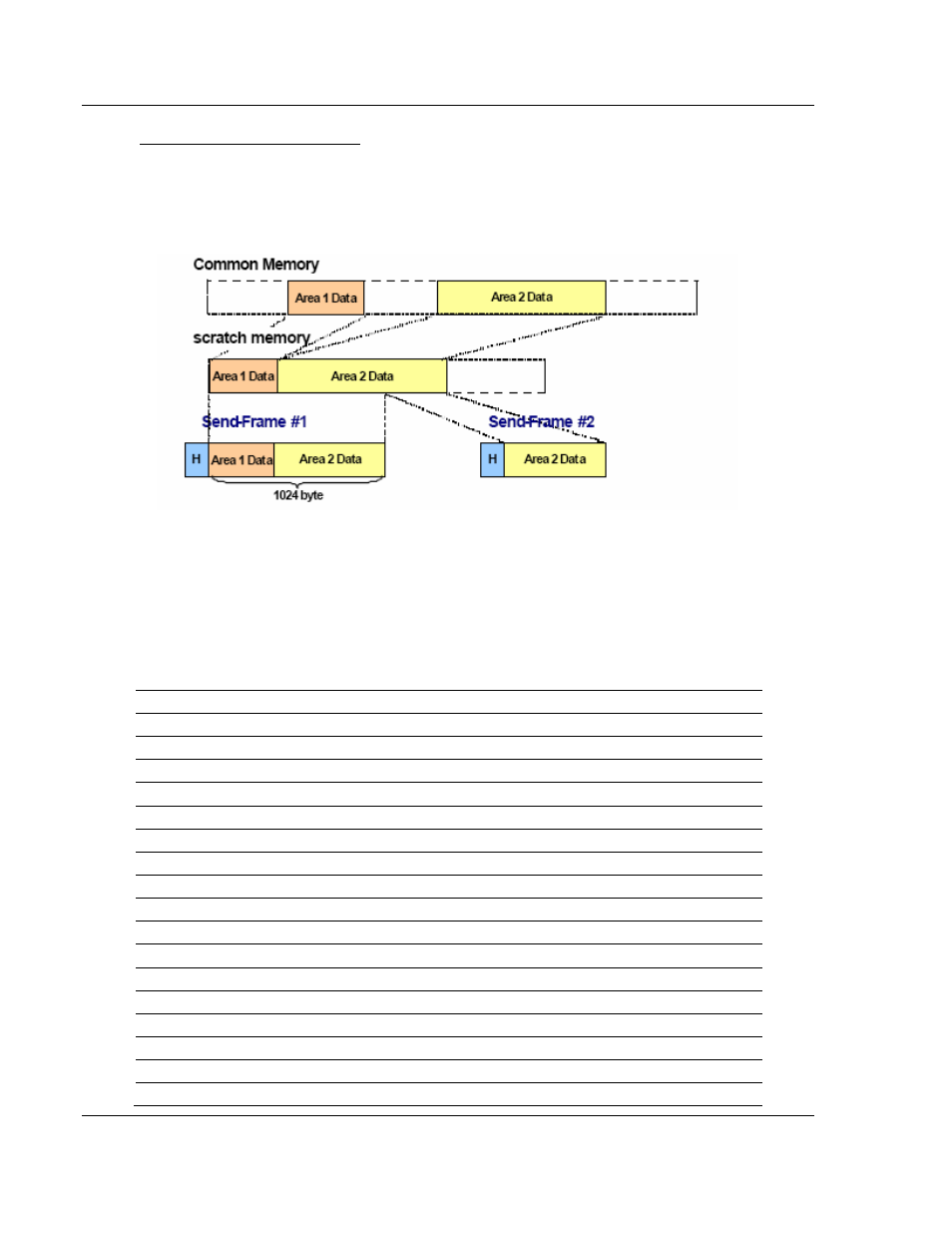

Multiple frames of cyclic data
ƒ Multiple frames may be used if the transmitting area size exceeds the frame
data size that is 1024 byte.
ƒ A node receiving multiple frames, the node shall update the area after
receiving all frames from sending node.
3.5.2 Data Frame ID of FL-net
When review the network with an analyzer such as Ethereal the user can
examine the protocol frames and use The following table to determine the
transaction type.
Data Frame ID: Transaction Code
Transaction Code Application
0 to 59999 Transparent mode message frame
60000 to 64999 Reserved
65000 Cyclic frame (with token)
65001 Cyclic frame (without token)
65002 Participation request frame
65003 Byte block read frame (request)
65004 Byte block write frame (request)
65005 Word block read frame (request)
65006 Word block write frame (request)
65007 Network parameter read frame (request)
65008 Network parameter write frame (request)
65009 Stop command frame (request)
65010 Start command frame (request)
65011 Profile read frame (request)
65012 Trigger frame
65013 Log data read frame (request)
65014 Log data clear frame (request)
