Connecting External Equipment
Connecting Source Equipment
Regardless of the input resolution of the source device, internal processing by the V-4EX is carried out at 480p (when set to NTSC) or 576p (when set
to PAL).
Almost all equipment capable of HDMI output supports 480/59.94p or 576/50p and can be connected to INPUT 1 through 3 on the V-4EX, but some
devices do not support. If the video from such a source device cannot be input correctly via INPUT 1 through 3, connect the device to INPUT 4.
Connecting Video Source Equipment
Making HDMI Connections
Connect video cameras or other devices capable of HDMI output to the [HDMI] connector at INPUT 1 through 4.

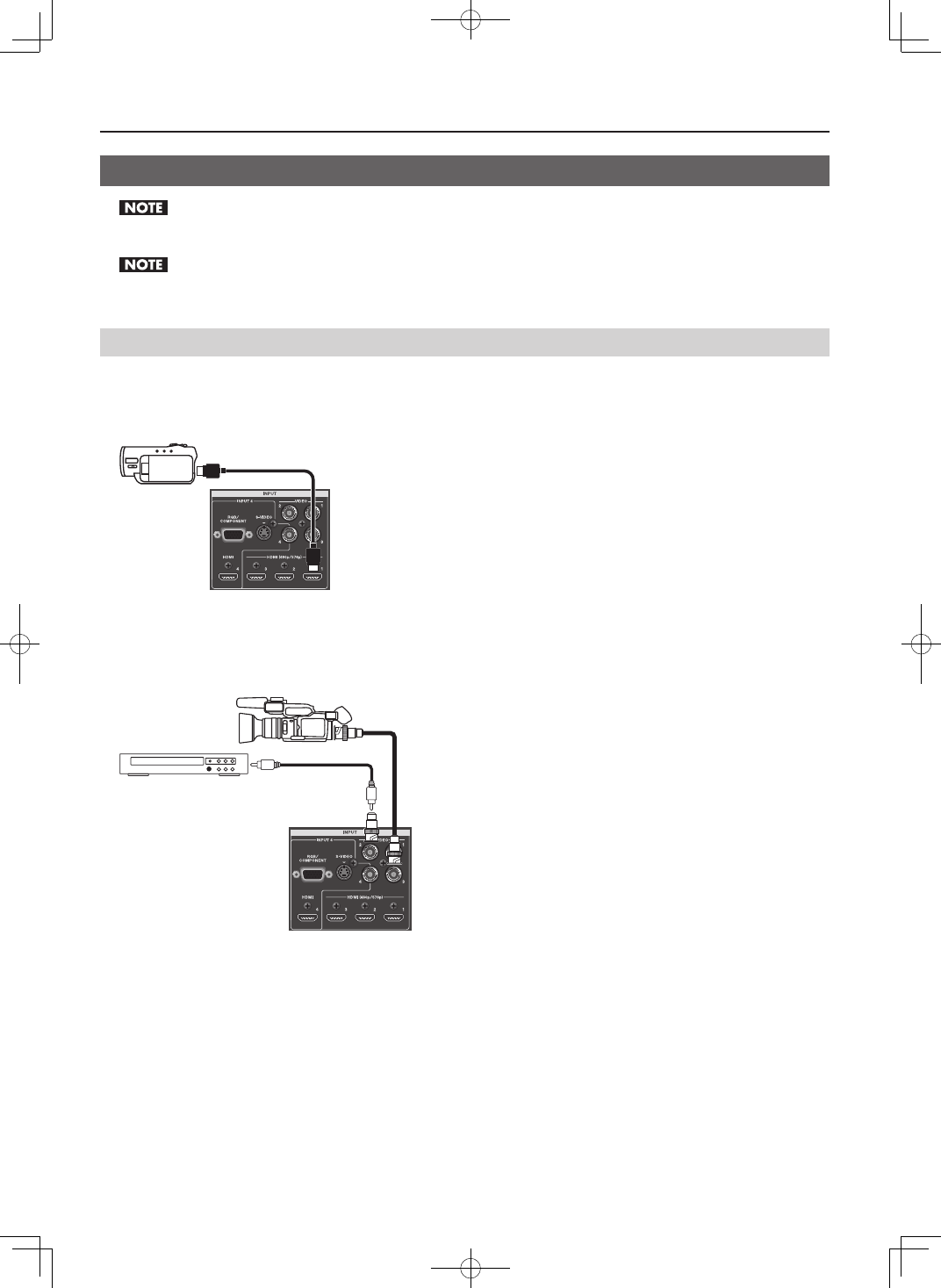

fig.HDMI-connection.eps
Making Composite Connections
Connect video cameras, DVD players, or other devices capable of composite output to the [VIDEO] connectors at INPUT 1 through 4.
* When connecting equipment that has RCA pin type output connectors, use the included RCA-BNC conversion plug.
fig.composite-connection.eps
To connect composite source equipment, the enabled connector must be switched from [HDMI] to [VIDEO]. Refer to the following
“Switching the Enabled Connector” and change the setting.
Making S-Video Connections
You can make an S-Video connection at INPUT 4 only. In the same way as for a composite connection, when making an S-Video
connection, the enabled connector must be switched from [HDMI] to [S-VIDEO]. Refer to the following “Switching the Enabled
Connector” and change the setting.
