1.6. Operating Instructions of Edge Alignment Kit
1.6.1. Installing the Edge Alignment Kit
• Before installing the edge alignment kit, the display must be mounted to the frame of video wall correctly.
• We recommend you contact a professional technician when installing the edge alignment kit. We are not responsible for
any damage to the product if the installation is not performed by a professional technician.

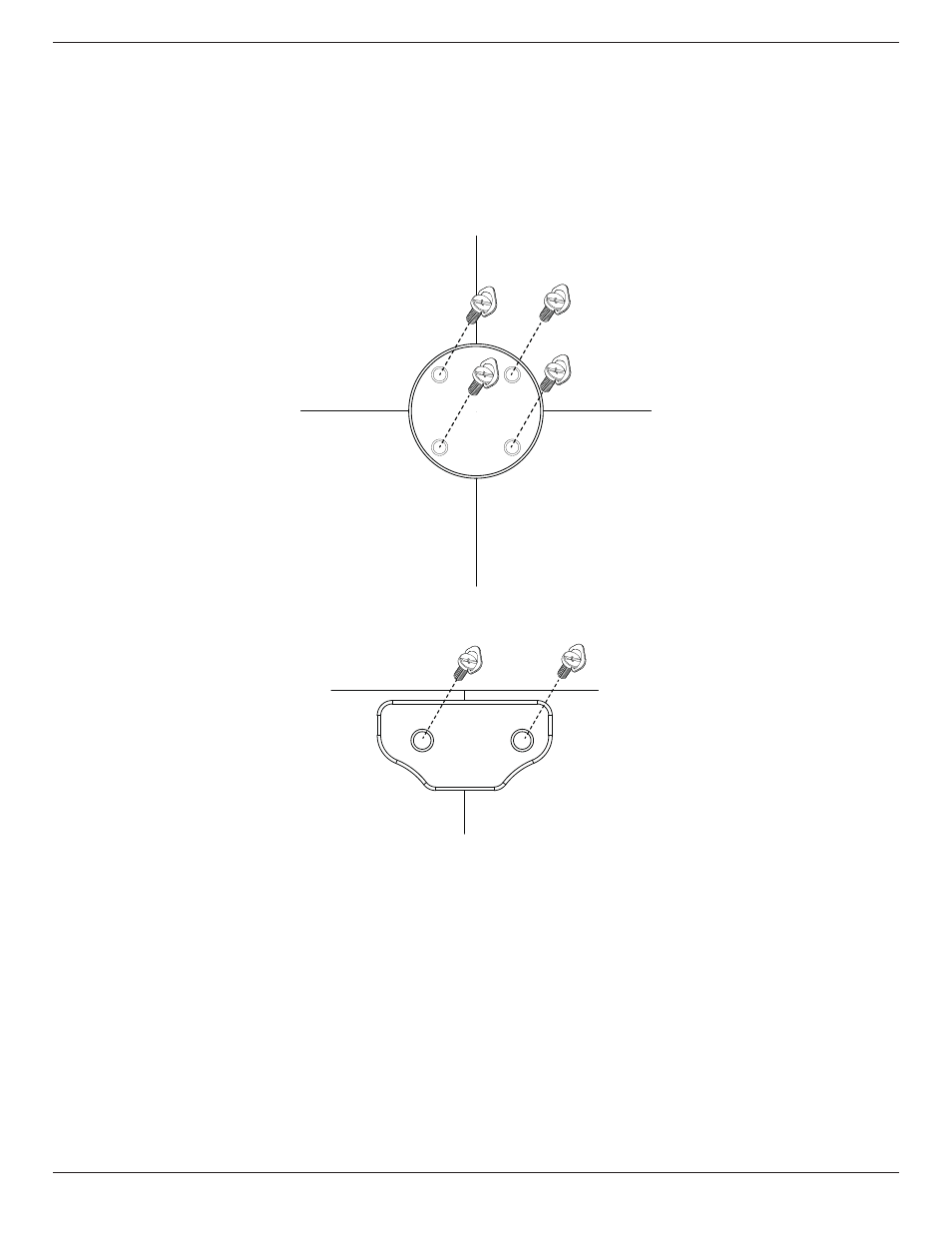

• Use the provided thumb screw for an easy installation of the edge alignment kit.
• Use the “Edge Alignment Kit-1” for four adjacent displays.
Display 1 Display 2
Display 3 Display 4
• Use the “Edge Alignment Kit-2” for two adjacent displays.
Display 1 Display 2
